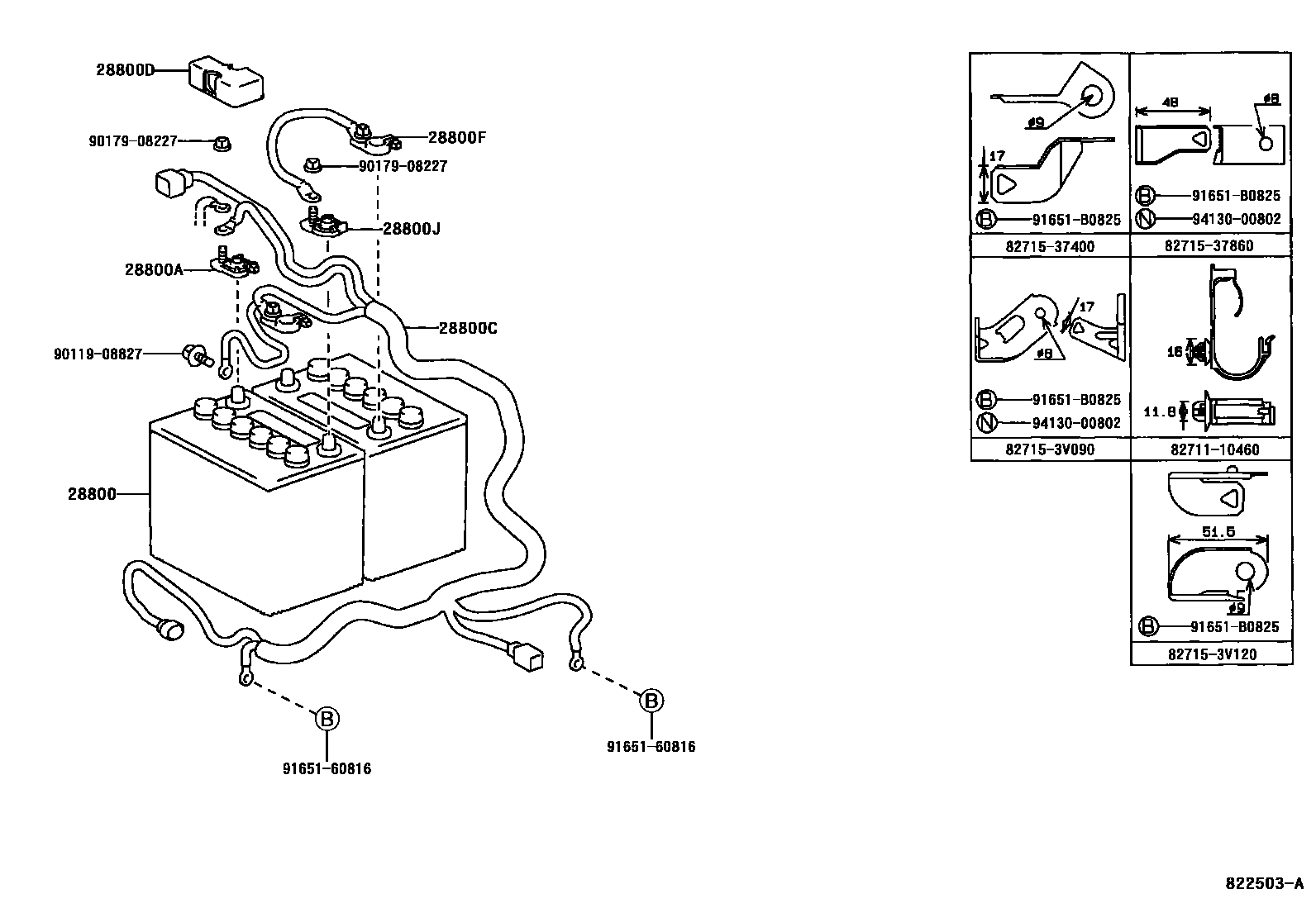

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42040iJ05C,S05#..XZU402,41#,420,430200010-200206

55D23L

main28800-54020iS05#..XZU411,412200010-200206

80D26L

main28800-64180iJ05C,S05#..XZU402,41#,420,430200010-200206

95D31L

28800ATERMINAL, BATTERY POSITIVE

main90982-05042iJ05C,S05#..XZU402,41#,420,430200010-200206

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-37380iJ05C,S05#..XZU402,41#,420,430200010-200206

STARTER=TYPE A:FIG 19-04

main82122-37400iS05#..XZU411,412200010-200206

STARTER=TYPE B:FIG 19-04

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-37071iJ05C,S05#..XZU402,41#,420,430200010-200206

28800FCABLE, BATTERY TO BATTERY

main82123-37040iJ05C,S05#..XZU402,41#,420,430200010-200206

28800JTERMINAL, BATTERY NEGATIVE

main90982-06028iJ05C,S05#..XZU402,41#,420,430200010-200206

8271110460WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10460

8271537400BRACKET,WIRING HARNESS CLAMP

main82715-37400

8271537860BRACKET,WIRING HARNESS CLAMP

main82715-37860

827153V090BRACKET,WIRING HARNESS CLAMP

main82715-3V090

827153V120BRACKET,WIRING HARNESS CLAMP

main82715-3V120

9011908827

main90119-08827

9017908227

main90179-08227

9165160816

main91651-60816

91651B0825

main91651-B0825

9413000802

main94130-00802

16 parts on this diagram · 1 diagram in section
