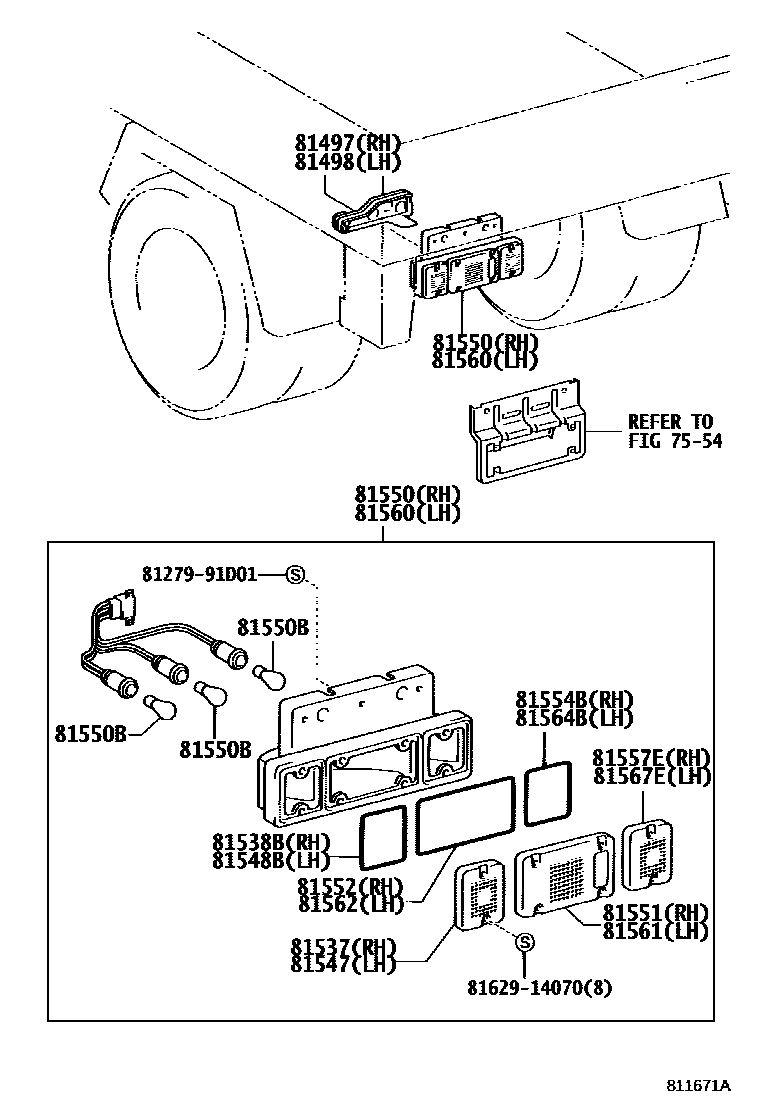

REAR COMBINATION LAMP
7554
81497COVER, REAR COMBINATION LAMP, RH
sub81497-37011
81498COVER, REAR COMBINATION LAMP, LH
sub81498-37011
81537LENS, REAR COMBINATION LAMP, NO.3 RH
81538BGASKET, REAR COMBINATION LAMP, NO.3 RH
81547LENS, REAR COMBINATION LAMP, NO.3 LH
81548BGASKET, REAR COMBINATION LAMP, NO.3 LH
81550LAMP ASSY, REAR COMBINATION, RH
AUSTRALIA SPEC
81550BBULB(FOR REAR COMBINATION LAMP)
24V 25/10W
81551LENS, REAR COMBINATION LAMP, RH
AUSTRALIA SPEC
81552GASKET, REAR COMBINATION LAMP LENS, RH
81554BGASKET, REAR COMBINATION LAMP BODY, NO.2 RH
81557ELENS, REAR COMBINATION LAMP, RH NO.2
81560LAMP ASSY, REAR COMBINATION, LH
AUSTRALIA SPEC
81561LENS, REAR COMBINATION LAMP, LH
AUSTRALIA SPEC
81562GASKET, REAR COMBINATION LAMP LENS, LH
81564BGASKET, REAR COMBINATION LAMP BODY, NO.2 LH
81567ELENS, REAR COMBINATION LAMP, LH NO.2
8127991D01WASHER, SIDE TURN SIGNAL LAMP
main81279-91D01
8162914070
main81629-14070
20 parts on this diagram · 1 diagram in section
