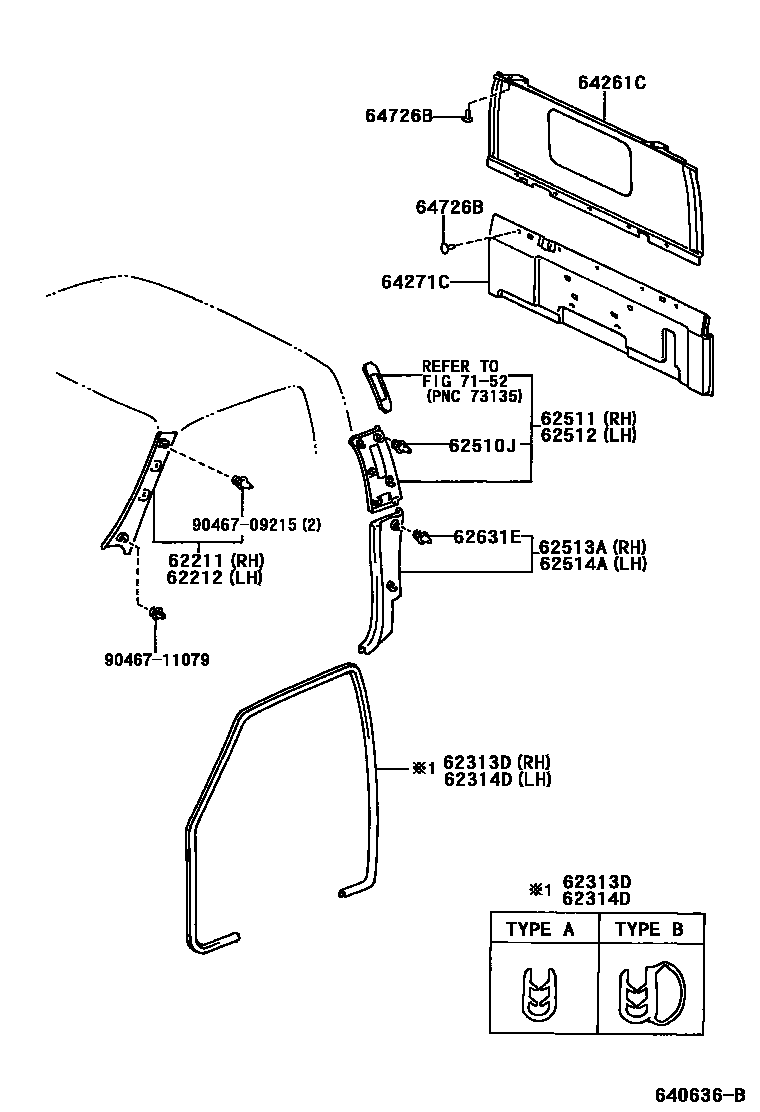

INSIDE TRIM BOARD

62211GARNISH, FRONT PILLAR, RH

main62211-37010-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-37010-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37040-B0iXZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main62313-37050-B0iXZU402,41#,420,430200010-200206

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-37040-B0iXZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main62314-37010-B0iXZU402,41#,420,430200010-200206

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

62510JRETAINER, QUARTER TRIM

main67771-12050×10iXZU402,41#,420,430200010-200206

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-37010-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-37010-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

62513APANEL, QUARTER TRIM, LOWER RH

main62513-37010-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

62514APANEL, QUARTER TRIM, LOWER LH

main62514-37010-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

62631ERETAINER, QUATER TRIM

main67771-12050×4iXZU402,41#,420,430200010-200206

64261CGARNISH, BACK PANEL, UPPER

main64261-37040-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

main64261-37050-B0iXZU402,41#,420,430200010-200206

W(REAR BACK CONSOLE BOX),MD.CHARCOAL,TRIM1#

64271CTRIM, BACK PANEL

main64271-37080-B0iXZU402,41#,420,430200010-200206

MD.CHARCOAL,TRIM1#

main64271-37090-B0iXZU402,41#,420,430200010-200206

W(REAR BACK CONSOLE BOX),MD.CHARCOAL,TRIM1#

64726BCLIP, DECK REAR TRIM

main64726-37010-B0×12iXZU402,41#,420,430200010-200206

MD.CHACOAL,TRIM1#; W(REAR BACK CONSOLE BOX),MD.CHACOAL,TRIM1#

7152SEAT BELT

→ Go to FIG 71-52

9046709215

main90467-09215

9046711079

main90467-11079

16 parts on this diagram · 1 diagram in section
