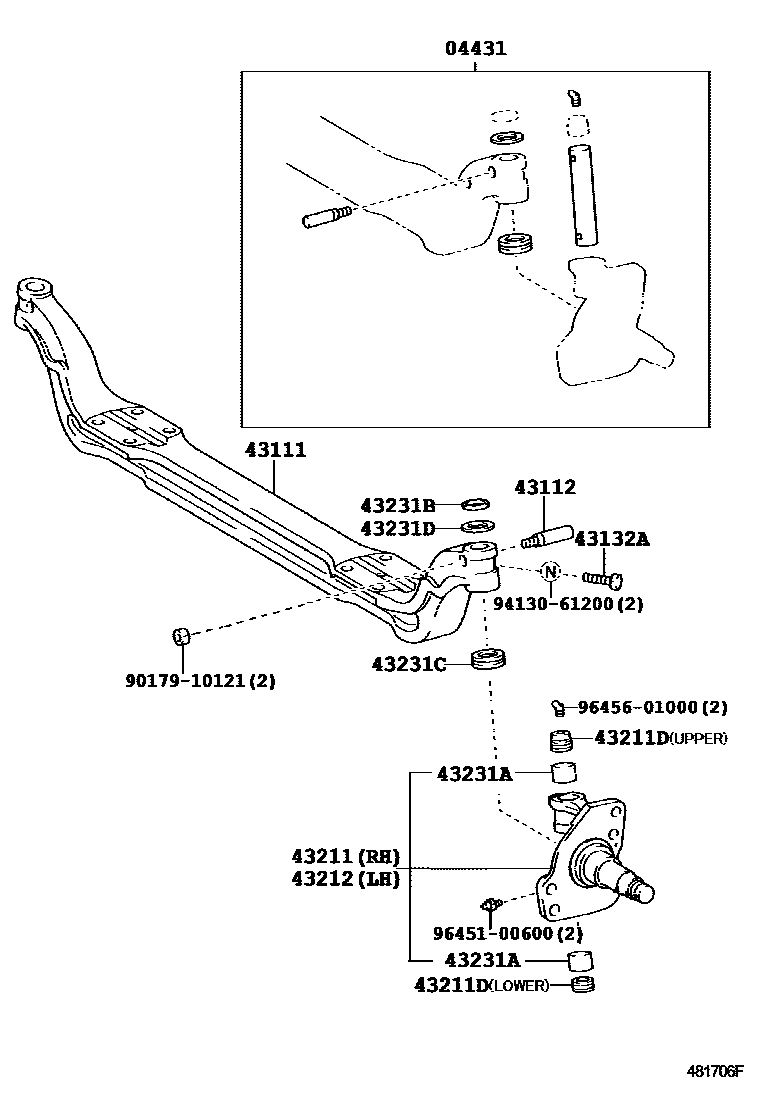

FRONT AXLE ARM & STEERING KNUCKLE
43112PIN, KING PIN LOCK
43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)
43211DPLUG (FOR STEERING KNUCKLE)
LOWER
UPPER
43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)
43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)
43231CBEARING (FOR STEERING KNUCKLE KING PIN)
43231DSHIM (FOR KING PIN)
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=1.7
T=1.8
9017910121
main90179-10121
9413061200
main94130-61200
9645100600
main96451-00600
9645601000
main96456-01000
15 parts on this diagram · 2 diagrams in section
