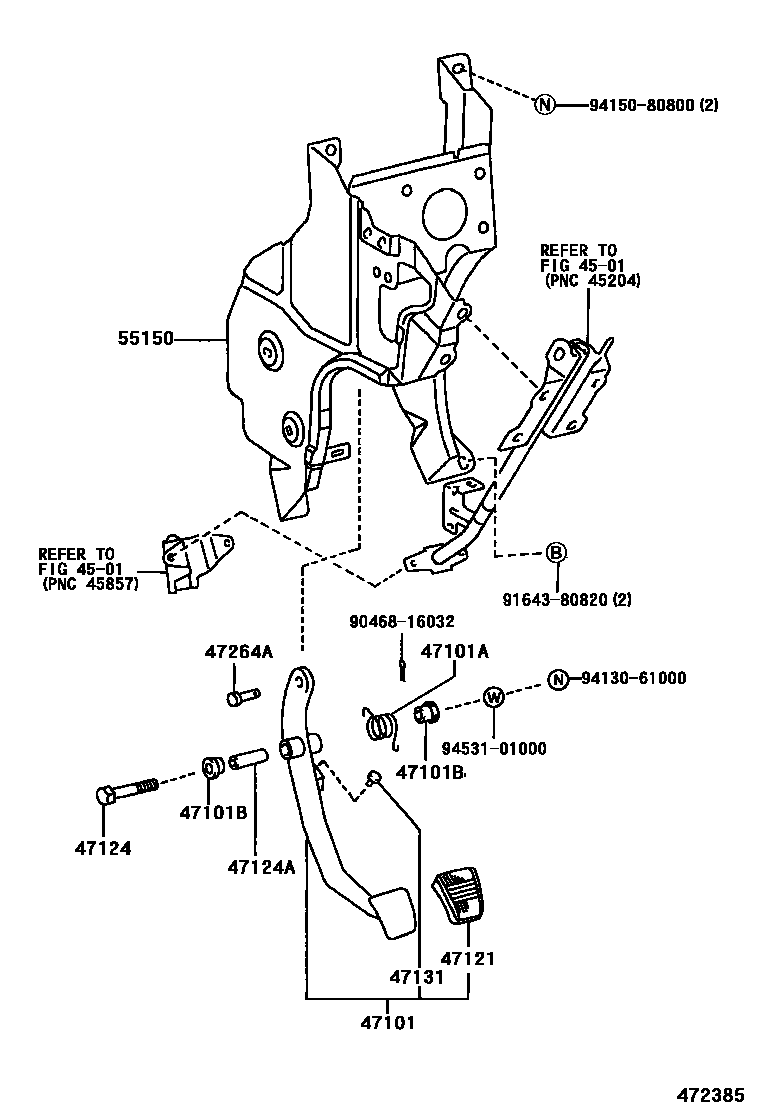

BRAKE PEDAL & BRACKET

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

47101PEDAL SUB-ASSY, BRAKE

main47101-37050iXZU402,41#,420,430200010-200206

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iXZU402,41#,420,430200010-200206

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iXZU402,41#,420,430200010-200206

47121PAD, BRAKE PEDAL

main31321-14020iXZU402,41#,420,430200010-200206

47124SHAFT, BRAKE PEDAL

main91112-61070iXZU402,41#,420,430200010-200206

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iXZU402,41#,420,430200010-200206

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iXZU402,41#,420,430200010-200206

47264APIN(FOR PUSH ROD)

main90240-10037iXZU402,41#,420,430200010-200206

55150BRACKET ASSY, PEDAL

main55150-37040iXZU411..ATM200010-200104

main55150-37041iXZU411..ATM200104-200206

main55150-37071iXZU402,41#,420,430..MTM200010-200104

main55150-37072iXZU402,41#,420,430..MTM200104-200107

main55150-37073iXZU402,41#,420,430..MTM200107-200206

9046816032

main90468-16032

9164380820

main91643-80820

9413061000

main94130-61000

9415080800

main94150-80800

9453101000

main94531-01000

15 parts on this diagram · 1 diagram in section
