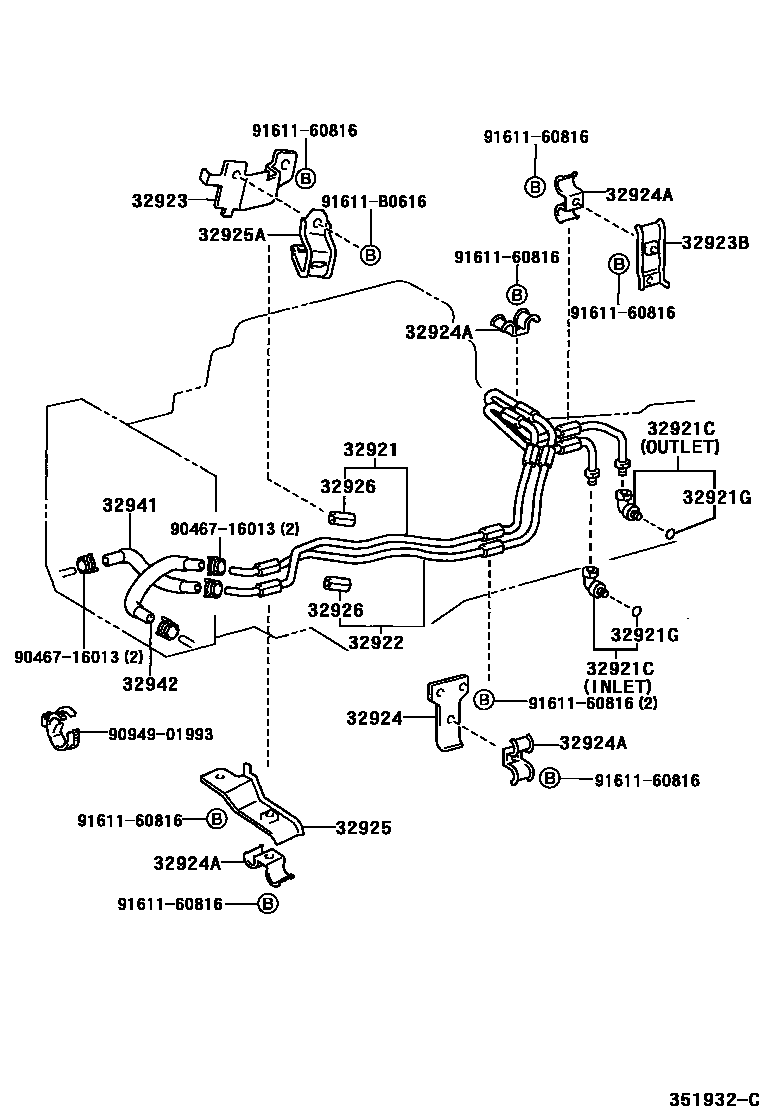

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-37060iXZU411..ATM200010-200206

32921CUNION(FOR OIL COOLER TUBE)

main90407-20006iXZU411..ATM200010-200206

INLET

main90407-20008iXZU411..ATM200010-200206

OUTLET

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iXZU411..ATM200010-200206

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-37060iXZU411..ATM200010-200206

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32927-37010iXZU411..ATM200010-200206

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-25010iXZU411..ATM200010-200206

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-37010iXZU411..ATM200010-200206

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12076×4iXZU411..ATM200010-200206

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-37020iXZU411..ATM200010-200206

32925ACLAMP, FLEXIBLE HOSE, NO.2

main32929-25020iXZU411..ATM200010-200206

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010×10iXZU411..ATM200010-200206

L=45,ID=12

32941HOSE, OIL COOLER INLET, NO.1

main32941-37040iXZU411..ATM200010-200206

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-37020iXZU411..ATM200010-200206

9046716013

main90467-16013

9094901993

main90949-01993

9161160816

main91611-60816

91611B0616

main91611-B0616

17 parts on this diagram · 1 diagram in section
