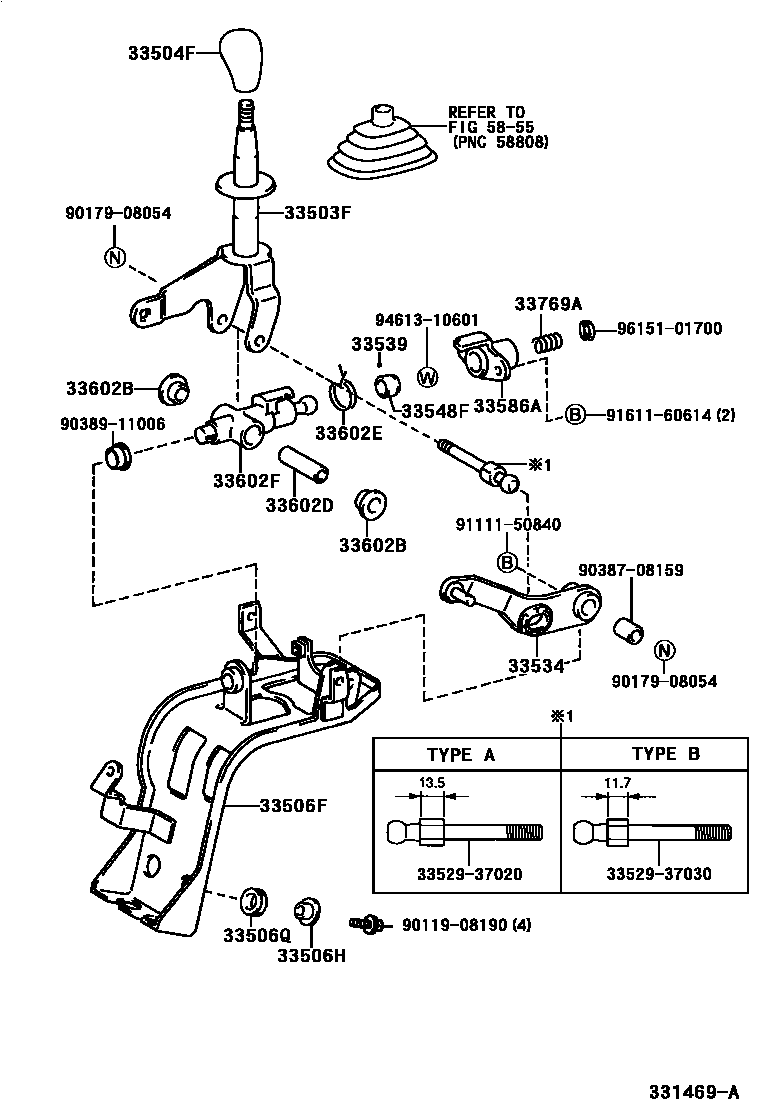

SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
W/O(POWER WINDOW)
W/O(POWER WINDOW)
33504FKNOB SUB-ASSY, SHIFT LEVER
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33506HBUSH (FOR SHIFT LEVER RETAINER)
33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33534BELLCRANK, SELECTING
33539CUSHION, SHIFT LEVER ANTI-RATTLE
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)
FOLDING TYPE
FIXED TYPE
33602BBUSHING (FOR SELECT LEVER)
33602DCOLLAR (FOR SELECT LEVER)
33602ESPRING, TORSION (FOR SELECT LEVER)
33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33769ASPRING, CROSS SHAFT END
5855
3352937020BOLT, SHIFT LEVER (FOR CONTROL SHAFT)
main33529-37020
3352937030BOLT, SHIFT LEVER (FOR CONTROL SHAFT)
main33529-37030
9011908190
main90119-08190
9017908054
main90179-08054
9038708159
main90387-08159
9038911006
main90389-11006
9111150840
main91111-50840
9161160614
main91611-60614
9461310601
main94613-10601
9615101700
main96151-01700
25 parts on this diagram · 4 diagrams in section
