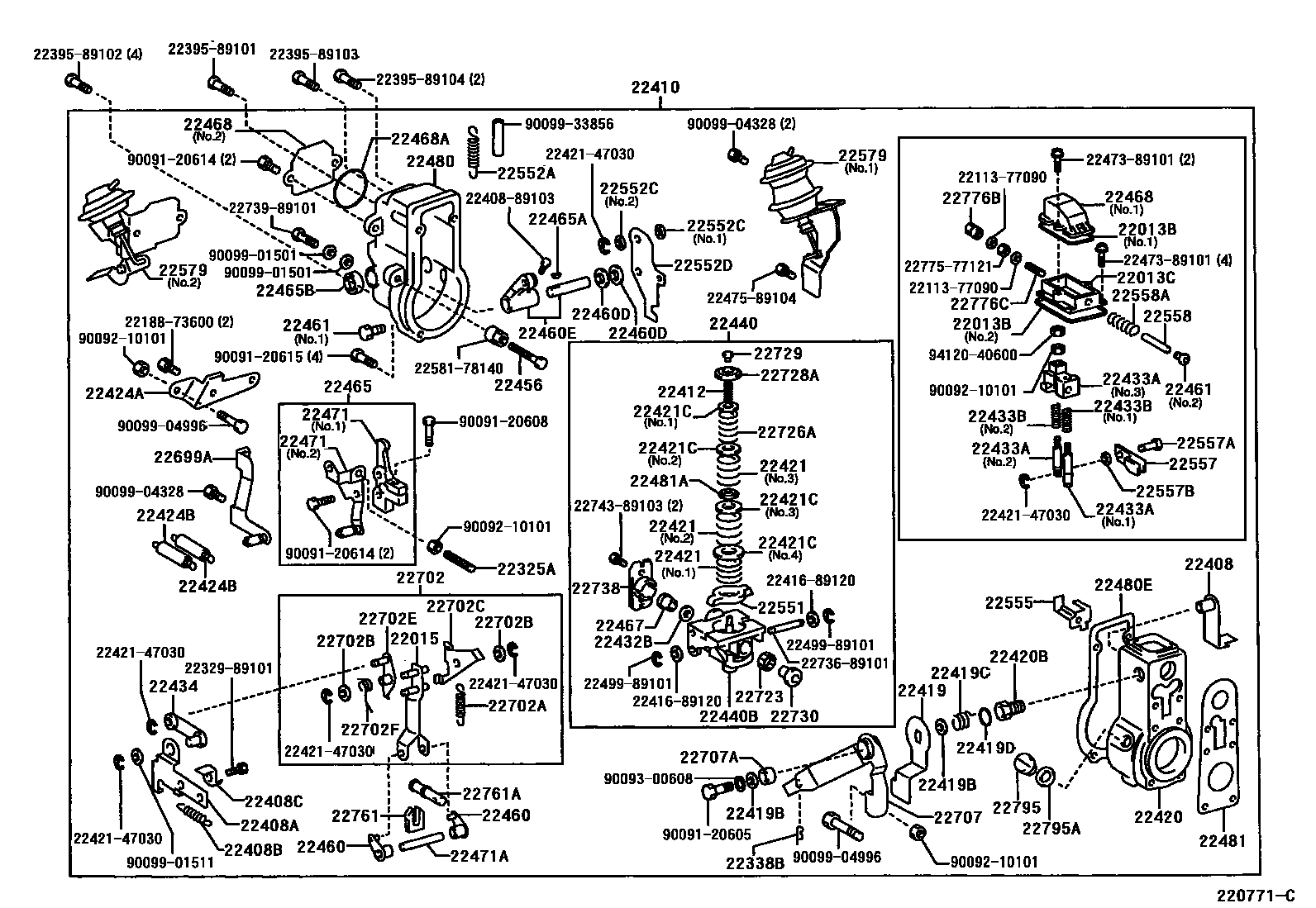

MECHANICAL GOVERNOR
22013BRING, O(FOR FULLROAD STOPPER HOUSING)
NO.1
NO.2
22013CHOUSING, FULLROAD STOPPER, NO.2
22015LEVER SUB-ASSY, FLOATING
22325ASCREW, LEVER STOP
22338BPIN, LEVER CONECTING
22408ARM, STOPPER
22408AARM SUB-ASSY(FOR CONTROL LACK)
22408BSPRING, RETURN(FOR ARM)
22408CNUT, ARM
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
W(IDLE UP FRONT HEATER)
22412SPRING, MECHANICAL GOVERNOR
22419LEVER, STOP
22419BWASHER, PLATE(FOR STOPPER LEVER)
T=0.20
T=0.50,OD=16
T=0.10
22419CSPRING, RETURN(FOR STOPPER LEVER)
22419DRING, O(FOR STOPPER LEVER)
22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR
22420BBUSH, MECHANICAL GOVERNOR HOUSING
22421SPRING, IDLING
NO.1
NO.2
NO.3
22421CWASHER, IDLING SPRING
T=0.20,NO.1
T=0.30,NO.1
T=0.60,NO.1
T=1.00,NO.1
T=0.20,NO.2
T=0.30,NO.2
T=0.60,NO.2
T=1.00,NO.2
T=0.20,NO.3
T=0.30,NO.3
T=0.60,NO.3
T=1.00,NO.3
T=0.20,NO.4
T=0.30,NO.4
T=0.60,NO.4
T=1.00,NO.4
22424AARM, SPRING
22424BSPRING, RETURN(FOR SPRING ARM)
22432BSHIM
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.10
T=2.20
T=2.30
T=2.05
T=2.15
T=2.25
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
NO.1
NO.2
NO.3
NO.4
22433BSPRING(FOR ADAPTER SCREW)
NO.1
NO.2
22434SHACKLE
22440FLYWEIGHT SUB-ASSY
22440BFLYWEIGHT SUB-ASSY
22456SCREW, STOP
22460LEVER SUB-ASSY, SUPPORT
22460DWASHER, LOCK(FOR STEERING LEVER)
T=0.75
T=0.80
T=0.50
T=0.55
T=0.60
T=0.65
T=0.70
22460EARM ASSY, GUIDE
22461PLUG, SCREW
NO.1
NO.2
22465LEVER SUB-ASSY, ADJUSTING
22465AKEY, WOODRUFF(FOR ADJUSTING LEVER)
22465BSEAL, OIL(FOR ADJUSTING LEVER)
22467NUT, ROUND
22468COVER, PLATE
NO.2
NO.1
22468AO, RING
22471LEVER SUB-ASSY, GUIDE
NO.1
NO.2
22471ASHAFT, LEVER SUPPORTING
22480COVER SUB-ASSY, GOVERNOR
22480EGASKET, GOVERNOR COVER
22481GASKET
22481ASEAT, SPRING, INNER
22551SEAT, SPRING(FOR FLYWEIGHT)
22552ASPRING, RETURN(FOR CAM PLATE)
22552CWASHER(FOR CAM PLATE BUSH)
NO.1
T=0.2,NO.2
T=0.3,NO.2
T=0.4,NO.2
T=0.5,NO.2
22552DPLATE, CAM
22555BRACKET, STOPPER
22557CAM, FULL STOP
22557APIN, CONNECTING(FOR FULL STOP CAM)
22557BWASHER, PLATE(FOR CONNECTING PIN)
T=0.10
T=0.20
22558SHAFT, SLIDING BLOCK
22558ASPRING(FOR SLIDING BLOCK SHAFT)
22579ACTUATOR, FUEL CUT
NO.2
NO.1
22699ABRACKET, ADJUSTING
22702LEVER ASSY, FLOATING
22702ASPRING, FLOATING ARM
22702BWASHER, PLATE(FOR FLOATING LEVER)
T=0.30
T=0.05
T=0.10
T=0.40
T=0.20
22702CARM, FLOATING
22702ELEVER SUB-ASSY, CONTROL
22702FSPRING, RETURN(FOR CONTROL LEVER)
22707LEVER, STOP
22707ACOLLAR, STOP LEVER
22723DAMPER, FLYWEIGHT HOLDER
22726ASPRING, SPEED CONTROL
22728AGUIDE, SPRING
22729NUT, ADJUSTING(FOR FLYWEIGHT)
22730BUSHING ASSY, CAMSHAFT
22738BUSHING, GUIDE(FOR FLYWEIGHT)
22761SLIDER(FOR SPEED CONTROL)
22761ASHAFT, SLIDING WEIGHT
L=34.54
L=34.34
L=34.14
L=33.94
L=33.74
L=33.54
L=33.34
L=34.74
22776BNUT, CAP(FOR SCREW STOPPER)
22776CSCREW, STOPPER
22795PLUG, SCREW
22795AWASHER, SCREW PLUG
2211377090
main22113-77090
2218873600
main22188-73600
2232989101BOLT, DIAPHRAGM CONNECTING
main22329-89101
2239589101BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-89101
2239589102BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-89102
2239589103BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-89103
2239589104BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-89104
2240889103ARM, STOPPER
main22408-89103
2241689120WASHER, GOVERNOR LOCK
main22416-89120
2242147030SPRING, IDLING
main22421-47030
2247389101WASHER, SPRING
main22473-89101
2247589104FILTER SUB-ASSY
main22475-89104
2249989101
main22499-89101
2258178140
main22581-78140
2273689101BOLT, BELLCRANK
main22736-89101
2273989101BOLT, GOVERNOR LINK SUPPORT
main22739-89101
2274389103
main22743-89103
2277577121NUT, LOCK(FOR INJECTION PUMP)
main22775-77121
9009120605
main90091-20605
9009120608
main90091-20608
9009120614
main90091-20614
9009120615
main90091-20615
9009210101
main90092-10101
9009300608
main90093-00608
9009901501
main90099-01501
9009901511
main90099-01511
9009904328
main90099-04328
9009904996
main90099-04996
9009933856
main90099-33856
9412040600
main94120-40600
106 parts on this diagram · 1 diagram in section
