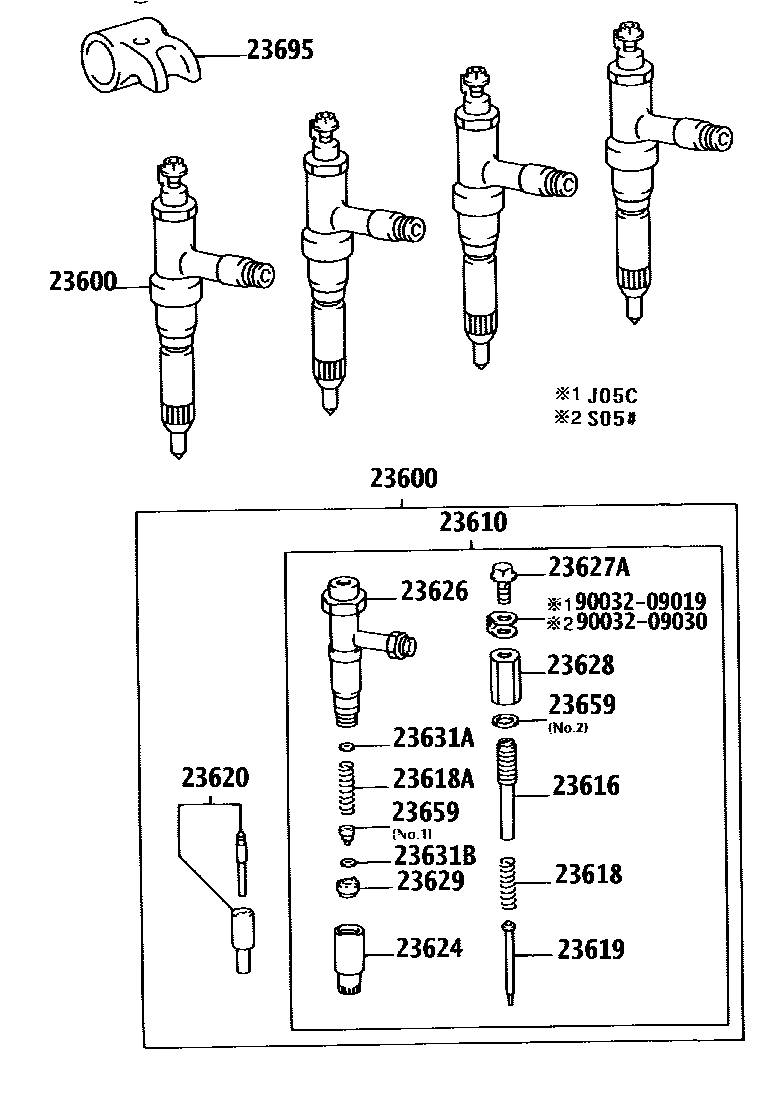

INJECTION NOZZLE

23600HOLDER & NOZZLE SET, NOZZLE

main23600-78031×4iJ05C..XZU410,420,430200010-200206

subS2361-02162

main23600-78040×4iS05#..XZU402,411,412200010-200206

subS2361-02143

23610HOLDER ASSY, NOZZLE

main23610-89104×4iJ05C..XZU410,420,430200010-200206

subS2363-02070

main23610-89105×4iS05#..XZU402,411,412200010-200206

subS2363-02083

23616SCREW, CAP NOZZLE HOLDER

main23616-89102×4iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2361-41300

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-89101×4iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2361-51270

23618ASPRING, NOZZLE HOLDER PRESSURE, NO.1

main23618-89102×4iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2361-51350

23619PIN, NOZZLE HOLDER PRESSURE

main23619-89101×4iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2361-61310

23620NOZZLE ASSY

main23620-89105×4iS05#..XZU402,411,412200010-200206

subS2365-01982

main23620-89106×4iJ05C..XZU410,420,430200010-200206

subS2365-01951

23624NUT, NOZZLE RETAINING

main23624-89101×4iS05#..XZU402,411,412200010-200206

subS2363-31880

main23624-89103×4iJ05C..XZU410,420,430200010-200206

subS2363-32070

23626BODY SUB-ASSY, NOZZLE

main23626-89102×4iS05#..XZU402,411,412200010-200206

main23626-89103×4iJ05C..XZU410,420,430200010-200206

23627ASCREW, FOLLOW(FOR NOZZLE)

main23656-89101×4iJ05C,S05#..XZU402,41#,420,430200010-200206

sub90034-01017

23628NUT(FOR RING PACKING SETTING)

main23628-89102×4iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2362-31500

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-89101×4iJ05C,S05#..XZU402,41#,420,430200010-200206

subS2361-71620

23631AWASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.1)

main23631-89102×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.4

subS2288-57040

main23631-89103×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.425

subS2288-57050

main23631-89104×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.45

subS2288-57060

main23631-89105×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.475

subS2288-57070

main23631-89106×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.5

subS2288-57080

main23631-89107×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.525

subS2288-57090

main23631-89108×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.55

subS2288-57100

main23631-89109×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.575

subS2288-57110

main23631-89110×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.6

subS2288-57120

main23631-89111×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.625

subS2288-57130

main23631-89112×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.65

subS2288-57140

main23631-89113×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.675

subS2288-57150

main23631-89114×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.7

subS2288-57160

main23631-89115×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.225

subS2288-57760

main23631-89116×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.25

subS2288-57770

main23631-89117×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.275

subS2288-57780

main23631-89118×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.3

subS2288-57790

main23631-89119×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.325

subS2288-57800

main23631-89120×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.35

subS2288-57810

main23631-89121×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.375

subS2288-57820

main23631-89141×4iJ05C..XZU410,420,430200010-200206

T=1.725

subS2288-57180

main23631-89142×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.75

subS2288-57190

main23631-89143×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.775

subS2288-57200

main23631-89144×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.8

subS2288-57210

main23631-89145×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.825

subS2288-57220

main23631-89146×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.85

subS2288-57230

main23631-89147×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.875

subS2288-57240

main23631-89148×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.9

subS2288-57250

main23631-89149×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.925

subS2288-57260

main23631-89150×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.95

subS2288-57270

main23631-89151×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.975

subS2288-57280

main23631-89152×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=2.0

subS2288-57290

main23631-89153×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=2.025

subS2288-57300

main23631-89154×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=2.05

subS2288-57310

main23631-89155×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=2.075

subS2288-57320

main23631-89156×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=2.1

subS2288-57330

main23631-89157×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.025

subS2288-57680

main23631-89158×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.05

subS2288-57690

main23631-89159×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.075

subS2288-57700

main23631-89160×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.1

subS2288-57710

main23631-89161×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.125

subS2288-57720

main23631-89162×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.15

subS2288-57730

main23631-89163×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.175

subS2288-57740

main23631-89164×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.2

subS2288-57750

main23631-89182×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.0

subS2288-57670

23631BWASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.2)

main23631-89122×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.3

subS2288-56820

main23631-89123×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.32

subS2288-56830

main23631-89124×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.34

subS2288-56840

main23631-89125×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.36

subS2288-56850

main23631-89126×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.38

subS2288-56860

main23631-89127×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.4

subS2288-56870

main23631-89128×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.42

subS2288-56880

main23631-89130×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.44

subS2288-56900

main23631-89131×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.46

subS2288-56910

main23631-89132×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.48

subS2288-56920

main23631-89133×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.5

subS2288-56930

main23631-89134×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.52

subS2288-56940

main23631-89135×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.54

subS2288-56950

main23631-89136×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.56

subS2288-56960

main23631-89137×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.58

subS2288-56970

main23631-89138×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.6

subS2288-56980

main23631-89139×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.62

subS2288-56990

main23631-89141×4iS05#..XZU402,411,412200010-200206

T=1.725

subS2288-57180

main23631-89165×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.64

subS2288-57000

main23631-89166×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.66

subS2288-57010

main23631-89167×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.68

subS2288-57020

main23631-89168×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.7

subS2288-57030

main23631-89169×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.43

subS2288-58410

main23631-89170×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.45

subS2288-58420

main23631-89171×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.47

subS2288-58430

main23631-89172×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.49

subS2288-58440

main23631-89173×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.51

subS2288-58450

main23631-89174×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.53

subS2288-58460

main23631-89175×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.55

subS2288-58470

main23631-89176×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.57

subS2288-58480

main23631-89177×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.59

subS2288-58490

main23631-89178×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.61

subS2288-58500

main23631-89179×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.63

subS2288-58510

main23631-89180×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.65

subS2288-58520

main23631-89181×4iJ05C,S05#..XZU402,41#,420,430200010-200206

T=1.67

subS2288-58530

23659PACKING, TIP(FOR NOZZLE)

main23659-89101×4iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.1

subS2361-91090

main23659-89103×4iS05#..XZU402,411,412200010-200206

NO.2

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-89102×4iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1119-51050

9003209019

main90032-09019

9003209030

main90032-09030

18 parts on this diagram · 1 diagram in section
