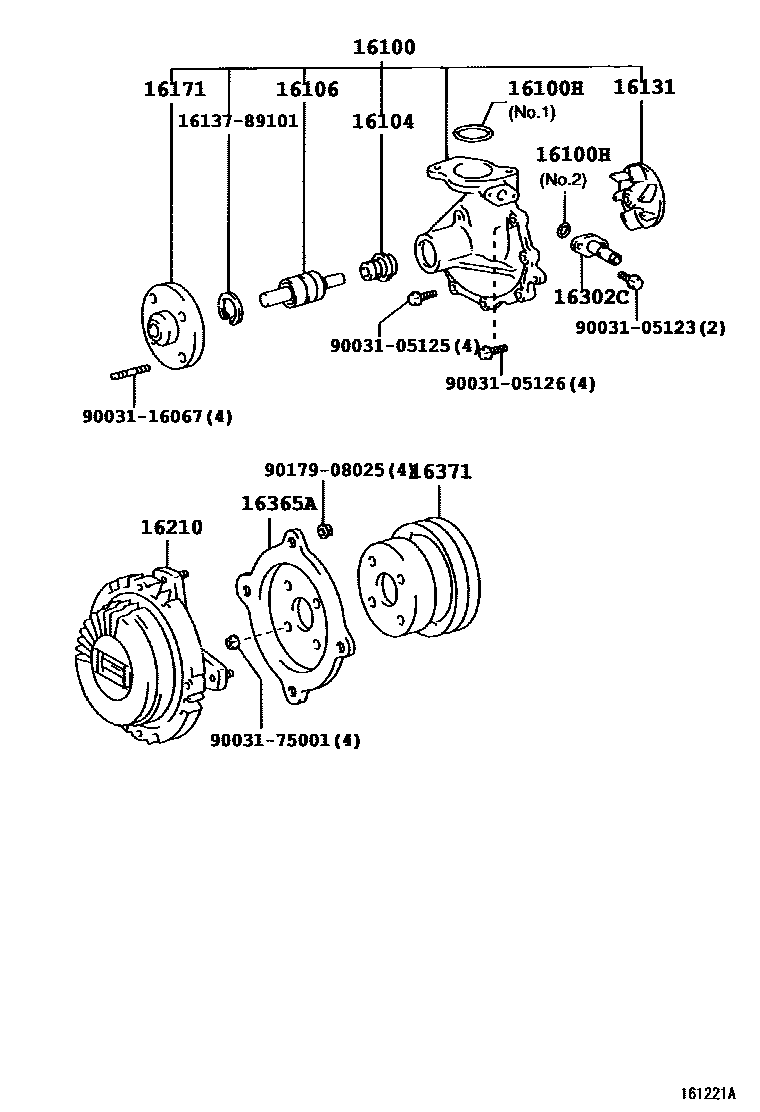

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-78030iJ05C,S05#..XZU402,41#,420,430200010-200011

main16100-78050iJ05C,S05#..XZU402,41#,420,430200011-200206

16100HRING, O(FOR WATER PUMP)

main90033-01047iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.1

main90033-01060iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.2

16104SEAL SET, WATER PUMP

main16104-89103iJ05C,S05#..XZU402,41#,420,430200010-200206

16106BEARING & SHAFT SUB-ASSY, WATER PUMP

main16106-89103iJ05C,S05#..XZU402,41#,420,430200010-200011

main16106-89106iJ05C,S05#..XZU402,41#,420,430200011-200206

16131ROTOR, WATER PUMP

main16131-89102iJ05C,S05#..XZU402,41#,420,430200010-200206

16171SEAT, WATER PUMP PULLEY

main16171-89103iJ05C,S05#..XZU402,41#,420,430200010-200011

main16171-89104iJ05C,S05#..XZU402,41#,420,430200011-200206

16210COUPLING ASSY, FLUID

main16250-78040iJ05C..XZU410,420,430200010-200011

main16250-78050iS05#..XZU402,411,412200010-200011

main16250-78080iS05#..XZU402,411,412200011-200112

main16250-78090iJ05C..XZU410,420,430200011-200112

16302CPIPE SUB-ASSY, WATER INLET

main16302-78010iJ05C..XZU410,420,430200010-200112

main16302-78020iS05#..XZU402,411,412200010-200112

16365ASPACER, FAN

main16365-78040iJ05C,S05#..XZU402,41#,420,430200010-200206

16371PULLEY, FAN

main16308-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

1613789101

main16137-89101

9003105123

main90031-05123

9003105125

main90031-05125

9003105126

main90031-05126

9003116067

main90031-16067

9003175001

main90031-75001

9017908025

main90179-08025

17 parts on this diagram · 1 diagram in section
