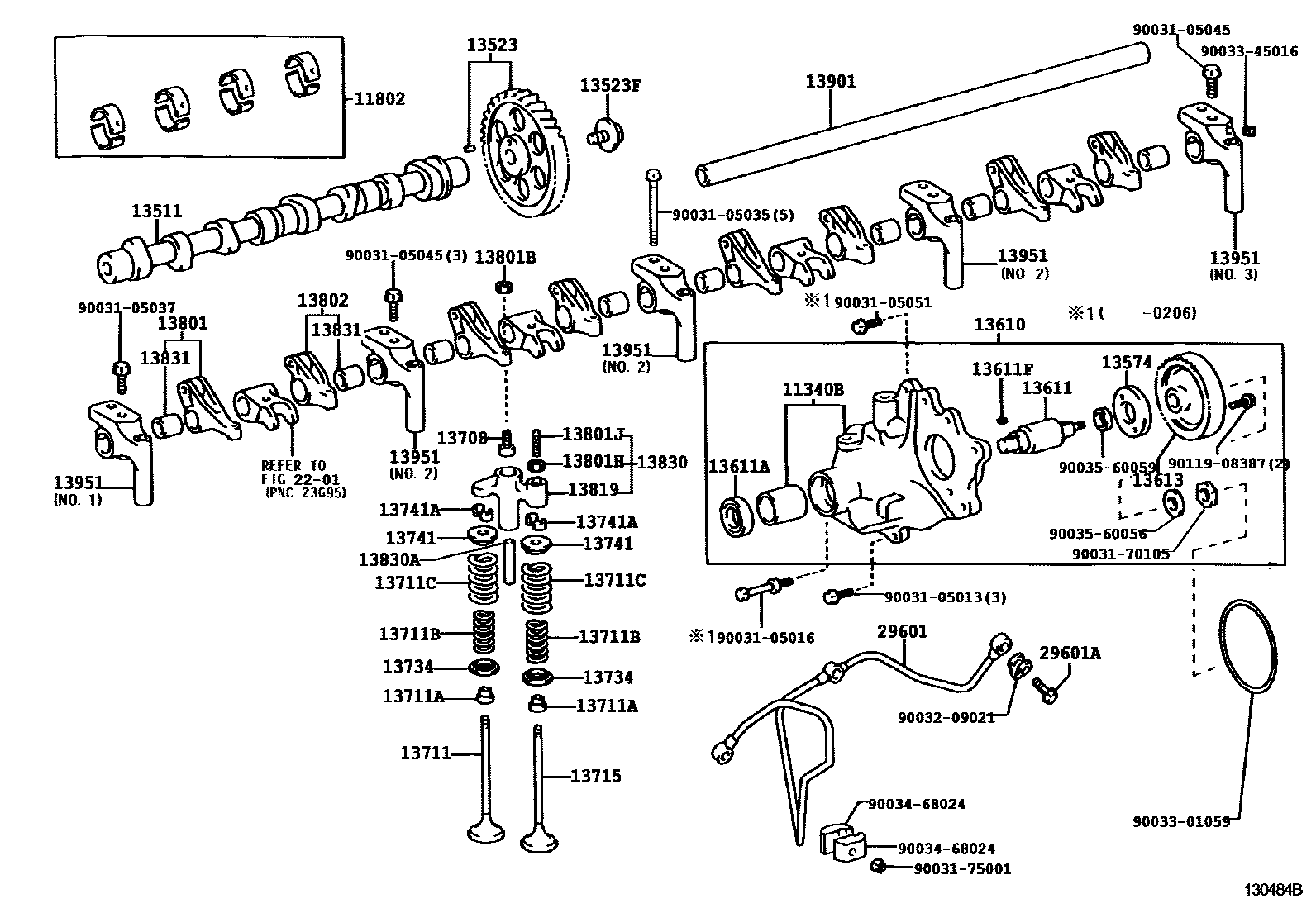

CAMSHAFT & VALVE

0001 1 0002 1

11340BSLEEVE(FOR INJECTION PUMP DRIVE SHAFT BEARING HOLDER)

main11340-78010iJ05C..XZU410,420,430200010-200206

11802BEARING SET, CAMSHAFT

main11801-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

STD

13511CAMSHAFT

main13501-78030iJ05C..XZU410,420,430200010-200206

main13501-78041iS05#..XZU402,411,412200010-200206

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13050-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

13523FBOLT(FOR CAMSHAFT TIMING GEAR)

main90038-01021iJ05C,S05#..XZU402,41#,420,430200010-200206

13574PLATE, PUMP DRIVE SHAFT

main13574-78010iJ05C..XZU410,420,430200010-200206

13610SHAFT ASSY, INJECTION PUMP DRIVE HOUSING

main13610-78010iJ05C..XZU410,420,430200010-200206

13611SHAFT, INJECTION

main13611-78010iJ05C..XZU410,420,430200010-200206

13611ASEAL, OIL(FOR INJECTION SHAFT)

main90033-11034iJ05C..XZU410,420,430200010-200206

13611FKYE, WOODRUFF(FOR INJECTION SHAFT)

main90029-18002×2iJ05C..XZU410,420,430200010-200206

13613GEAR, INJECTION PUMP DRIVE

main13613-78020iJ05C..XZU410,420,430200010-200206

13708SCREW SUB-ASSY, VALVE ADJUSTING

main13708-89104×8iJ05C,S05#..XZU402,41#,420,430200010-200206

13711VALVE, INTAKE

main13711-89104×8iJ05C,S05#..XZU402,41#,420,430200010-200206

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90038-12004×16iJ05C,S05#..XZU402,41#,420,430200010-200206

13711BSPRING, COMPRESSION(FOR INNER)

main90035-01052×16iJ05C,S05#..XZU402,41#,420,430200010-200206

13711CSPRING, COMPRESSION(FOR OUTER)

main90035-01051×16iJ05C,S05#..XZU402,41#,420,430200010-200206

13715VALVE, EXHAUST

main13715-78020×8iJ05C,S05#..XZU402,41#,420,430200010-200206

13734SEAT, VALVE SPRING

main13734-89102×16iJ05C,S05#..XZU402,41#,420,430200010-200206

13741RETAINER, VALVE SPRING

main13741-89103×16iJ05C,S05#..XZU402,41#,420,430200010-200206

13741ALOCK, VALVE SPRING RETAINER

main90038-13006×32iJ05C,S05#..XZU402,41#,420,430200010-200206

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-78010×4iJ05C,S05#..XZU402,41#,420,430200010-200112

main13801-78030×4iJ05C,S05#..XZU402,41#,420,430200112-200206

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90031-78090×8iJ05C,S05#..XZU402,41#,420,430200010-200206

13801HNUT

main90031-78090×8iJ05C,S05#..XZU402,41#,420,430200010-200206

13801JSCREW, VALVE ADJUSTING

main13788-89101×8iJ05C,S05#..XZU402,41#,420,430200010-200206

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13801-78020×4iJ05C,S05#..XZU402,41#,420,430200010-200112

main13801-78040×4iJ05C,S05#..XZU402,41#,420,430200112-200206

13819BRIDGE, VALVE

main13819-78010×8iJ05C,S05#..XZU402,41#,420,430200010-200112

main13819-78020×8iJ05C,S05#..XZU402,41#,420,430200112-200206

13830BRIDGE ASSY, VALVE

main13830-78010×8iJ05C,S05#..XZU402,41#,420,430200010-200112

main13830-78020×8iJ05C,S05#..XZU402,41#,420,430200112-200206

13830APIN, CROSSHEAD

main38753-37010×8iJ05C,S05#..XZU402,41#,420,430200010-200206

13831BUSHING, VALVE ROCKER ARM

main13831-89101×8iJ05C,S05#..XZU402,41#,420,430200010-200206

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-78020iJ05C,S05#..XZU402,41#,420,430200112-200206

main13901-89102iJ05C,S05#..XZU402,41#,420,430200010-200112

13951SUPPORT, VALVE ROCKER, NO.1

main13951-78040iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.1

main13951-78050×3iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.2

main13951-78060iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.3

2201INJECTION NOZZLE

→ Go to FIG 22-01

29601PIPE SUB-ASSY, OIL(FOR INJECTION PUMP DRIVE HOUSING SHAFT)

main29601-78040iJ05C..XZU410,420,430200010-200206

29601ABOLT, UNION(FOR INJECTION PUMP DRIVE HOUSING SHAFT)

main90034-01012iJ05C..XZU410,420,430200010-200206

9003105013

main90031-05013

9003105016

main90031-05016

9003105035

main90031-05035

9003105037

main90031-05037

9003105045

main90031-05045

9003105051

main90031-05051

9003170105

main90031-70105

9003175001

main90031-75001

9003209021

main90032-09021

9003301059

main90033-01059

9003345016

main90033-45016

9003468024

main90034-68024

9003560056

main90035-60056

9003560059

main90035-60059

9011908387

main90119-08387

49 parts on this diagram · 2 diagrams in section
