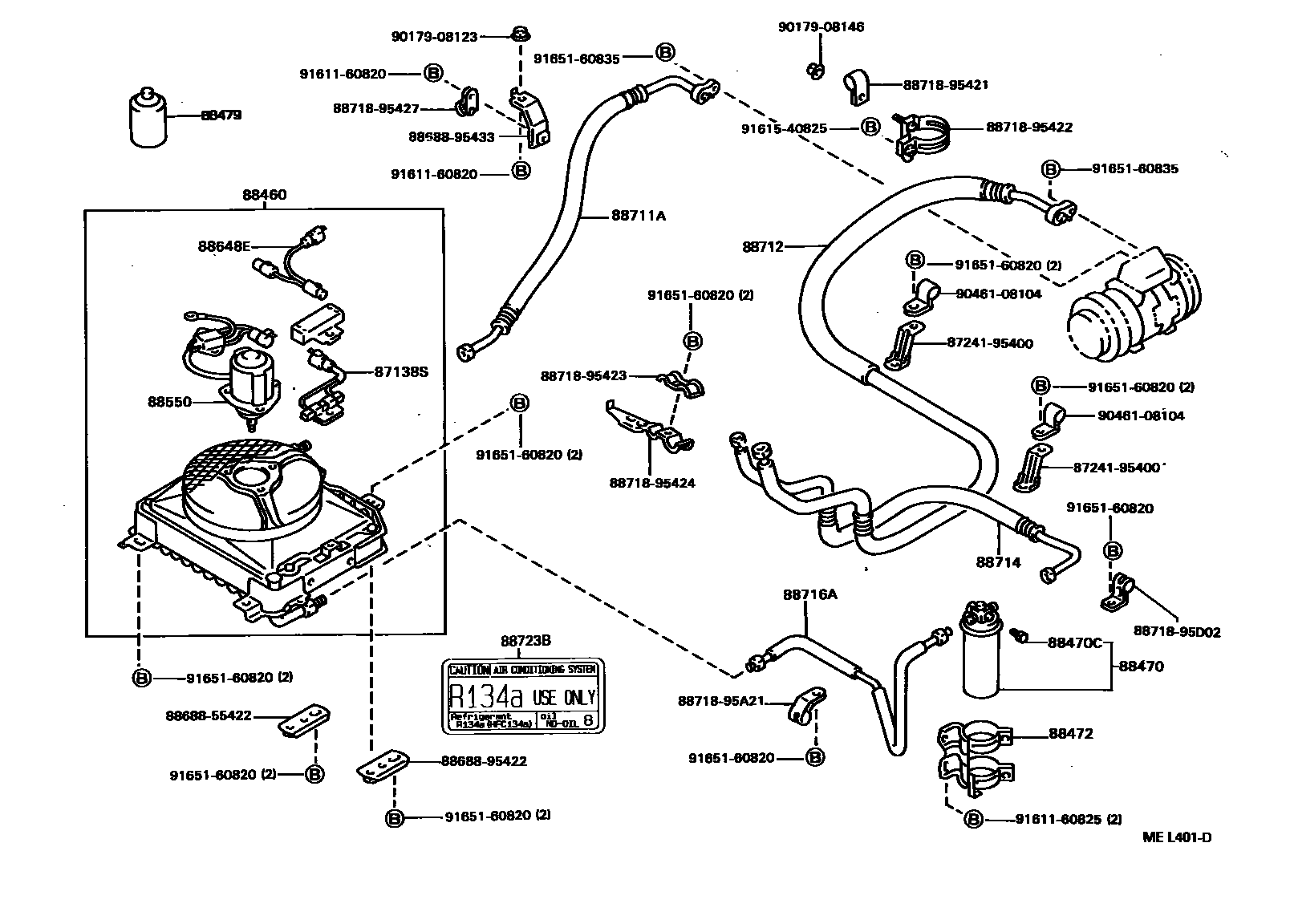

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

87138SRESISTOR, BLOWER

main87138-95410iRU85..SA;YU6#,71,82..GEN,SA198808-199309

88460CONDENSER ASSY, COOLER

main88460-37010iYU82..RHD..GEN199309-199505

main88460-37020iYU6#,82..LHD199309-199505

main88460-37040iYU85199403-199505

main88460-37050iRU85..GEN199309-199505

W(HEATER)

main88460-95405iRU85..GEN;YU82..RHD199008-199109

main88460-95406iYU6#,71,82..LHD198808-199309

main88460-95408iRU85..SA198808-199309

main88460-95410iWU9#199004-199301

88470RECEIVER & DRYER ASSY, COOLER

main88471-20050iYU85;RU85,YU6#,82..GEN199309-199505

main88471-95400iRU85..SA;YU6#,71,82..GEN,SA199008-199109

main88471-95401iWU9#199004-199301

88470CBOLT, FUSE

main88475-12020iRU85..SA;YU6#,71,82..GEN,SA198911-199004

88472BRACKET, RECEIVER TANK, NO.1

main88472-37010iYU82..RHD..GEN199309-199505

main88472-37020iYU6#,82..LHD199309-199505

main88472-37030iYU85199403-199505

main88472-37040iRU85..GEN199309-199505

W(HEATER)

main88472-95406iRU85..SA198808-199309

main88472-95407iWU9#199004-199301

main88472-95408iRU85..GEN;YU62,82..RHD198811-199008

main88472-95409iYU6#,71,82..LHD198808-199309

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iRU85..GEN;YU62..ARL198811-198910

400G

main90986-02004×2iRU85,YU6#,71,82..GEN,SA199008-199309

250G

main90986-02007iRU85..GEN; YU85;YU6#,82..GEN199309-199505

250G

main90986-02008×2iRU85..GEN; YU85;YU6#,82..GEN199309-199505

200G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-95406iRU85..SA;YU6#,71,82..GEN,SA198808-199309

88648EWIRING, COOLER

main88648-95419iRU85..SA;YU6#,71,82..GEN,SA198808-199309

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-36200iRU85..SA199210-199309

main88711-37010iYU6#,82..GEN199309-199505

main88711-95422iRU85..GEN;YU62..ARL199109-199505

main88711-95424iWU9#199004-199301

main88711-95425iRU85..SA198808-199210

main88711-95430iYU6#,71,82..GEN,SA198808-199309

88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2

main88711-37020iYU6#,82..GEN199309-199505

main88711-37060iRU85..GEN199309-199505

main88711-95417iYU6#,71,82198808-198811

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-37010iYU82..RHD..GEN199309-199505

main88712-37080iYU85199403-199505

main88712-37090iRU85..GEN199309-199505

main88712-95420iRU85..GEN;YU62..ARL199109-199309

main88712-95428iYU6#,82..LHD; YU71198808-199309

main88712-95438iYU6#,82..LHD; YU71; YU82..RHD198808-199309

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-36090iYU82..RHD..GEN; YU82..SA199210-199309

main88721-36110iYU6#,82..LHD; YU71199210-199309

main88721-36120iRU85..SA199210-199309

main88721-37030iYU82..RHD..GEN199309-199505

main88721-37040iYU6#,82..LHD199309-199505

main88721-37060iYU85199403-199505

main88721-37070iRU85..GEN199309-199505

main88721-95405iYU82..RHD..GEN; YU82..SA198808-199309

main88721-95406iYU6#,82..LHD; YU71198808-199309

main88721-95409iRU85..SA198808-199210

main88721-95410iWU9#199004-199301

main88721-95413iYU82..RHD..GEN; YU82..SA198808-199210

main88721-95414iYU6#,82..LHD; YU71198808-199210

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-37030iYU82..RHD..GEN199309-199505

main88716-37040iYU6#,82..LHD199309-199505

main88716-37060iYU85199403-199505

main88716-37070iRU85..GEN199309-199505

W(HEATER)

main88716-95403iYU62..ARL198808-198811

main88716-95410iRU85..SA198808-199309

main88716-95411iWU9#199004-199301

main88716-95412iYU82..RHD198808-199309

main88716-95414iYU6#,71,82..LHD198808-199309

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iYU85;RU85,YU6#,82..GEN199309-199505

8724195400CONTROLLER, WATER VALVE

main87241-95400

8868855422BRACKET, COOLER DIAPHRAGM

main88688-55422

8868895422BRACKET, COOLER DIAPHRAGM

main88688-95422

8868895433BRACKET, COOLER DIAPHRAGM

main88688-95433

8871895421PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95421

8871895422PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95422

8871895423PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95423

8871895424PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95424

8871895427PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95427

8871895A21PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A21

8871895D02PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95D02

9017908123

main90179-08123

9017908146

main90179-08146

9046108104

main90461-08104

9161160820

main91611-60820

9161160825

main91611-60825

9161540825

main91615-40825

9165160820

main91651-60820

9165160835

main91651-60835

33 parts on this diagram · 5 diagrams in section
