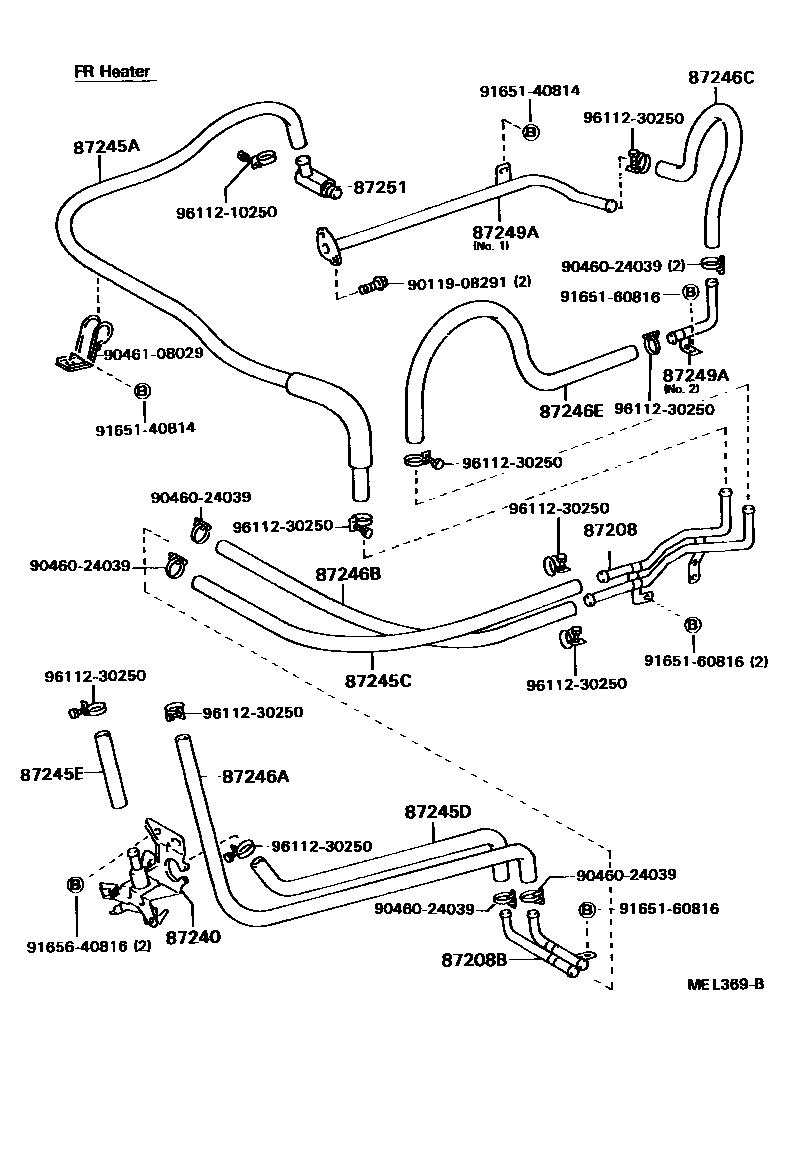

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-95402iWU9#;RU85..SA198808-199301

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-95406iRU85,WU9#198808-199301

87240VALVE ASSY, HEATER WATER

main87240-95409iYU85;YU82..RHD..GEN199309-199505

main87240-95410iRU85,WU9#,YU6#,71,82..LHD198808-199301

87245AHOSE, HEATER WATER, INLET A

main87245-95444iRU85..GEN198808-199505

main87245-95452iWU9#198808-199301

main99556-30300iYU6#,71,82198808-199309

L=300

87245CHOSE, HEATER WATER ,INLET C

main87245-95463iRU85..SA198808-199309

main87245-95465iRU85,WU9#..GEN198808-199301

87245DHOSE, HEATER WATER, INLET D

main99556-30500iRU85199301-199309

L=500

87245EHOSE, HEATER WATER, INLET E

main99556-30135iRU85,WU9#,YU6#,71,82198808-199301

*H,L=135

87246AHOSE, HEATER WATER, OUTLET A

main99556-30700iRU85,WU9#198808-199301

L=700

main99556-30980iYU6#,71,82..LHD198808-199505

*H,L=980

87246BHOSE, HEATER WATER, OUTLET B

main87245-95464iRU85,WU9#..GEN198808-199301

main99556-30500iRU85..SA198808-199309

L=500

87246CHOSE, HEATER WATER, OUTLET C

main99556-30500iRU85198808-199309

L=500

87246EHOSE, HEATER WATER, OUTLET E

main87245-95460iYU6#,71,82198808-199309

main87245-95472iWU9#198808-199301

main87245-95473iRU85198808-199309

main99556-30500×2iYU85199501-199505

L=500

87249APIPE, HEATER WATER OUTLET, A

main87208-20030iRU85..GEN198808-199505

main87208-95408iYU6#,71,82198808-199309

main87208-95415iRU85..GEN198808-199505

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-20100iRU85198808-199309

main87251-30190iWU9#198808-199305

9011908291

main90119-08291

9046024039

main90460-24039

9046108029

main90461-08029

9165140814

main91651-40814

9165160816

main91651-60816

9165640816

main91656-40816

9611210250

main96112-10250

9611230250

main96112-30250

21 parts on this diagram · 5 diagrams in section
