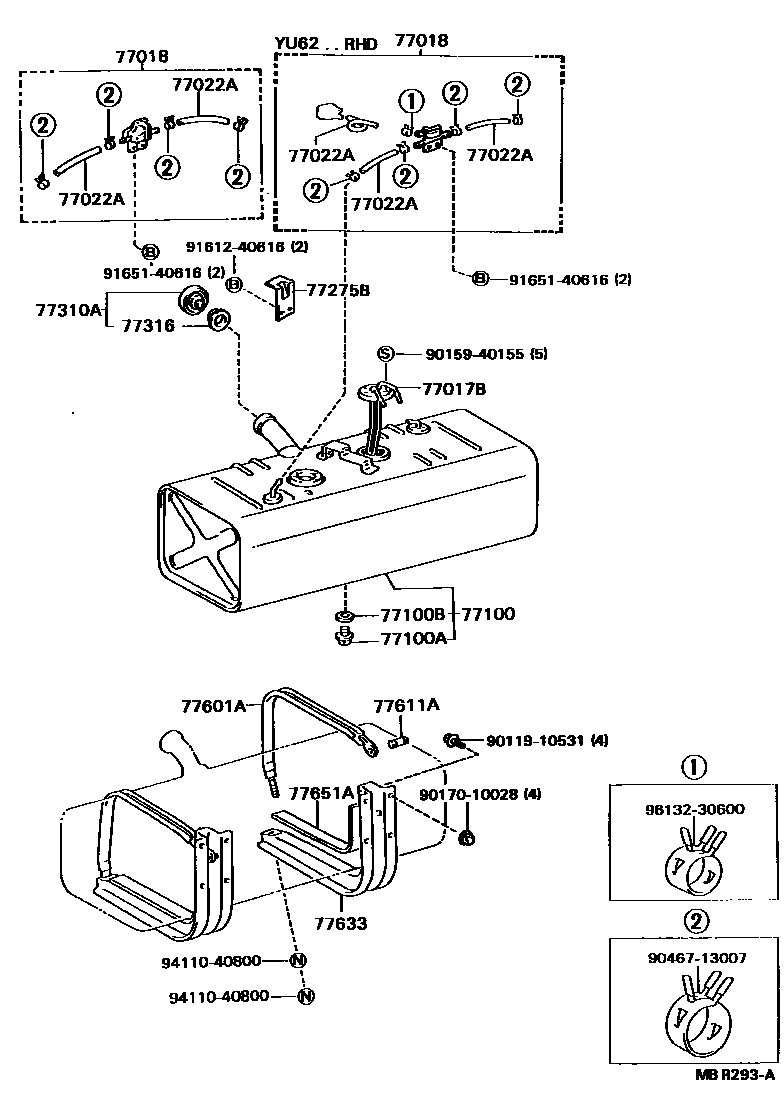

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-36130iYU62..TW1198808-199505

main77017-36171iYU71198808-199309

main77017-36181iRU85,WU9#,YU6#,8#..L2,T3198808-199505

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25110iYU71;YU62..TW1198808-199505

main77018-36090iYU62..ARL198808-199204

sub77018-36100

main77018-36230iRU85,WU9#,YU6#,8#..(L2,T3)..(GEN,SA)198808-199505

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06040iYU62..ARL198808-199204

L=400

main95333-08020iYU71;YU62..TW1198808-199505

L=200,ID=8

sub95337-08020

main95333-08030iRU85,WU9#,YU6#,8#..L2,T3198808-199505

L=300

77100TANK ASSY, FUEL

main77001-3B020iYU62..TW1198808-199505

main77001-3B040iYU71198808-199309

main77001-3B090iYU63;YU62..T3..ST198808-199505

main77001-3B100iRU85,WU9#,YU62,8#..WT..(GEN,SA)198808-199505

sub77001-3B101

main77001-3B120iYU62..ARL198808-199204

77100APLUG(FOR FUEL TANK)

main90105-12116iRU85,WU9#,YU6#,71,8#198808-199505

77100BGASKET(FOR FUEL TANK)

main90430-12245iRU85,WU9#,YU6#,71,8#198808-199505

77275BPROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE

main77275-36020iYU63198808-199505

77310ACAP ASSY, FUEL TANK

main77310-60051iRU85,YU6#,71,8#198808-199505

sub77310-60090

77316GASKET, FUEL TANK CAP

main77316-27010iRU85,YU6#,71,8#198808-199505

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-25090iYU71;YU62..TW1198808-199505

main77601-36140iRU85,WU9#,YU62,8#..T3..(GEN,SA)198808-199505

sub77601-37030

main77601-36150iYU63;YU62..ARL198808-199505

sub77601-37040

77611APIN (FOR FUEL TANK BAND)

main77629-36010iRU85,WU9#,YU6#,8#..L2,T3198808-199505

main77653-25010iYU71;YU62..TW1198808-199505

77633STAY, FUEL TANK

main77501-25090iYU71;YU62..TW1198808-199412

sub77501-25091

main77501-25091iYU62..TW1199412-199505

main77501-36080iYU63198808-199505

main77633-36090iRU85,WU9#,YU62,8#..T3..(GEN,SA)198808-199505

sub77633-36091

main77633-36111iYU62..ARL198808-199204

sub77633-36112

77651ACUSHION, FUEL TANK, NO.1

main77651-26040iYU71;YU62..TW1198808-199505

main77651-36100iRU85,WU9#,YU62,8#..T3198808-199505

main77651-36110iYU63198808-199505

9011910531

main90119-10531

9015940155

main90159-40155

9017010028

main90170-10028

9046713007

main90467-13007

9161240616

main91612-40616

9165140616

main91651-40616

9411040800

main94110-40800

9613230600

main96132-30600

21 parts on this diagram · 7 diagrams in section
