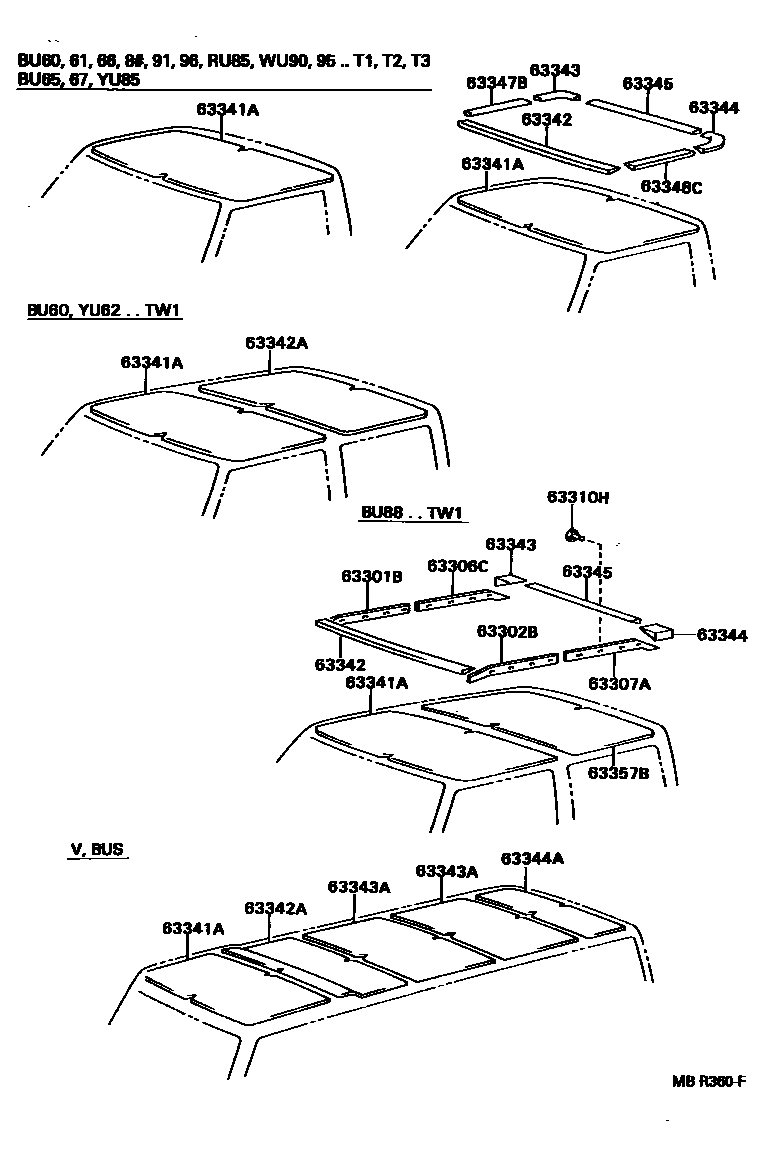

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63301BSILENCER SUB-ASSY, ROOF, FRONT RH

63302BSILENCER SUB-ASSY, ROOF, FRONT LH

63306CSILENCER SUB-ASSY, ROOF, REAR

63307ASILENCER SUB-ASSY, ROOF, REAR LH

63310HEADLINING ASSY, ROOF

main63310-37010-B2iWU9#199110-199112

TAIWAN PACKAGE,GRAY,TRIM1#

main63310-95401-03iWU9#199112-199305

TAIWAN PACKAGE,GRAY,TRIM1#

63310HCLIP(FOR ROOF HEADLINING)

main90467-06161-33×4iWU9#199110-199305

TAIWAN PACKAGE,GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-95417iWU9#199110-199305

TAIWAN PACKAGE

63341ASILENCER, ROOF, NO.1

main63341-37020-06iYU71199005-199109

BROWN,TRIM4#

main63341-37020-B0iYU71199109-199309

GRAY,TRIM1#

main63341-92608-06iYU71198808-199005

BROWN,TRIM4#

main63341-92611-06iYU71198808-199007

SAUDI ARABIA & GULF SPEC,BROWN,TRIM4#

main63341-95409-03iYU6#,82..(L2,T3)..GEN199210-199305

GRAY,TRIM1#

main63341-95409-06iYU6#,82..L2,T3198808-199109

BROWN,TRIM4#

main63341-95410-03iYU6#,82..L2,T3199305-199505

W(ROOF VENTILATOR),GRAY,TRIM1#

main63341-95410-06iYU6#,82..L2,T3198808-199109

W(ROOF VENTILATOR),BROWN,TRIM4#

main63341-95411-03iRU85,WU9#,YU85199109-199505

GRAY,TRIM1#

main63341-95411-06iRU85,WU9#198808-199109

BROWN,TRIM4#

main63341-95412-03iRU85,YU85199109-199505

W(ROOF VENTILATOR),GRAY,TRIM1#

main63341-95412-06iRU85198808-199109

W(ROOF VENTILATOR),BROWN,TRIM4#

main63341-95414-03iYU62..TW1199109-199505

W(ROOF VENTIRATOR),GRAY,TRIM1#

main63341-95414-06iYU62..TW1198808-199109

W(ROOF VENTILATOR),BROWN,TRIM4#

main63341-95415-03iYU62..TW1199109-199505

GRAY,TRIM1#

main63341-95415-06iYU62..TW1198808-199109

BROWN,TRIM4#

63342PAD, ROOF SILENCER, NO.2

main63342-37040iRU85,YU85199407-199505

main63342-95403iRU85,WU9#,YU85198808-199407

63342ASILENCER, ROOF, NO.2

main63342-37010-06iYU71199005-199109

BROWN,TRIM4#

main63342-37010-B0iYU71199109-199309

GRAY,TRIM1#

main63342-92604-06iYU71198808-199005

BROWN,TRIM4#

main63342-92608-06iYU71198808-199007

SAUDI ARABIA & GULF SPEC,BROWN,TRIM4#

main63342-95404-03iYU62..TW1199109-199505

GRAY,TRIM1#

main63342-95404-06iYU62..TW1198808-199109

BROWN,TRIM4#

63343PAD, ROOF SILENCER, NO.3

main63343-37040iRU85,YU85199407-199505

main63343-95400iRU85,WU9#,YU85198808-199407

63343ASILENCER, ROOF, NO.3

main63343-37010-06iYU71199005-199109

BROWN,TRIM4#,FRONT

main63343-37010-B0iYU71199109-199309

GRAY,TRIM1#,FRONT

main63343-37020-06iYU71199005-199109

BROWN,TRIM4#,REAR

main63343-37020-B0iYU71199109-199309

GRAY,TRIM1#,REAR

main63343-92600-06iYU71198808-199005

BROWN,TRIM4#,FRONT

main63343-92601-06iYU71198808-199005

BROWN,TRIM4#,REAR

main63343-92604-06iYU71198808-199007

SAUDI ARABIA & GULF SPEC,BROWN,TRIM4#,FRONT

main63343-92607-06iYU71198808-199007

SAUDI ARABIA & GULF SPEC,BROWN,TRIM4#,REAR

63344PAD, ROOF SILENCER, NO.4

main63344-37030iRU85,YU85199407-199505

main63344-95401iRU85,WU9#,YU85198808-199407

63344ASILENCER, ROOF, NO.4

main63344-37010-06iYU71199005-199109

BROWN,TRIM4#

main63344-37010-B0iYU71199109-199309

GRAY,TRIM1#

main63344-92600-06iYU71198808-199005

BROWN,TRIM4#

main63344-92603-06iYU71198808-199007

SAUDI ARABIA & GULF SPEC,BROWN,TRIM4#

63345PAD, ROOF SILENCER, NO.5

main63345-37010iRU85,YU85199407-199505

main63345-95400iRU85,WU9#,YU85198808-199407

63347BPAD, ROOF SIDE RAIL SILENCER, RH

main63347-37010iRU85,YU85199407-199505

main63347-95400iRU85,WU9#,YU85198808-199407

63348CPAD, ROOF SIDE RAIL SILENCER, LH

main63348-37010iRU85,YU85199407-199505

main63348-95400iRU85,WU9#,YU85198808-199407

63357BSILENCER, ROOF

18 parts on this diagram · 2 diagrams in section
