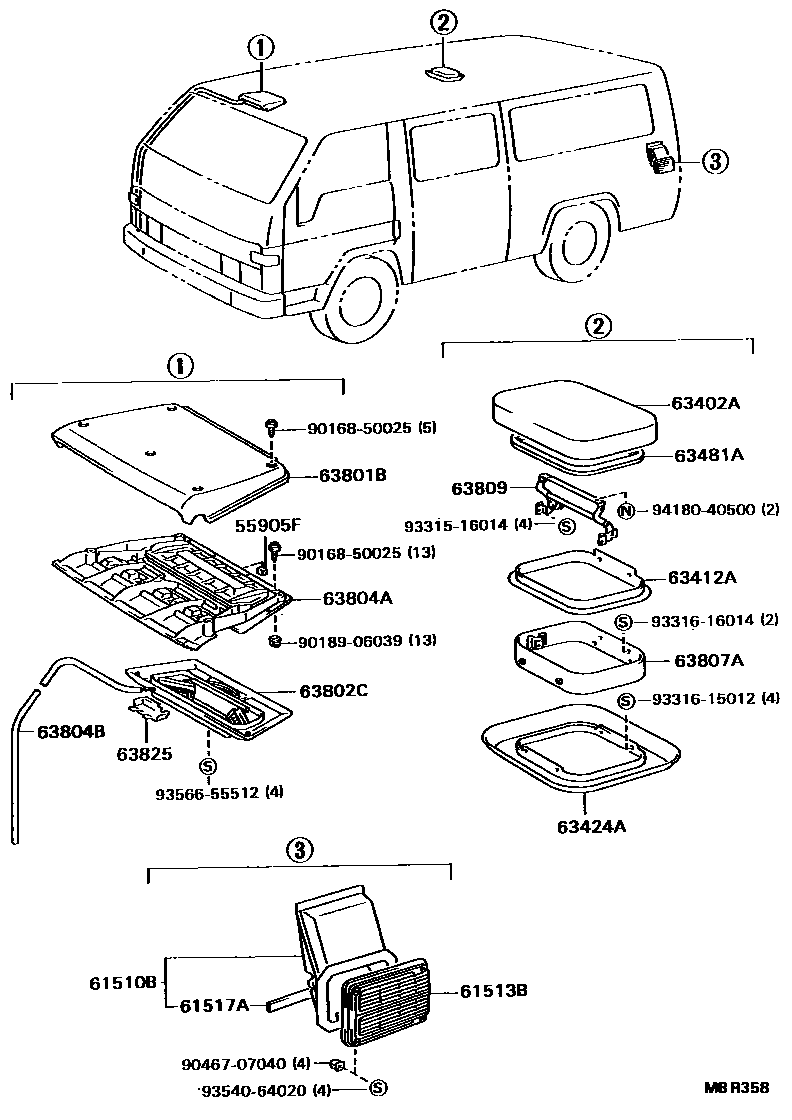

REAR VENTILATOR & ROOF VENTILATOR
55905FKNOB SUB-ASSY, CONTROL
TAIWAN PACKAGE
61510BDUCT ASSY, REAR VENTILATOR ORNAMENT, LH
61513BORNAMENT, REAR VENTILATOR, LH
61517APACKING, REAR VENTILATOR
63402ACOVER SUB-ASSY, ROOF VENTILATOR
63412ADUCT, ROOF VENTILATOR, OUTER REAR
63424ACOVER, ROOF VENTILATOR, INNER REAR
63481AWEATHERSTRIP, ROOF VENTILATOR
63801BCOVER SUB-ASSY, ROOF VENTILATOR
TAIWAN PACKAGE
63802CCOVER SUB-ASSY, ROOF VENTILATOR, NO.2
BROWN,TRIM4#
GRAY,TRIM1#
63804AHOUSING SUB-ASSY, ROOF VENTILATOR
TAIWAN PACKAGE
63804BHOSE, DRAIN(FOR ROOF VENTILATOR)
63807ADUCT SUB-ASSY, ROOF
63809LINK SUB-ASSY, ROOF
63825COVER, ROOF VENTILATOR DRAIN HOSE
GRAY,TRIM1#
BROWN,TRIM4#
9016850025
main90168-50025
9018906039
main90189-06039
9046707040
main90467-07040
9331516014
main93315-16014
9331615012
main93316-15012
9331616014
main93316-16014
9354064020
main93540-64020
9356655512
main93566-55512
9418040500
main94180-40500
24 parts on this diagram · 1 diagram in section
