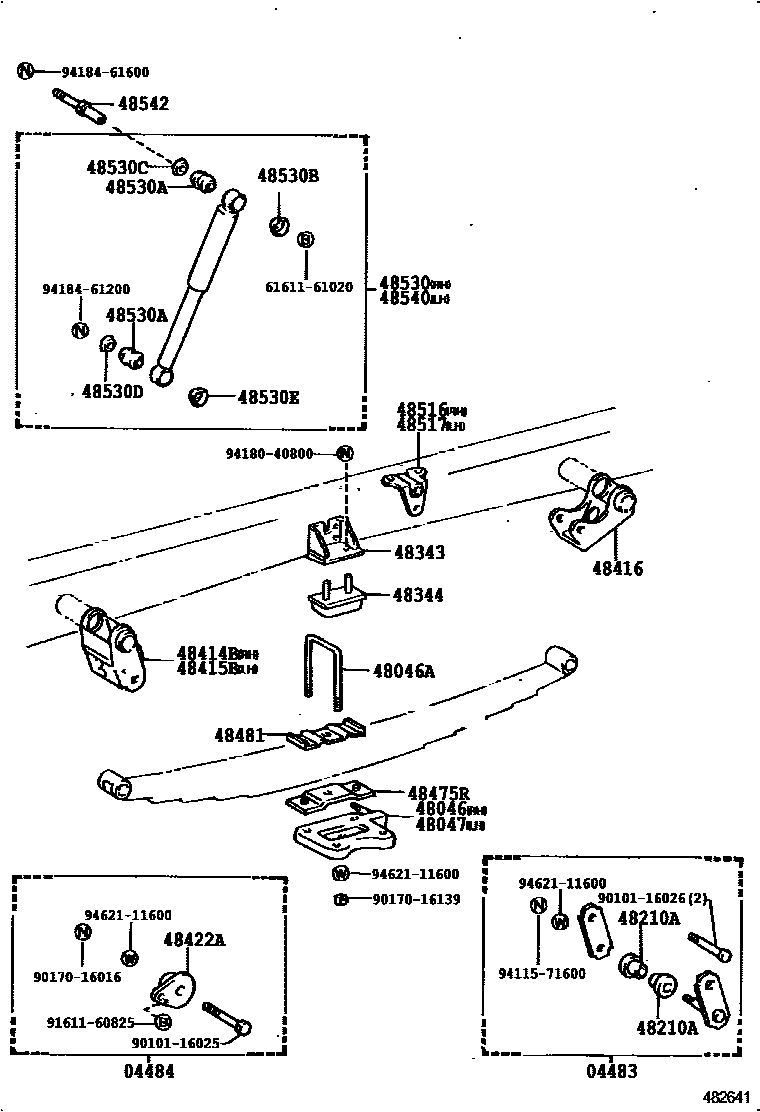

REAR SPRING & SHOCK ABSORBER
04483SHACKLE KIT, REAR SPRING
04484PIN KIT, REAR SPRING
48046SEAT SUB-ASSY, SPRING U BOLT, RH
HEAVY DUTY SPEC
HEAVY DUTY SPEC
48046ABOLT, U(FOR REAR SPRING)
L=245
L=300,HEAVY DUTY SPEC
L=280
L=295,HEAVY DUTY SPEC
L=305,HEAVY DUTY SPEC
L=275
L=265
L=215
L=255
L=240
L=368
48047SEAT SUB-ASSY, SPRING U BOLT, LH
HEAVY DUTY SPEC
48210SPRING ASSY, REAR RH
MAIN 5+HELPER 7-LEAF,HEAVY DUTY SPEC
MAIN 5+HELPER 6-LEAF,HEAVY DUTY SPEC
MAIN 5+HELPER 5-LEAF
MAIN 7+HELPER 7-LEAF
MAIN 7+HELPER 6-LEAF
6-LEAF
6-LEAF
MAIN 4+HELPER 5-LEAF
MAIN 6+HELPER10-LEAF
MAIN 5+HELPER 5-LEAF,HEAVY DUTY SPEC
MAIN 4+HELPER 5-LEAF
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48343BRACKET, REAR AXLE CUSHION
48344STOPPER, BUMPER, REAR
48414BBRACKET, SPRING, NO.3 RH
48415BBRACKET, SPRING, NO.3 LH
48416BRACKET, SPRING, NO.4
RH
LH
48422ASUPPORT, REAR SPRING PIN
48475RPLATE, DISTANCE(FOR REAR)
48481SEAT, REAR SPRING, UPPER
HEAVY DUTY SPEC
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540ABSORBER ASSY, SHOCK, REAR LH
48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR
6161161020PANEL, QUARTER, RH
main61611-61020
9010116025
main90101-16025
9010116026
main90101-16026
9017016016
main90170-16016
9017016139
main90170-16139
9161160825
main91611-60825
9411571600
main94115-71600
9418040800
main94180-40800
9418461200
main94184-61200
9418461600
main94184-61600
9462111600
main94621-11600
36 parts on this diagram · 11 diagrams in section
