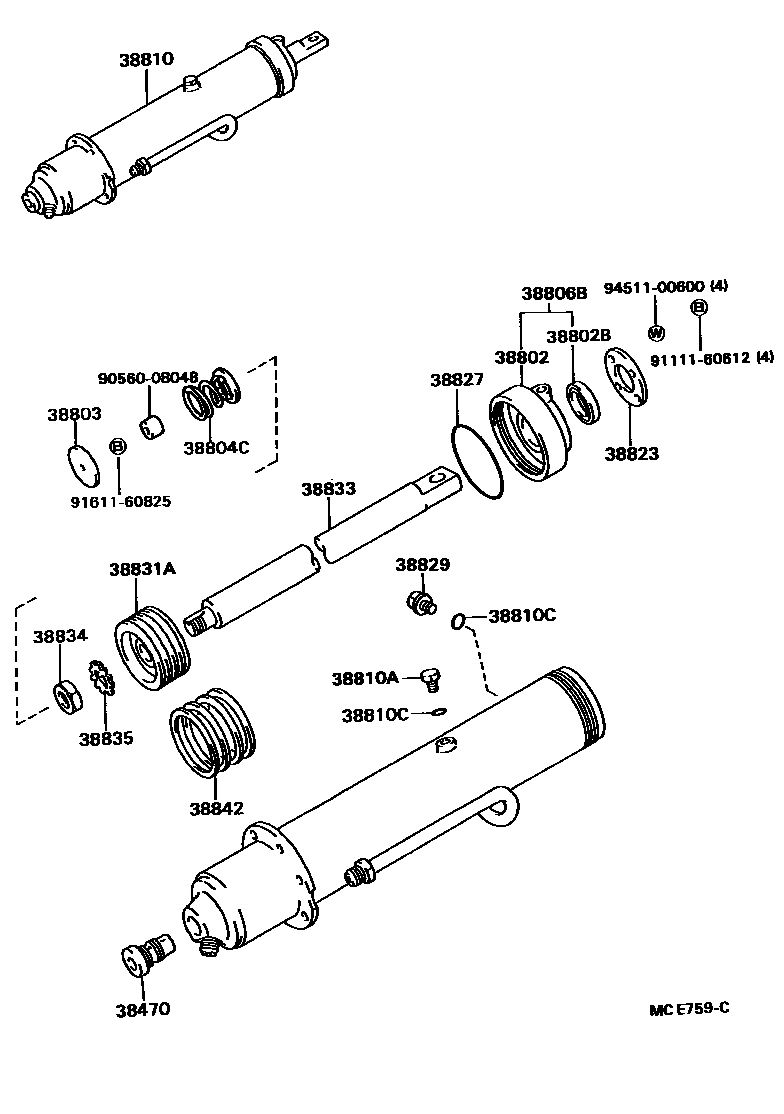

HOIST CYLINDER

0001 1 0002 1

38470VALVE ASSY, DUMP FLOW CONTROL

main38470-96300iYU63198808-199505

38802HEAD SUB-ASSY, CYLINDER

main38802-96303iYU63198808-199210

38802BSEAL, OIL (FOR CYLINDER HEAD)

main90311-50130iYU63198808-199210

38803VALVE SUB-ASSY, SLOW RETURN

main38803-96302iYU63198808-199210

38804CRETAINER SUB-ASSY, SLOW RETURN SPRING

main38804-96304iYU63198808-199210

38806BHEAD SUB-ASSY, HOIST CYLINDER

main38806-96301iYU63198808-199210

main38851-93102iYU63199210-199505

38810CYLINDER ASSY, HOIST

main38810-93106iYU63199210-199505

main38810-96313iYU63198808-198910

main38810-96318iYU63198910-199210

38810APLUG, NO.1 (FOR HOIST CYLINDER)

main90341-10019iYU63198808-199210

main90341-20001iYU63199210-199505

38810CRING, O (FOR HOIST CYLINDER)

main38764-96301iYU63198808-199210

ID=21.8

main90301-10005iYU63198808-199210

ID=10.8

main90301-99077iYU63199210-199505

38823COVER, CYLINDER HEAD

main38823-96302iYU63198808-199210

38827RING, O (FOR HOIST CYLINDER)

main96711-31135iYU63198808-199210

38829PLUG, SEAL, HOIST CYLINDER

main38829-96301iYU63198808-199210

38831APISTON, HOIST CYLINDER

main38830-93100iYU63199210-199505

main38831-96307iYU63198808-199210

38833ROD, HOIST CYLINDER PISTON

main38833-96302iYU63198808-199210

38834NUT, DISMOUNTING

main90170-35188iYU63198808-199210

38835WASHER, LOCK (FOR HOIST PISTON SET NUT)

main38835-96301iYU63198808-199210

38842RING, HOIST CYLINDER PISTON

main38842-96301×4iYU63198808-199210

9056008048

main90560-08048

9111160612

main91111-60612

9161160825

main91611-60825

9451100600

main94511-00600

21 parts on this diagram · 2 diagrams in section
