CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iRU85,YU6#,71,82199006-199011

main04313-17010iYU6#,71,8#199011-199505

main04313-22020iRU85,YU6#,71,82198808-199006

main04313-36100iWU9#198808-199206

main04313-36140iWU9#199206-199305

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36211iWU9#198808-199206

main31470-36212iWU9#199206-199305

main31470-36230iRU85199011-199505

main31470-36300iYU6#,71,8#199011-199505

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820×2iRU85,YU6#,71,8#198808-199505

*8-1.25PX20-20

main91611-60825×2iWU9#198808-199305

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iRU85,WU9#199011-199505

main31473-35050iYU6#,71,8#199011-199505

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iRU85,WU9#,YU6#,71,8#198808-199505

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRU85,WU9#,YU6#,71,8#198808-199505

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRU85,WU9#,YU6#,71,8#198808-199505

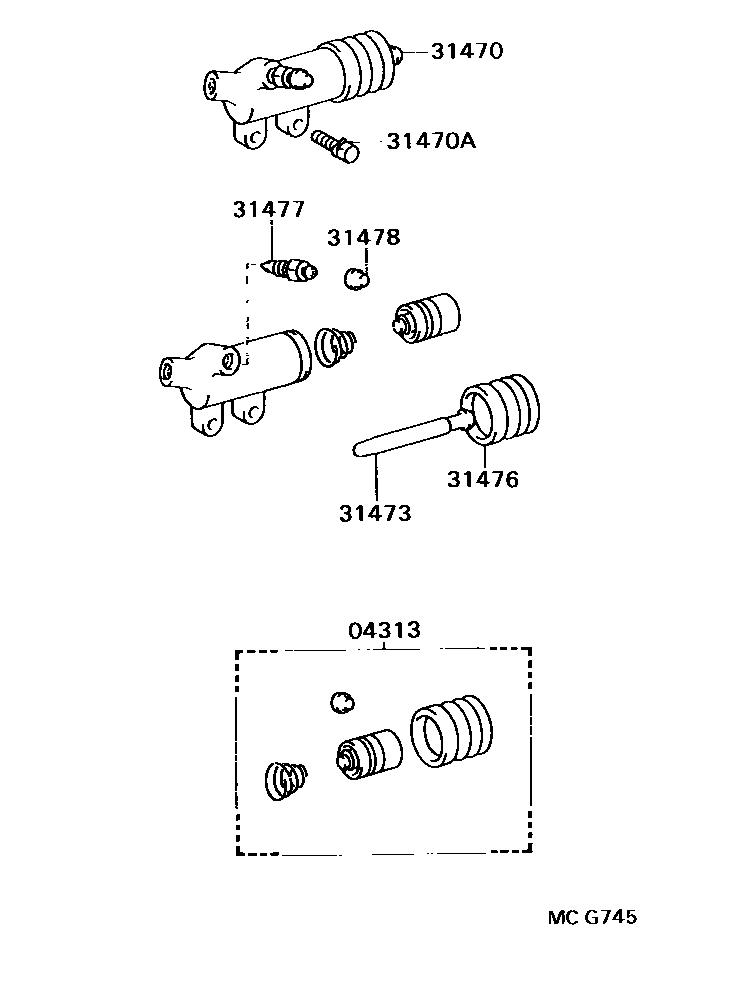

7 parts on this diagram · 1 diagram in section
