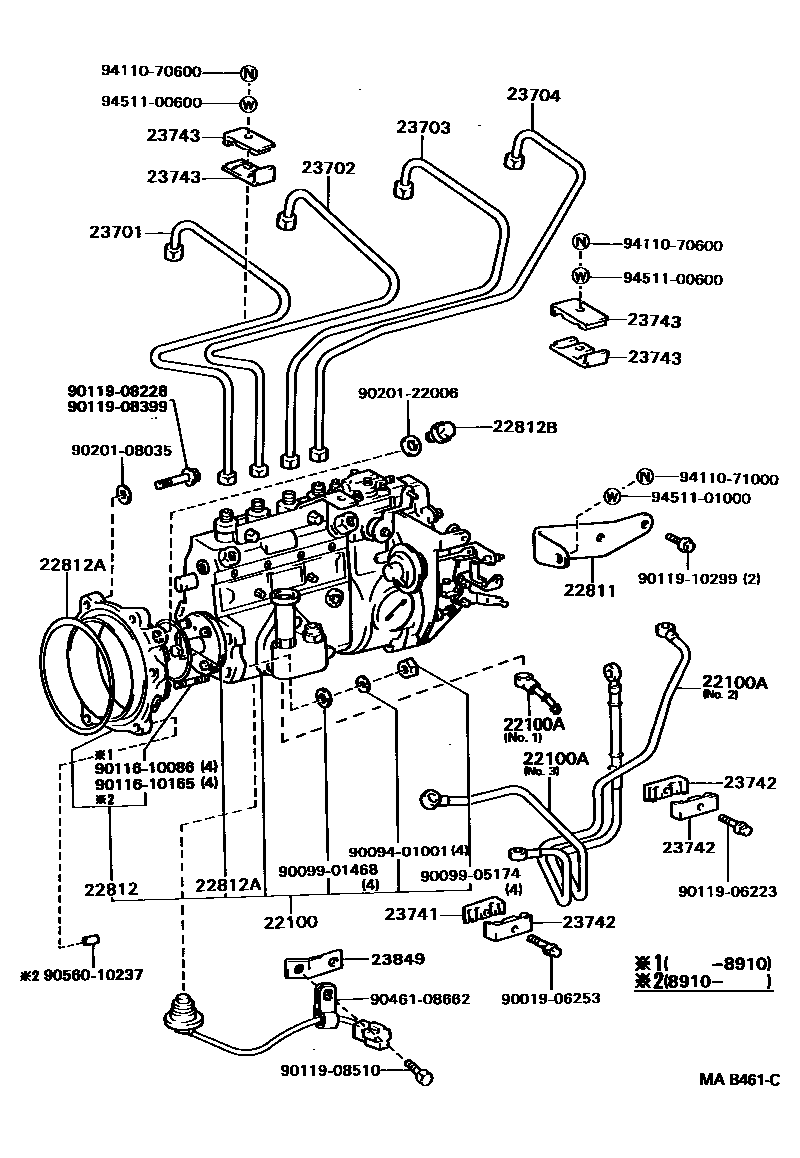

INJECTION PUMP ASSEMBLY

Parts diagram

22100PUMP ASSY, INJECTION OR SUPPLY

main22010-78100i198808-198910

main22010-78141i198910-198912

main22010-78142i198912-199305

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23814-78011i198808-199305

NO.2

main23815-78010i198808-199305

NO.1

main23826-78010i198808-199305

NO.3

22811STAY, INJECTION PUMP, NO.1

main22811-78010i198808-199305

22812RETAINER, INJECTION PUMP

main22802-78010i198808-198910

main22802-78020i198910-199305

22812ARING, O

main90099-14072i198808-199305

INJECTION PUMP SIDE

main90301-99019i198808-199305

CASE SIDE

22812BPLUG, W/HEAD STRAIGHT SCREW(FOR INJECTION PUMP RETAINER)

main90341-22002i198808-199305

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-78010i198808-198910

main23701-78020i198910-199305

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-78010i198808-198910

main23702-78020i198910-199305

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-78010i198808-198910

main23703-78020i198910-199305

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-78010i198808-198910

main23704-78020i198910-199305

23741CLAMP, INJECTION PIPE, NO.1

main90929-01058i198808-199305

23742CLAMP, INJECTION PIPE, NO.2

main90929-01057×3i198808-199305

23743CLAMP, INJECTION PIPE, NO.3

main90929-01056×4i198808-199305

23849SUPPORT, FUEL

main23849-78010i198808-199305

9001906253

main90019-06253

9009401001

main90094-01001

9009901468

main90099-01468

9009905174

main90099-05174

9011610086

main90116-10086

9011610165

main90116-10165

9011906223

main90119-06223

9011908228

main90119-08228

9011908399

main90119-08399

9011908510

main90119-08510

9011910299

main90119-10299

9020108035

main90201-08035

9020122006

main90201-22006

9046108662

main90461-08662

9056010237

main90560-10237

9411070600

main94110-70600

9411071000

main94110-71000

9451100600

main94511-00600

9451101000

main94511-01000

33 parts on this diagram · 1 diagram in section
