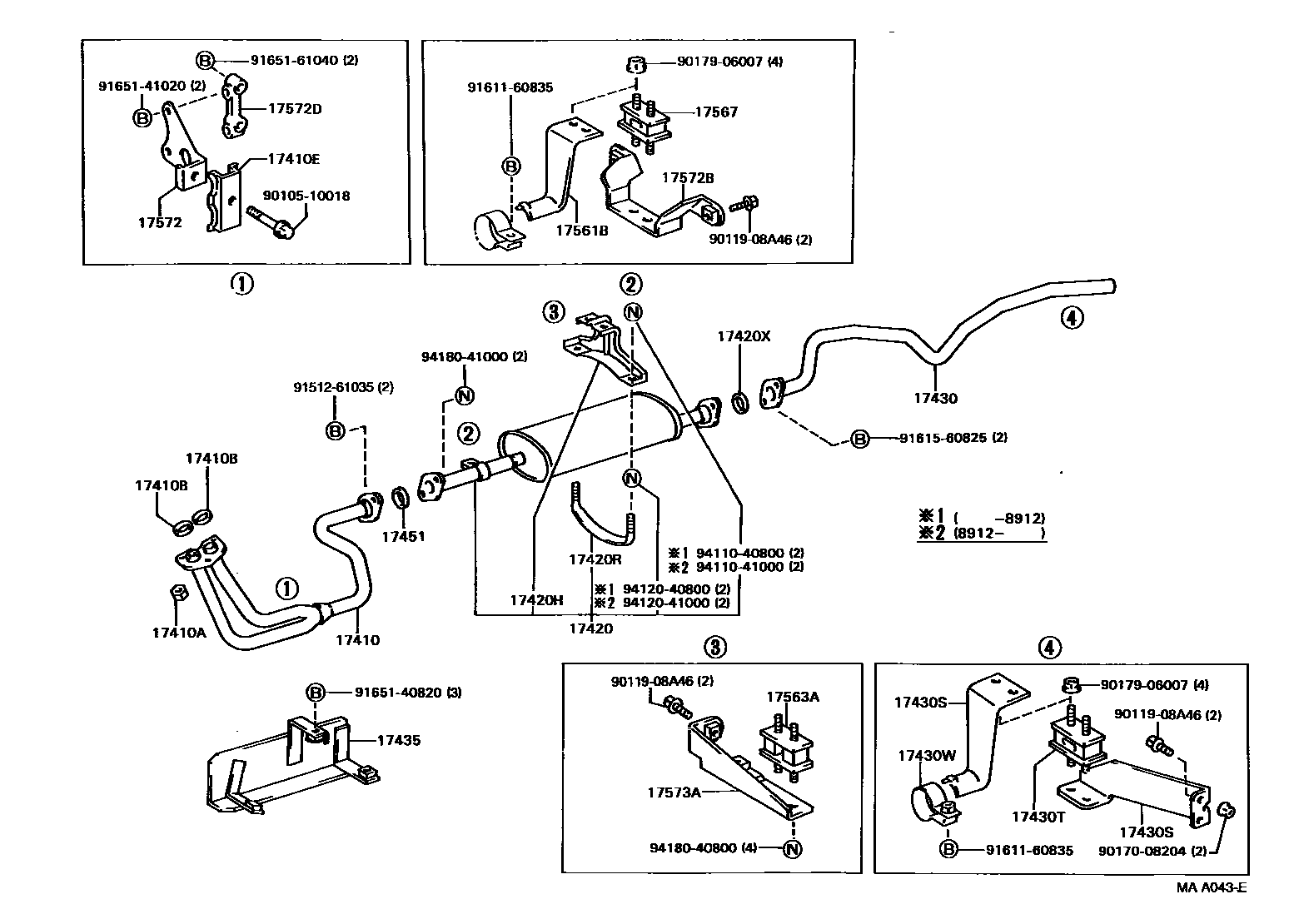

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-35050i22R..RU85198808-199505

main17401-78021i1W..WU9#199208-199305

main17401-78030i1W..WU9#198808-199208

main17410-73090i4Y..YU62,71,82198808-199208

main17410-73091i4Y..YU62,71,8#199208-199505

main17410-73110i4Y..YU63198808-199208

main17410-73111i4Y..YU63199208-199505

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i22R,1W,4Y..RU85,WU9#,YU6#,71,8#198808-199505

17410BGASKET, EXHAUST PIPE

main90917-06001×2i22R,4Y..RU85,YU6#,71,82198808-199012

main90917-06005i1W..WU9#198808-199012

main90917-06038×2i22R,4Y..RU85,YU6#,71,8#199012-199505

main90917-06042i1W..WU9#199012-199305

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main17589-27010i22R,4Y..RU85,YU6#,71,8#198808-199505

17420PIPE ASSY, EXHAUST, CENTER

main17403-56290i1W..WU90198808-198910

main17403-56310i1W..WU95198808-198910

main17420-56161i22R,4Y..RU85,YU85198808-199505

main17420-58080i4Y..YU63;4Y..YU62,71..ST198808-199505

main17420-58110i4Y..YU62..WT198808-199505

main17420-73070i4Y..YU82198808-199505

17420HCLAMP NO.1, EXHAUST PIPE CENTER, CENTER

main17576-56020i4Y..YU6#,71,82198808-198912

main17576-56021i4Y..YU6#,71,82198912-199505

main17576-56040i22R,1W,4Y..RU85,WU9#,YU85198808-199505

17420RCLAMP NO.2, EXHAUST PIPE CENTER, CENTER

main17504-56010i4Y..YU6#,71,82198808-198912

main17504-56011i4Y..YU6#,71,82198912-199505

main17504-56020i22R,1W,4Y..RU85,WU9#,YU85198808-199505

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06008i22R,1W,4Y..RU85,WU9#,YU6#,71,82198808-199012

main90917-06045i22R,1W,4Y..RU85,WU9#,YU6#,71,8#199104-199505

main90917-06047i22R,1W,4Y..RU85,WU9#,YU6#,71,82199012-199104

17430PIPE ASSY, EXHAUST, TAIL

main17405-58210i22R,1W,4Y..RU85,WU9#,YU85198808-199505

main17430-58060i4Y..YU71198808-199309

main17430-58070i4Y..YU62..ST198808-199505

main17430-58080i4Y..YU62..WT198808-199505

main17430-58120i4Y..YU63198808-199505

main17430-58130i4Y..YU82198808-199505

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17561-47010i22R,1W,4Y..RU85,WU9#,YU85198808-199505

PIPE SIDE

main17561-56010i4Y..YU62,71,82; 4Y..YU63198808-199505

PIPE SIDE

main17574-58040i22R,1W,4Y..RU85,WU9#,YU62,8#..WT198808-199505

BODY SIDE

main17574-58050i4Y..YU62,71..ST198808-199505

BODY SIDE

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17567-61030i22R,1W,4Y..RU85,WU9#,YU6#,71,8#198808-199505

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main90461-32005i4Y..YU6#,71,82198808-199505

main90461-32007i22R,1W,4Y..RU85,WU9#,YU85198808-199505

17435INSULATOR, EXHAUST PIPE HEAT

main17435-35010i22R,4Y..RU85,YU85198808-199505

17451GASKET, EXHAUST PIPE

main90917-06008i4Y..YU6#,71,82198910-199012

main90917-06012i22R..RU85198808-199012

main90917-06045i22R,4Y..RU85,YU6#,71,8#199104-199505

main90917-06047i22R,4Y..RU85,YU6#,71,82199012-199104

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-47010i22R,1W,4Y..RU85,WU9#,YU85198808-199505

main17561-56010i4Y..YU82198808-199505

17563ASUPPORT, EXHAUST PIPE, NO.3

main17563-58010i4Y..YU6#,71,82198808-199505

main17567-58010i22R,1W,4Y..RU85,WU9#,YU85198808-199505

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-61030i22R,1W,4Y..RU85,WU9#,YU8#198808-199505

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-58080i1W..WU9#198808-199305

main17571-73090i22R,4Y..RU85,YU6#,71,8#198808-199505

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-58030i22R,1W,4Y..RU85,WU9#,YU85198808-199505

main17572-73020i4Y..YU82198808-199505

17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1

main17579-73010i22R,4Y..RU85,YU6#,71,8#198808-199505

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-58040i4Y..YU62,82..WT198808-199505

main17573-58060i22R,1W..RU85,WU9#198808-199001

main17573-58061i22R,1W,4Y..RU85,WU9#,YU85199001-199505

9010510018

main90105-10018

9011908A46

main90119-08A46

9017008204

main90170-08204

9017906007

main90179-06007

9151261035

main91512-61035

9161160835

main91611-60835

9161560825

main91615-60825

9165140820

main91651-40820

9165141020

main91651-41020

9165161040

main91651-61040

9411040800

main94110-40800

9411041000

main94110-41000

9412040800

main94120-40800

9412041000

main94120-41000

9418040800

main94180-40800

9418041000

main94180-41000

37 parts on this diagram · 6 diagrams in section
