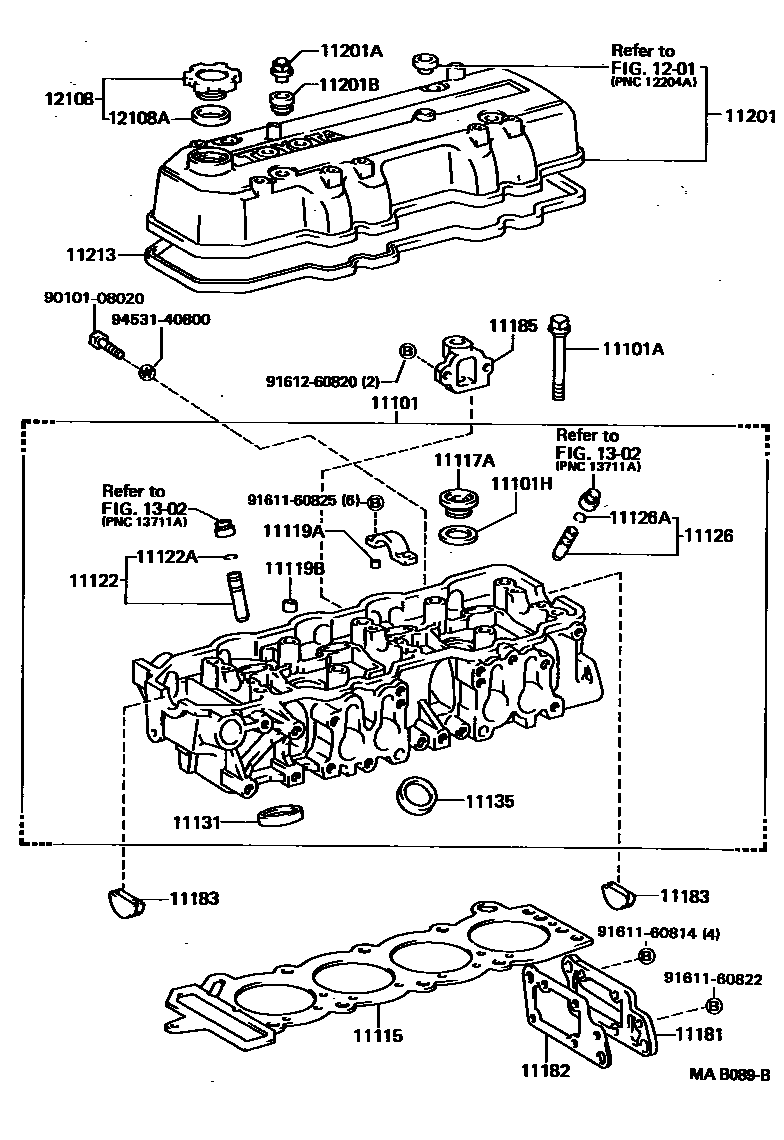

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-35060i22R..RU85198808-199505

sub11101-35080

main11101-73020i4Y..YU6#,71,82198808-199212

main11101-73021i4Y..YU6#,71,8#199212-199505

main11110-78020i1W..WU9#198808-198910

sub11110-78040

main11110-78040i1W..WU9#198910-199412

sub11110-89020

sub90031-70102

sub90035-60052

sub90560-10037

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i4Y..YU6#,71,8#198808-199505

main90105-12073i1W..WU9#198808-199305

sub90031-01199

main90105-12092i22R..RU85198808-199505

11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-33133i22R..RU85198808-199505

11115GASKET, CYLINDER HEAD

main11115-35020i22R..RU85198808-199102

sub11115-35021

main11115-35021i22R..RU85199102-199310

sub11115-35022

main11115-35022i22R..RU85199310-199505

main11115-73030i4Y..YU6#,71,8#198808-199505

main11115-78011i1W..WU9#198808-199012

sub11115-78012

main11115-78012i1W..WU9#199012-199305

subS1111-52340

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-32070i22R..RU85198808-199505

main90344-53011i4Y..YU6#,71,8#198808-199505

11119APIN, STRAIGHT, NO.1

main90253-11021i22R..RU85198808-199505

L=8,OD=11

11119BPIN, STRAIGHT, NO.2

main90253-16020i22R..RU85198808-199505

L=16,OD=15.5

11122BUSH, INTAKE VALVE GUIDE

main11122-35020i22R..RU85198808-199505

STD

main11122-71020i4Y..YU6#,71,8#198808-199505

STD

main11122-78010i1W..WU9#198808-199305

STD

sub11122-89102

main11123-35020i22R..RU85198808-199505

O/S 0.05

main11123-71020i4Y..YU6#,71,8#198808-199505

O/S 0.05

11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

main90520-12049i4Y..YU6#,71,8#198808-199505

11126BUSH, EXHAUST VALVE GUIDE

main11122-38021i22R..RU85198808-199505

STD

main11122-78010i1W..WU9#198808-199305

STD

sub11122-89102

main11123-38021i22R..RU85198808-199505

O/S 0.05

main11126-71020i4Y..YU6#,71,8#198808-199505

STD

main11127-71020i4Y..YU6#,71,8#198808-199505

O/S 0.05

11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

main90520-12049i22R..RU85198808-199505

11131SEAT, INTAKE VALVE

main11131-35010i22R..RU85198808-198904

STD

sub11131-35011

main11131-35011i22R..RU85198904-199505

STD

main11131-63010i4Y..YU6#,71,8#198808-199505

STD

main11131-78010i1W..WU9#198808-199305

STD

sub11131-78050

main11132-35010i22R..RU85198808-198904

O/S 0.03

sub11132-35011

main11132-35011i22R..RU85198904-199505

O/S 0.03

main11132-63010i4Y..YU6#,71,8#198808-199505

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-35010i22R..RU85198808-199505

STD

sub11135-35020

main11135-71010i4Y..YU6#,71,8#198808-199505

STD

main11135-78010i1W..WU9#198808-199305

STD

sub11135-78020

main11136-35010i22R..RU85198808-199505

O/S 0.03

sub11136-35020

main11136-71010i4Y..YU6#,71,8#198808-199505

O/S 0.03

11181PLATE, CYLINDER HEAD, REAR

main11181-35040i22R..RU85..GEN198808-199505

main11181-73080i4Y..YU6#,71,8#198808-199505

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-35050i22R..RU85..GEN198808-199505

main11182-71010i4Y..YU6#,71,82198808-198912

sub11182-71011

main11182-71011i4Y..YU6#,71,8#198912-199505

11183PLUG, SEMICIRCULAR

main11183-38010i22R..RU85198808-199505

11185COVER, CYLINDER HEAD SIDE

main11184-35020i22R..RU85..GEN198808-199505

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-35031i22R..RU85198808-199209

sub11201-35032

main11201-35032i22R..RU85199209-199505

main11201-71011i4Y..YU6#,71,8#199208-199505

sub11201-71012

main11201-79035i4Y..YU6#,71,82198808-199208

sub11201-71011

sub11213-71020

sub90210-09001

main11211-78010i1W..WU9#198808-199305

sub11211-E0240

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007i4Y..YU6#,71,8#198808-199505

main90176-08041i22R..RU85198808-199505

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-08026i22R..RU85198808-199309

main90210-08040i22R..RU85199309-199505

main90210-09001i4Y..YU6#,71,82198808-199211

sub90210-09019

main90210-09019i4Y..YU6#,71,8#199211-199505

11213GASKET, CYLINDER HEAD COVER

main11213-35010i22R..RU85198808-199505

main11213-71020i4Y..YU6#,71,8#198808-199505

main11213-78010i1W..WU9#198808-199305

subS1121-31550

1201

12108CAP SUB-ASSY, OIL FILLER

main12108-78010i1W..WU9#198808-199305

sub12180-78010

main12180-13030i22R..RU85198808-199003

sub12180-55010

main12180-61010i4Y..YU6#,71,82198808-199003

sub12180-70020

main12180-62010i22R..RU85199003-199107

sub12180-62011

main12180-62011i22R..RU85199107-199312

sub12180-65011

main12180-65011i22R..RU85199312-199505

main12180-73010i4Y..YU6#,71,82199011-199103

sub12180-73011

main12180-73011i4Y..YU6#,71,8#199103-199505

main12180-75010i4Y..YU6#,71,82199003-199011

sub12180-73011

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i4Y..YU6#,71,82199003-199011

main12195-71020i4Y..YU6#,71,82198808-199003

main12195-73010i4Y..YU6#,71,8#199011-199505

main90430-37140i22R..RU85198808-199505

1302

9010108020

main90101-08020

9161160814

main91611-60814

9161160822

main91611-60822

9161160825

main91611-60825

9161260820

main91612-60820

9453140800

main94531-40800

31 parts on this diagram · 3 diagrams in section
