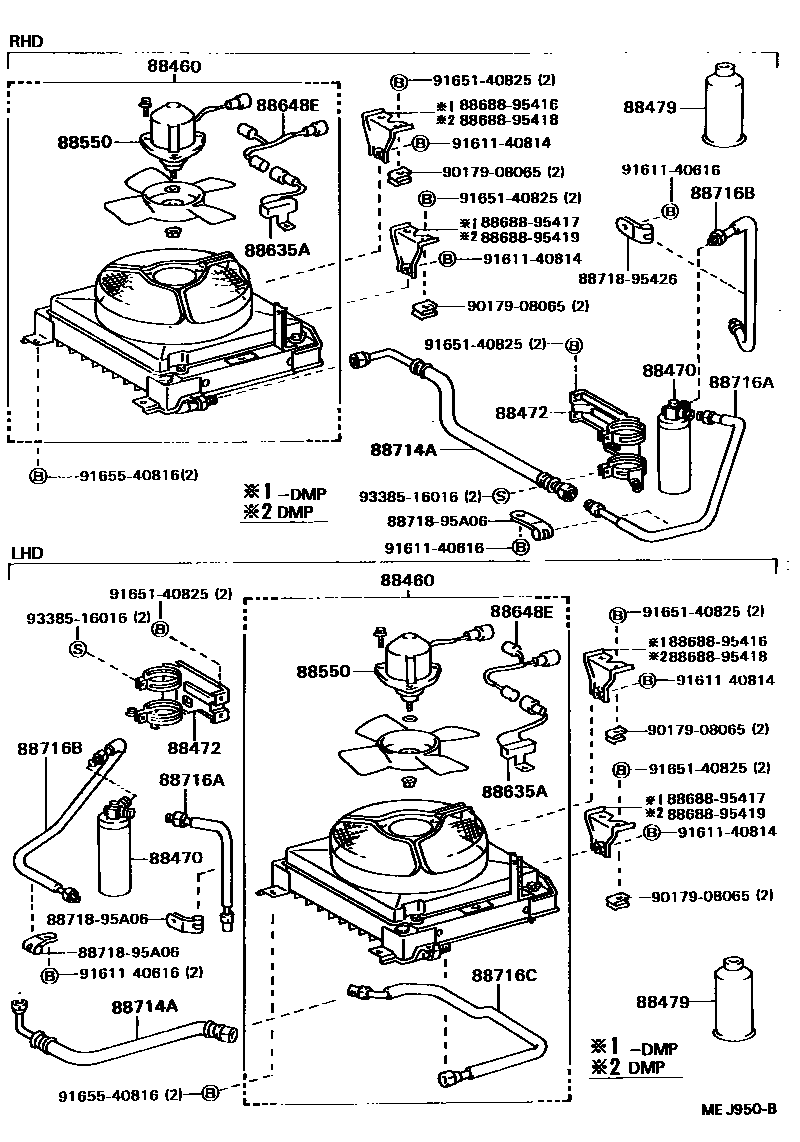

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

88460CONDENSER ASSY, COOLER

main88460-95405iYU62..ARL; YU81..RHD..GEN; YU81..SA198708-198808

main88460-95406iYU6#,81..LHD198708-198808

main88460-95408iRU85..SA; WU90..ARL; WU90..RHD..CBU; WU90..RHD..GEN..IV3198708-198808

main88460-95410iRU85..GEN; WU9#..LHD198708-198808

main88460-95413iWU90..LHD198708-198808

CHINA SPEC

88470RECEIVER & DRYER ASSY, COOLER

main88471-95400iRU85,YU6#,81..GEN; RU85,YU81..SA; WU90..LHD; WU95..GEN;WU90..RHD..GEN; YU62..ARL198708-198808

MAKER OPTION

main88471-95401iWU90..ARL; WU90..RHD..GEN..IV3198708-198808

DEALER OPTION

88472BRACKET, RECEIVER TANK, NO.1

main88472-95400iYU62..ARL; YU81..RHD..GEN; YU81..SA198708-198808

main88472-95402iYU6#,81..LHD198708-198808

main88472-95404iWU90..ARL; WU90..RHD..GEN..IV3198708-198808

DEALER OPTION

main88472-95406iRU85..SA; WU90..RHD..GEN198708-198808

MAKER OPTION

main88472-95407iRU85..GEN; WU90..LHD; WU95..GEN198708-198808

main88472-95408iYU62..ARL198808-198808

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iWU9#..LHD;WU90..RHD..CBU;RU85,YU6#,71,81..GEN,SA; WU90,YU62..ARL; WU90..RHD..GEN..IV3198708-198808

400G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-95406iRU85,YU6#,81..LHD; RU85,YU81..SA; WU9#..GEN; YU81..RHD..GEN198708-198808

FR HEATER,W(AIR CONDITIONER); W(HEATER & A/C=MAKER OPT)

main87104-95407iWU90..LHD198708-198808

FR HEATER,CHAINA SPEC,W(AIR CONDITIONER)

88635ARESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)

main87138-95410iRU85,YU6#,81..LHD; RU85,YU81..SA; WU9#..GEN198708-198808

88648EWIRING, COOLER

main88648-95419iRU85,YU6#,81..GEN; RU85,YU81..SA; WU90..LHD; WU95..GEN;WU90..RHD..GEN198708-198808

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-95407iYU81..RHD..GEN; YU81..SA198708-198808

main88721-95408iYU71198806-198808

main88721-95409iRU85..SA; WU90..ARL; WU90..RHD..CBU; WU90..RHD..GEN..IV3198708-198808

main88721-95410iRU85..GEN; WU90..LHD; WU95..GEN198708-198808

main88721-95413iYU62..ARL198708-198808

W(A/C=DEALER OPT)

88714AHOSE, COOLER REFRIGERANT LIQUID, NO.2

main88714-95460iYU71198708-198808

main88721-95405iYU62..ARL; YU81..RHD..GEN; YU81..SA198708-198808

W(A/C=MAKER OPT); W(HEATER & A/C=MAKER OPT)

main88721-95406iYU6#,81..LHD198708-198808

W(HEATER & A/C=MAKER OPT)

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-95403iYU62..ARL; YU81..RHD..GEN; YU81..SA198708-198808

main88716-95404iYU71198708-198806

main88716-95407iWU90..ARL; WU90..RHD..GEN..IV3198708-198808

DEALER OPTION

main88716-95410iRU85..SA; WU90..RHD..GEN198708-198808

MAKER OPTION

main88716-95411iRU85..GEN; WU90..LHD; WU95..GEN198708-198808

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-95405iYU62..ARL; YU81..RHD..GEN; YU81..SA198708-198808

main88716-95406iYU6#,81..LHD198708-198808

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-95409iRU85,YU6#,81..LHD; WU90..LHD; WU95..GEN198708-198808

8868895416BRACKET, COOLER DIAPHRAGM

main88688-95416

8868895417BRACKET, COOLER DIAPHRAGM

main88688-95417

8868895418BRACKET, COOLER DIAPHRAGM

main88688-95418

8868895419BRACKET, COOLER DIAPHRAGM

main88688-95419

8871895426PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95426

8871895A06PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95A06

9017908065

main90179-08065

9161140616

main91611-40616

9161140814

main91611-40814

9165140825

main91651-40825

9165540816

main91655-40816

9338516016

main93385-16016

24 parts on this diagram · 7 diagrams in section
