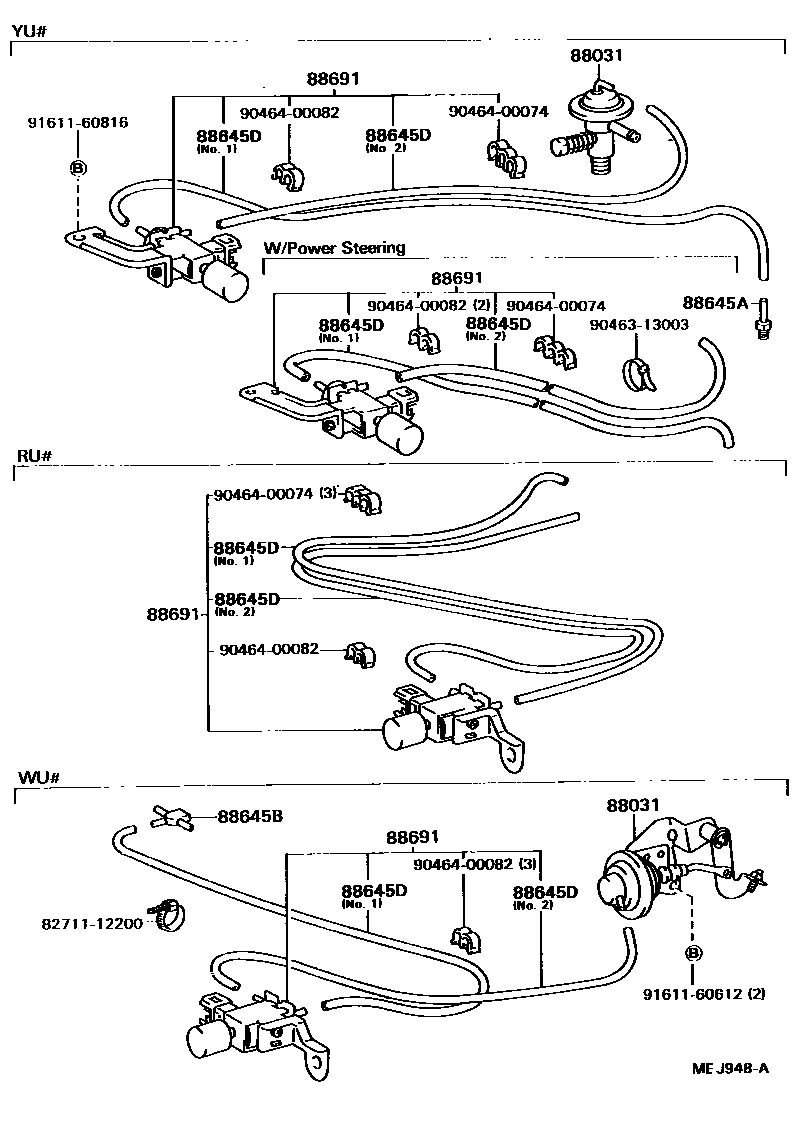

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main88031-35070iYU6#,71,81..GEN; YU62..ARL; YU81..SA198708-198808

main88031-36060iWU9#..LHD;WU90..RHD..CBU; WU90..ARL; WU90..RHD..GEN..IV3198708-198808

88645AUNION (FOR IDLE UP DEVICE)

main90404-51093iYU62..ARL198708-198808

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04001iWU90..LHD; WU95..GEN;WU90..RHD..GEN198802-198808

W(HEATER & A/C=MAKER OPT)

main90413-04005iWU90..LHD; WU90..RHD..GEN..IV3; WU95..GEN;WU90..RHD..CBU198708-198802

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10060iWU90..LHD; WU95..GEN;WU90..RHD..GEN; YU6#,81..LHD; YU81..RHD..GEN; YU81..SA198708-198808

*H,L=600,MARK=#0,NO.1

main95411-10084iRU85..GEN; RU85..SA198708-198808

L=840,MARK=#0,NO.1

main95411-19956iYU71198806-198808

*H,L=560,MARK=#*,NO.2

main95411-19960iYU81..RHD..GEN; YU81..SA198708-198808

*H,L=600,MARK=#*,NO.2

main95411-19995iRU85..GEN; RU85..SA; WU90..LHD; WU95..GEN;WU90..RHD..GEN198708-198808

*H,L=950,MARK=#*,NO.2

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95406iYU81..RHD..GEN; YU81..SA198708-198808

main88690-95416iWU9#..LHD;WU90..RHD..CBU; WU90..ARL; WU90..RHD..GEN..IV3198708-198808

W(HEATER & A/C=MAKER OPT)

main88690-95418iRU85..GEN; RU85..SA198708-198808

main88690-95425iYU62..ARL198708-198808

main88690-95427iWU90..LHD198708-198808

CHINA SPEC

main88690-95430iYU6#,81..LHD198708-198808

W(*AIC=MAKER OPTION)

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9046313003

main90463-13003

9046400074

main90464-00074

9046400082

main90464-00082

9161160612

main91611-60612

9161160816

main91611-60816

11 parts on this diagram · 2 diagrams in section
