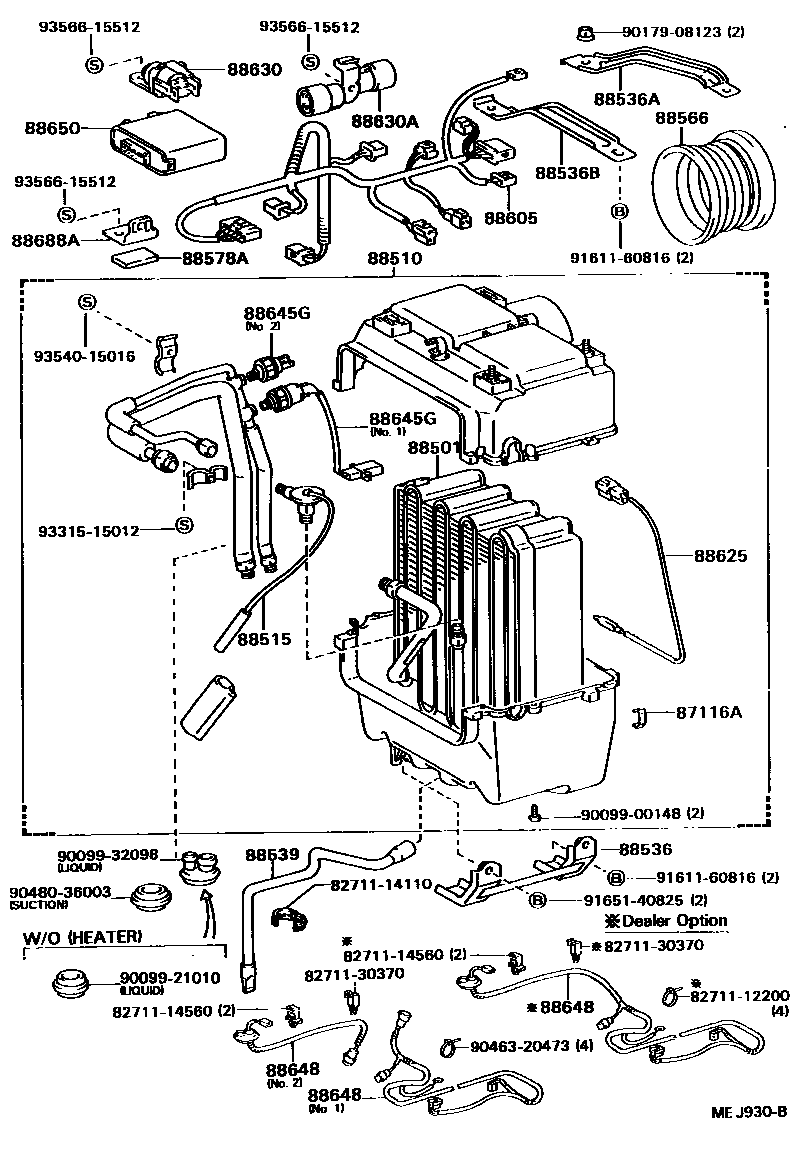

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

88510UNIT ASSY, COOLER

main88510-95401iRU85,YU81..SA; WU90,YU62..ARL; WU90..RHD..CBU; WU90..RHD..GEN..IV3; YU81..RHD..GEN198708-198808

main88510-95402iRU85,YU6#,81..LHD; WU90..LHD; WU95..GEN198708-198808

88515VALVE, COOLER EXPANSION

88536BRACKET, COOLING UNIT, NO.1

main88536-95402iWU90..ARL; WU90..RHD..GEN..IV3198708-198808

DEALER OPTION

main88536-95403iRU85,YU6#,81..GEN; RU85,YU81..SA; WU90..LHD; WU95..GEN;WU90..RHD..GEN; YU62..ARL198708-198808

MAKER OPTION; W(*AIC=MAKER OPTION)

88536ABRACKET, COOLING UNIT, NO.2

main88536-95404iYU71198708-198806

main88536-95407iRU85..GEN; WU90..LHD; WU95..GEN198708-198808

main88536-95409iRU85..SA; WU90..ARL; WU90..RHD..CBU; WU90..RHD..GEN..IV3198708-198808

88536BBRACKET, COOLING UNIT, NO.3

main88536-95405iYU62..ARL; YU81..RHD..GEN; YU81..SA198708-198808

main88536-95406iYU71198806-198808

main88536-95408iRU85; WU90; WU95..GEN198708-198808

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-95409iYU62..ARL; YU81..RHD..GEN; YU81..SA198708-198808

main88539-95410iYU6#,81..LHD198708-198808

main88539-95411iRU85..SA; WU90..ARL; WU90..RHD..CBU; WU90..RHD..GEN..IV3198708-198808

main88539-95412iRU85..GEN; WU90..LHD; WU95..GEN198708-198808

88566DUCT, COOLER AIR, NO.1

main88566-95407iYU71198708-198806

main88566-95408iRU85..GEN; RU85..SA; WU90..ARL; WU90..LHD; WU90..RHD..GEN..IV3; WU95..GEN;WU90..RHD..CBU198708-198808

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-95400×2iRU85,YU6#,81..GEN; RU85,YU81..SA; WU90,YU62..ARL; WU90..LHD; WU90..RHD..GEN..IV3; WU95..GEN;WU90..RHD..GEN198708-198808

DEALER OPTION; MAKER OPTION

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-95404iYU6#,81..GEN; YU62..ARL; YU81..SA198708-198808

main88605-95406iWU90..ARL; WU90..LHD; WU90..RHD..GEN..IV3; WU95..GEN;WU90..RHD..CBU198708-198808

main88605-95407iRU85..GEN; RU85..SA198708-198808

88625THERMISTOR, COOLER, NO.1

88630RELAY ASSY, COOLER

main88630-60020iRU85,YU6#,81..GEN; RU85,YU81..SA; WU9#..GEN; WU90,YU62..ARL; WU90..RHD..GEN..IV3198708-198808

main88630-95400iWU90..LHD198708-198808

CHAINA SPEC

88630ARELAY ASSY, COOLER

main88630-95401iRU85,YU81..SA; WU90,YU62..ARL; WU90..RHD..CBU; WU90..RHD..GEN..IV3; YU81..RHD..GEN198708-198808

main88630-95403iYU71198806-198808

main88630-95405iWU90..LHD198708-198808

CHINA SPEC

88645GSWITCH, PRESSURE

88648WIRING, COOLER, NO.1

main88648-95404iYU6#,81..GEN; YU81..SA198708-198808

NO.1

main88648-95406iWU90..ARL; WU90..LHD; WU90..RHD..GEN..IV3; WU95..GEN;WU90..RHD..CBU198708-198808

NO.1

main88648-95408iRU85..GEN; RU85..SA198708-198808

NO.1

main88648-95409iYU71198806-198808

NO.2

main88648-95411iWU90..LHD; WU90..RHD..(ARL,GEN); WU95..GEN198708-198808

NO.2

main88648-95412iRU85..GEN; RU85..SA198708-198808

NO.2

main88648-95414iYU62..ARL198708-198808

main88648-95418iWU90..LHD; WU95..GEN;WU90..RHD..GEN198708-198808

NO.1,W(HAC)

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iWU9#..LHD;WU90..RHD..CBU; WU90..ARL; WU90..RHD..GEN..IV3198708-198808

main88650-87101iYU71198806-198808

main88650-95A00iWU90..LHD198708-198808

CHINA SPEC

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-95425iYU62..ARL198708-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

8271130370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30370

9009900148

main90099-00148

9009921010

main90099-21010

9009932098

main90099-32098

9017908123

main90179-08123

9046320473

main90463-20473

9048036003

main90480-36003

9161160816

main91611-60816

9165140825

main91651-40825

9331515012

main93315-15012

9354015016

main93540-15016

9356615512

main93566-15512

33 parts on this diagram · 2 diagrams in section
