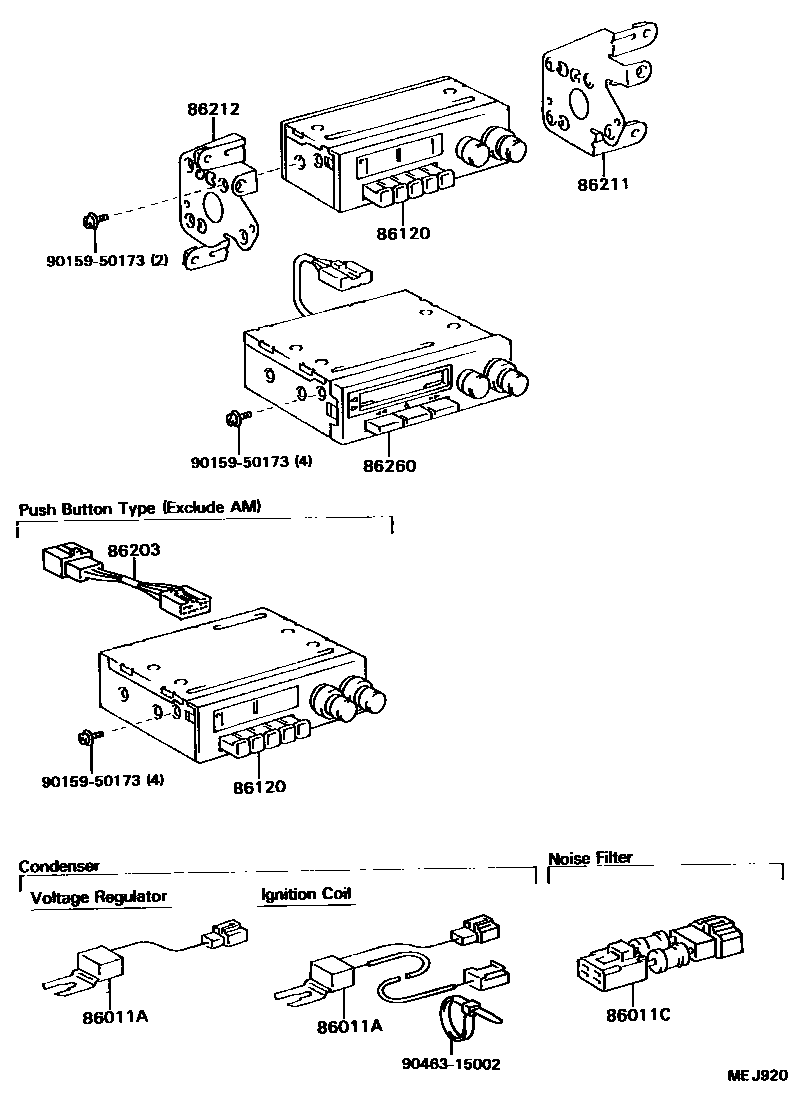

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04040iRU85,YU6#,71,81198708-198808

VOLTAGE REGULATOR

main90980-04052iRU85,YU6#,71,81198708-198808

IGNITION COIL

86011CFILTER, NOISE

main90980-05049iYU81..LHD..IV3; YU81..RHD..GEN;YU81..LHD..CBU;RU85,WU9#,YU6#,71..ARL,GEN198708-198808

SWITZERLAND SPEC OR W(RADIO=AM/FM MPX)

86120RECEIVER ASSY, RADIO

main86120-16460iRU85,WU9#,YU6#,71,81..GEN198708-198808

MATSUSHITA,ID=5108,MW/SW

main86120-16530iRU85,WU9#,YU6#,71,81198708-198808

MATSUSHITA,ID=5010,AM

main86120-22402iYU81..LHD..IV3198708-198808

FUJITSU TEN,LW/MW/UKW ARI,SWITZERLAND SPEC

main86120-32280iRU85,WU9#,YU6#,71,81..ARL,GEN198708-198808

MATSUSHITA,AM/FM MPX

main86120-95410iWU90..LHD198708-198808

MATSUSHITA,AM,CHINA SPEC

86203WIRE, RADIO

main86203-16100iYU81..LHD..IV3198708-198808

SWITZERLAND SPEC

86211BRACKET, RADIO, NO.1

main86211-95406iYU6#,71,81;RU85,WU9#..RHD198708-198808

86212BRACKET, RADIO, NO.2

main86212-95406iYU62,81;RU85,WU9#,YU63,71..LHD198708-198808

86260TAPE PLAYER ASSY

main86260-17011iRU85,WU9#,YU6#,71,81..ARL,GEN198708-198808

main86260-95401iWU90..LHD198708-198808

CHINA SPEC

9015950173

main90159-50173

9046315002

main90463-15002

9 parts on this diagram · 1 diagram in section
