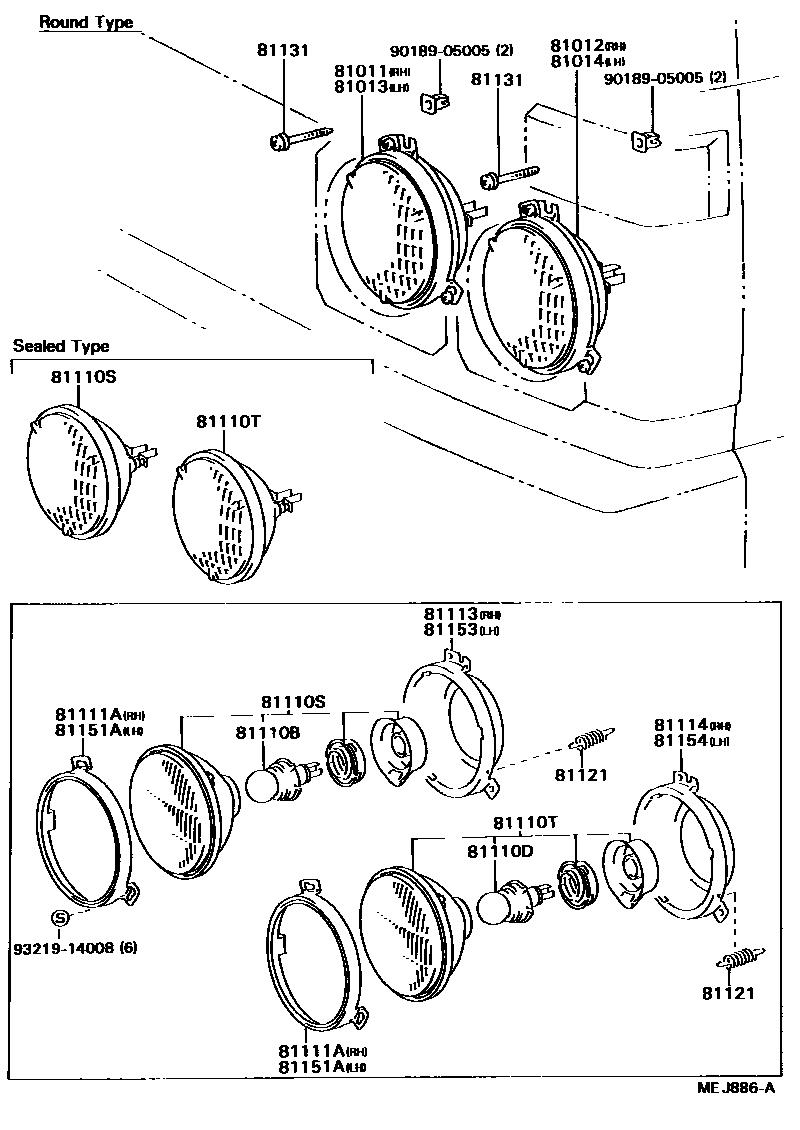

HEADLAMP

0001 1 0002 1

81011HEADLAMP SUB-ASSY, NO.1

main81011-95402iRU85,WU9#,YU6#,71,81..LHD198708-198808

ROUND,*SSB,WHITE

main81011-95403iWU90..LHD198708-198808

CHINA SPEC,ROUND,*SSB,WHITE

main81011-95404iRU85,WU9#,YU6#,71,81..LHD198708-198808

ROUND,*SSB,YELLOW

main81011-95405iWU90..LHD198708-198803

CHINA SPEC,ROUND,*SSB,YELLOW

main81011-95406iWU90..LHD198708-198803

CHINA SPEC,ROUND,WHITE

main81011-95407iRU85,WU9#,YU6#,71,81..GEN,SA198708-198808

ROUND,WHITE

main81011-95411iRU85,WU9#,YU81..SA198708-198808

ROUND,HALOGEN,WHITE

main81011-95414iWU90,YU62..ARL198708-198808

RECTANGLE,WHITE

main81011-95417iWU90,YU62..ARL198708-198808

RECTANGLE,HALOGEN,WHITE

main81011-95418iYU81..LHD..IV3198708-198808

SWITZERLAND SPEC,RECTANGLE,*SSB,WHITE

81012HEADLAMP SUB-ASSY, NO.2

main81012-95404iRU85,WU9#,YU6#,71,81..LHD198708-198808

ROUND,*SSB,WHITE

main81012-95405iWU90..LHD198708-198808

CHINA SPEC,ROUND,*SSB,WHITE

main81012-95406iRU85,WU9#,YU6#,71,81..LHD198708-198808

ROUND,*SSB,YELLOW

main81012-95407iWU90..LHD198708-198803

CHINA SPEC,ROUND,*SSB,YELLOW

main81012-95409iRU85,WU9#,YU81..RHD..(GEN,SA)198708-198808

ROUND,WHITE

main81012-95410iWU90..LHD198708-198803

CHINA SPEC,ROUND,WHITE

main81012-95411iRU85,WU9#,YU6#,71,81..LHD198708-198808

ROUND,WHITE

main81012-95413iRU85,WU9#,YU81..SA198708-198808

ROUND,HALOGEN,WHITE

main81012-95417iWU90,YU62..ARL198708-198808

RECTANGLE,WHITE

main81012-95420iWU90,YU62..ARL198708-198808

RECTANGLE,HALOGEN,WHITE

main81012-95421iYU81..LHD..IV3198708-198808

SWITZERLAND SPEC,RECTANGLE,*SSB,WHITE

81013HEADLAMP SUB-ASSY, TYPE 1, LH

main81013-95400iWU90..LHD198708-198803

CHINA SPEC,ROUND,WHITE

main81013-95401iRU85,WU9#,YU6#,71,81..GEN,SA198708-198808

ROUND,WHITE

main81013-95404iRU85,WU9#,YU81..SA198708-198808

ROUND,HALOGEN,WHITE

main81013-95405iRU85,WU9#,YU6#,71,81..LHD198708-198808

ROUND,*SSB,WHITE

main81013-95406iWU90..LHD198708-198808

CHINA SPEC,ROUND,*SSB,WHITE

main81013-95407iWU90..LHD198708-198803

CHINA SPEC,ROUND,*SSB,YELLOW

main81013-95408iRU85,WU9#,YU6#,71,81..LHD198708-198808

ROUND,*SSB,YELLOW

main81013-95412iWU90,YU62..ARL198708-198808

RECTANGLE,WHITE

main81013-95415iWU90,YU62..ARL198708-198808

RECTANGLE,HALOGEN,WHITE

main81013-95416iYU81..LHD..IV3198708-198808

SWITZERLAND SPEC,RECTANGLE,*SSB,WHITE

81014HEADLAMP SUB-ASSY, TYPE 2, LH

main81014-95401iRU85,WU9#,YU81..RHD..(GEN,SA)198708-198808

ROUND,WHITE

main81014-95402iRU85,WU9#,YU6#,71,81..LHD198708-198808

ROUND,WHITE

main81014-95404iRU85,WU9#,YU81..SA198708-198808

ROUND,HALOGEN,WHITE

main81014-95405iRU85,WU9#,YU6#,71,81..LHD198708-198808

ROUND,*SSB,WHITE

main81014-95406iWU90..LHD198708-198808

CHINA SPEC,ROUND,*SSB,WHITE

main81014-95407iWU90..LHD198708-198803

CHINA SPEC,ROUND,*SSB,YELLOW

main81014-95408iRU85,WU9#,YU6#,71,81..LHD198708-198808

ROUND,*SSB,YELLOW

main81014-95410iWU90..LHD198708-198803

CHINA SPEC,ROUND WHITE

main81014-95413iWU90,YU62..ARL198708-198808

RECTANGLE,WHITE

main81014-95416iWU90,YU62..ARL198708-198808

RECTANGLE,HALOGEN,WHITE

main81014-95417iYU81..LHD..IV3198708-198808

SWITZERLAND SPEC,RECTANGLE,*SSB,WHITE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2iYU81..LHD..CBU;RU85,WU9#,YU6#,71..LHD; YU81..LHD..IV3198708-198808

12V 45/40W,WHITE

main90981-13014×2iRU85,WU9#,YU6#,71,81..LHD198708-198808

12V 45/40W,YELLOW

main90981-17008×2iWU90..LHD198708-198808

24V 55/50W,WHITE,CHINA SPEC

main90981-17009×2iWU90..LHD198708-198803

24V 55/50W,YELLOW,CHINA SPEC

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13013×2iYU81..LHD..CBU;RU85,WU9#,YU6#,71..LHD; YU81..LHD..IV3198708-198808

12V 45/40W,WHITE

main90981-13014×2iRU85,WU9#,YU6#,71,81..LHD198708-198808

12V 45/40W,YELLOW

main90981-17008×2iWU90..LHD198708-198808

24V 55/50W,WHITE,CHINA SPEC

main90981-17009×2iWU90..LHD198708-198803

24V 55/50W,YELLOW,CHINA SPEC

81110SSEALED BEAM UNIT, NO.1

main90981-02018×2iRU85,WU9#,YU6#,71,81..LHD198708-198808

12V 45/40W,*WSB

main90981-02020×2iRU85,WU9#,YU6#,71,81..LHD198708-198808

12V 45/40W,*YSB

main90981-02039×2iRU85,WU9#,YU6#,71,81..GEN,SA198708-198808

12V 37.5W,*WB

main90981-02047×2iRU85,WU9#,YU81..SA198708-198808

12V 37.5W,*HAL,*WB

main90981-05038×2iWU90,YU62..ARL198708-198808

12V 50W,*HAL,*WB

main90981-05053×2iWU90,YU62..ARL198708-198808

12V 50W,*WB

main90981-05055×2iYU81..LHD..IV3198708-198808

12V 45/40W,*WSB,SWITZERLAND SPEC

main90981-08010×2iWU90..LHD198708-198808

24V 55/50W,*WSB,CHINA SPEC,ROUND,*SSB

main90981-08012×2iWU90..LHD198708-198803

24V 55/50W,*YSB,CHINA SPEC,ROUND,*SSB

main90981-08017×2iWU90..LHD198708-198803

24V 40W,*WB,CHINA SPEC

81110TSEALED BEAM UNIT, NO.2

main90981-02019×2iRU85,WU9#,YU6#,71,81..LHD198708-198808

12V 45/40W,*WSB

main90981-02021×2iRU85,WU9#,YU6#,71,81..LHD198708-198808

12V 45/40W,*YSB

main90981-02040×2iRU85,WU9#,YU81..RHD..(GEN,SA)198708-198808

12V 37.5/50W,*WB

main90981-02041×2iRU85,WU9#,YU6#,71,81..LHD198708-198808

12V 37.5/50W,*WB

main90981-02048×2iRU85,WU9#,YU81..SA198708-198808

12V37.5/60W,*HAL,*WB

main90981-05054×2iWU90,YU62..ARL198708-198808

12V 40/60W,*WB

main90981-05056×2iYU81..LHD..IV3198708-198808

12V 45/40W,*WSB,SWITZERLAND SPEC

main90981-05058×2iWU90,YU62..ARL198708-198808

12V 40/60W,*HAL,*WB

main90981-08011×2iWU90..LHD198708-198808

24V 55/50W,*WSB,24V 55/50W,WHITE,CHINA SPEC,ROUND,*SSB

main90981-08013×2iWU90..LHD198708-198803

24V 55/50W,*YSB,24V 55/50W,YELLOW,CHINA SPEC,ROUND,*SSB

main90981-08019×2iWU90..LHD198708-198803

24V 40/60W,*WB,CHINA SPEC

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-14261×2iRU85,WU9#,YU6#,71,81..GEN,SA198708-198808

main81111-20380×2iWU90,YU62..ARL; YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-14100iRU85,WU9#,YU6#,71,81..GEN; RU85,WU9#,YU81..SA198708-198808

main81113-14631iWU90,YU62..ARL; YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-14631iWU90,YU62..ARL; YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

main81114-20210iRU85,WU9#,YU6#,71,81..GEN,SA198708-198808

81121SPRING, HEADLAMP TENSION

main81121-95400×2iRU85,WU9#,YU6#,71,81..GEN,SA198708-198808

LH

main90506-16017×2iRU85,WU9#,YU6#,71,81..GEN,SA198708-198808

RH

main90507-14027×4iWU90,YU62..ARL; YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

81131SCREW, HEADLAMP ADJUSTING

main81131-16230×8iWU90,YU62..ARL; YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

main81131-22170×8iRU85,WU9#,YU6#,71,81..GEN,SA198708-198808

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-14261×2iRU85,WU9#,YU6#,71,81..GEN,SA198708-198808

main81111-20380×2iWU90,YU62..ARL; YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-14100iRU85,WU9#,YU6#,71,81..GEN; RU85,WU9#,YU81..SA198708-198808

main81153-14631iWU90,YU62..ARL; YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81154-14631iWU90,YU62..ARL; YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

main81154-20170iRU85,WU9#,YU6#,71,81..GEN; RU85,WU9#,YU81..SA198708-198808

9018905005

main90189-05005

9321914008

main93219-14008

18 parts on this diagram · 2 diagrams in section
