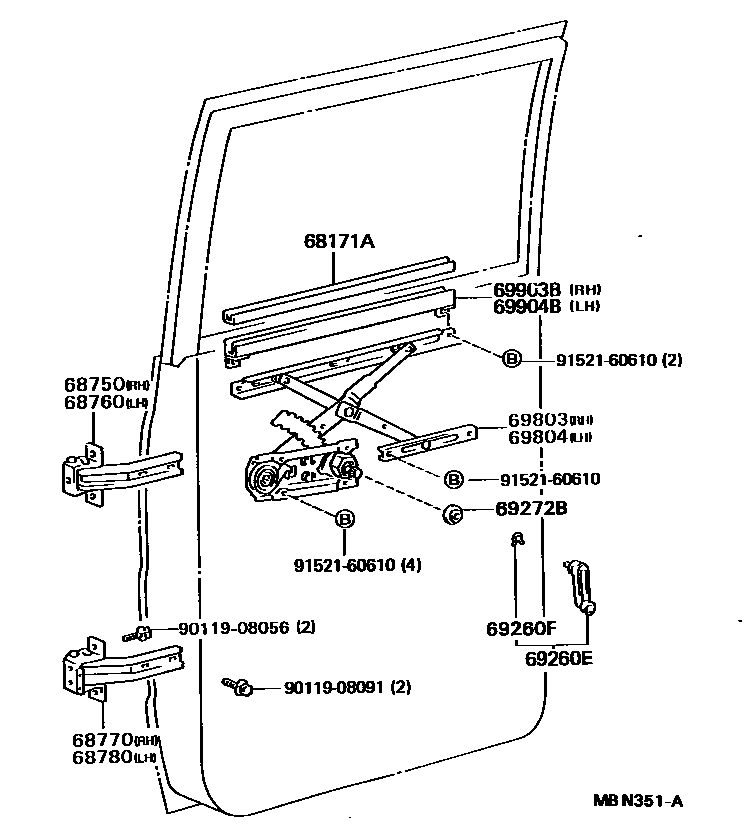

REAR DOOR WINDOW REGULATOR & HINGE

68171AWEATHERSTRIP, REAR DOOR GLASS CHANNEL

main68171-22020×2iYU62..TW1198708-198808

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-95401iYU62..TW1198708-198808

68760HINGE ASSY, REAR DOOR, UPPER LH

main68750-95401iYU62..TW1198708-198808

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-95401iYU62..TW1198708-198808

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-95402iYU62..TW1198708-198808

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-06×2iYU62..TW1198708-198808

BROWN,TRIM4#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iYU62..TW1198708-198808

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69272-30010-08×2iYU62..TW1198708-198808

NATURAL WHITE,TRIM4#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-95400iYU62..TW1198708-198808

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-95400iYU62..TW1198708-198808

69903BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69901-87002iYU62..TW1198708-198808

69904BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69901-87002iYU62..TW1198708-198808

9011908056

main90119-08056

9011908091

main90119-08091

9152160610

main91521-60610

15 parts on this diagram · 1 diagram in section
