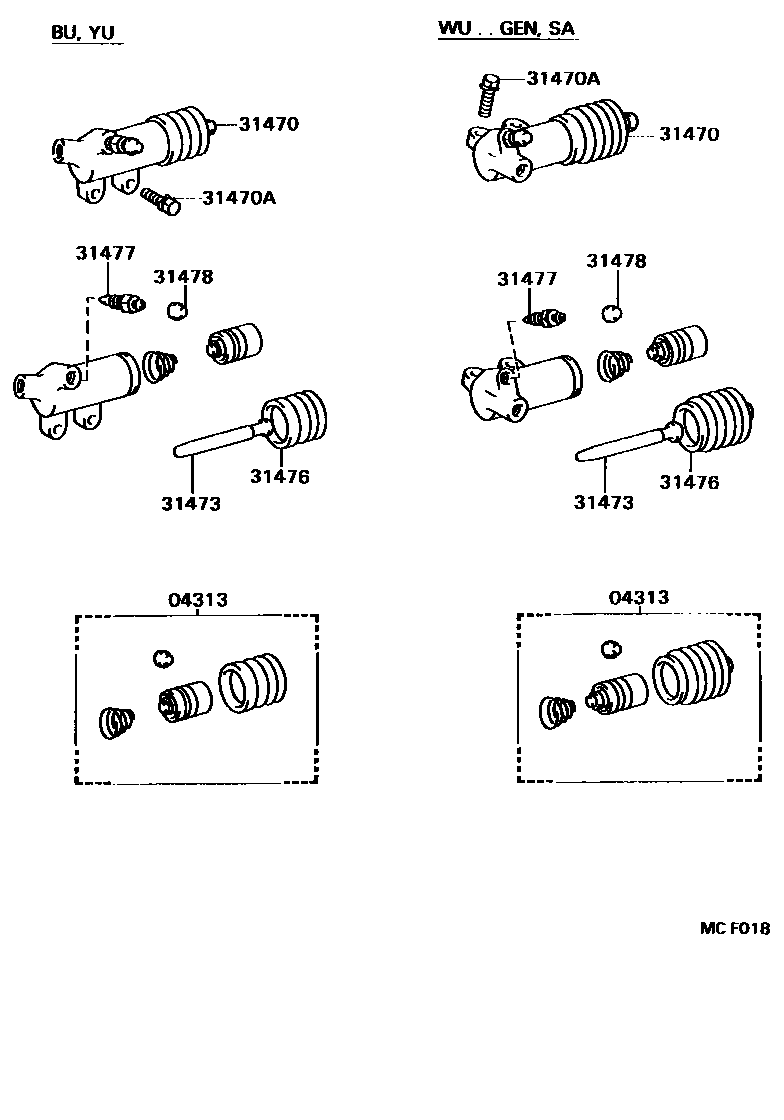

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iRU85,YU6#,71,81198708-198808

sub04313-12030

main04313-35050iWU90..ARL198708-198808

sub04313-36070

main04313-36070iWU9#..SA198708-198808

sub04313-36170

main04313-36100iWU9#..GEN198708-198808

sub04313-36140

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-36211iWU9#..GEN198708-198808

sub31470-36212

main31470-36230iRU85,YU6#,71,81198708-198808

main31470-36260iWU90..ARL198708-198808

main31470-36270iWU9#..SA198708-198808

sub31470-36271

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iWU9#..GEN,SA198708-198808

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iWU9#..GEN;RU85,YU6#,71,81198708-198808

main31473-36030iWU90..ARL198708-198808

main31473-36090iWU9#..SA198708-198808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iWU9#..GEN;RU85,YU6#,71,81198708-198808

main31476-36010iWU9#..ARL,SA198708-198808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRU85,WU9#,YU6#,71,81198708-198808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRU85,WU9#,YU6#,71,81198708-198808

7 parts on this diagram · 2 diagrams in section
