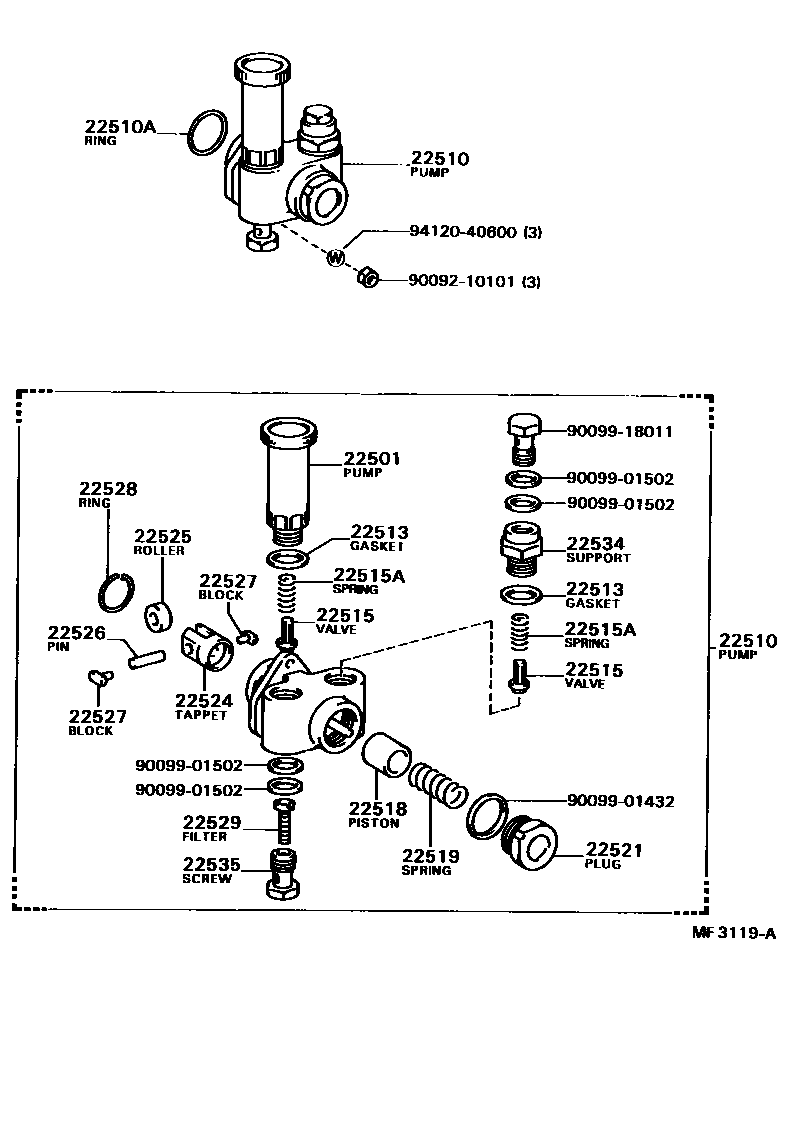

FUEL FEED PUMP

22501PUMP SUB-ASSY, PRIMING

main22501-77021i1W..WU90..GEN198708-198807

22510PUMP ASSY, FUEL FEED

main22510-78030i1W..WU95;1W..WU90..ARL198708-198808

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14050i1W..WU90..GEN198708-198807

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2i1W..WU95;1W..WU90..ARL198708-198808

22515VALVE, FEED PUMP CHECK

main22515-77021×2i1W..WU90..GEN198708-198807

22515ASPRING, FEED PUMP CHECK VALVE

main90501-05141×2i1W..WU90..GEN198708-198807

22518PISTON, FEED PUMP

main22518-56012i1W..WU90..GEN198708-198807

GREEN

main22518-77020i1W..WU90..ARL; 1W..WU95;1W..WU90..ARL198708-198808

BLUE; BLUE,BLUE

22519SPRING, FEED PUMP PISTON

main22519-78030i1W..WU90..GEN198708-198807

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77021i1W..WU90..GEN198708-198807

22524TAPPET, FEED PUMP

main22524-77021i1W..WU90..GEN198708-198807

22525ROLLER, FEED PUMP TAPPET

main22525-77020i1W..WU90..GEN198708-198807

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020i1W..WU90..GEN198708-198807

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2i1W..WU90..GEN198708-198807

22528RING, FEED PUMP TAPPET SNAP

main90099-01501i1W..WU9#198708-198808

22529FILTER, FUEL PUMP

main22529-67010i1W..WU90..GEN198708-198807

22534SUPPORT, VALVE

main22534-77121i1W..WU90..GEN198708-198807

22535SCREW, FUEL PIPE FOLLOW

main22535-46010i1W..WU90..GEN198708-198807

9009210101

main90092-10101

9009901432

main90099-01432

9009901502

main90099-01502

9009918011

main90099-18011

9412040600

main94120-40600

22 parts on this diagram · 1 diagram in section
