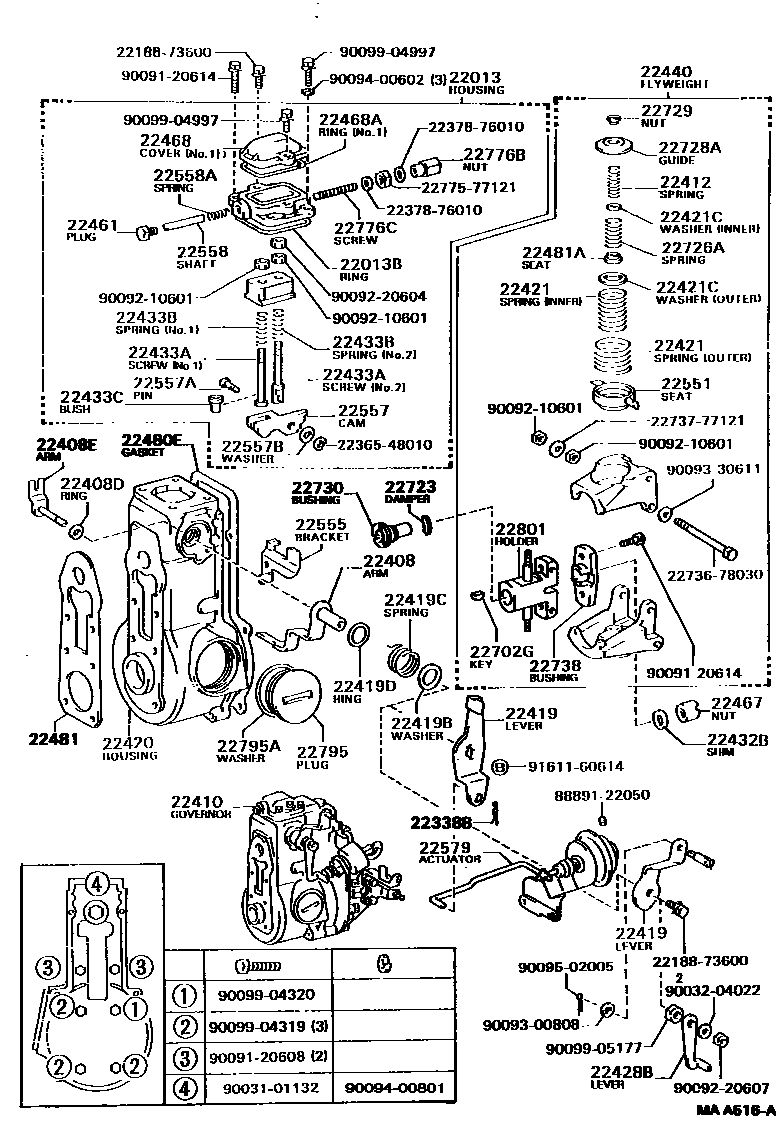

MECHANICAL GOVERNOR
22013HOUSING SUB-ASSY, FULLROAD STOPPER
22013BRING, O(FOR FULLROAD STOPPER HOUSING)
W(POWER STEERING)
W(HAC) OR W(HAC) & W(POWER STEERING)
22338BPIN, LEVER CONECTING
22408ARM, STOPPER
W(POWER STEERING)
W(HAC) OR W(HAC) & W(POWER STEERING)
22408DRING, O(FOR ARM SUB-ASSY)
22408EARM SUB-ASSY(FOR PNEUMATIC BELLOWS)
22410GOVERNOR ASSY, INJECTION PUMP MECHANICAL
W(POWER STEERING)
W(HAC) OR W(HAC) & W(POWER STEERING)
22412SPRING, MECHANICAL GOVERNOR
22419LEVER, STOP
W(HAC) OR W(HAC) & W(POWER STEERING)
W(POWER STEERING)
22419BWASHER, PLATE(FOR STOPPER LEVER)
T=0.6,T=0.6
T=0.7,T=0.7
T=1.0,T=1.0
T=0.20,T=0.2
T=0.20
T=0.50,OD=16,T=0.5,HIGH ALTITUDE SPEC
T=0.50,T=0.5
T=0.50
T=0.10,T=0.10
T=0.10
22419CSPRING, RETURN(FOR STOPPER LEVER)
22419DRING, O(FOR STOPPER LEVER)
W(HAC) OR W(HAC) & W(POWER STEERING)
W(POWER STEERING)
22420HOUSING SUB-ASSY, MECHANICAL GOVERNOR
W(HAC) OR W(HAC) & W(POWER STEERING)
W(POWER STEERING)
22421SPRING, IDLING
W(HAC OR POWER STEERING),OUTER
OUTER
INNER
W(HAC OR POWER STEERING),INNER
22421CWASHER, IDLING SPRING
T=1.00,W(HAC OR POWER STEERING)
T=1.00
T=1.00,W(HAC OR POWER STEERING)
T=1.00
T=0.20,OUTER
T=0.20,T=0.20,OUTER
T=0.20,T=0.20
T=0.40,T=0.40,OUTER,W(HAC OR POWER STEERING)
T=0.40,OUTER
T=0.40,T=0.40,OUTER
T=0.40,T=0.40,W(HAC) OR W(HAC) & W(POWER STEERING),OUTER
T=0.60,OUTER
T=0.60,T=0.60,OUTER
T=0.60,T=0.60,W(HAC) OR W(HAC) & W(POWER STEERING),OUTER
T=0.40,INNER
T=0.40,T=0.40,INNER
T=0.40,T=0.40,W(HAC) OR W(HAC) & W(POWER STEERING),INNER
T=0.60,T=0.60,INNER
T=0.60,INNER
T=0.60,T=0.60,W(HAC) OR W(HAC) & W(POWER STEERING),INNER
22428BLEVER ASSY(FOR PNEUMATIC BELLOWS)
22432BSHIM
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.10,T=2.10
T=2.10
22433ASCREW, ADAPTER(FOR SLIDING BLOCK)
NO.1,W(HAC) OR W(HAC) & W(POWER STEERING)
W(HAC) OR W(HAC) & W(POWER STEERING),NO.2
NO.1
W(POWER STEERING),NO.1
NO.2,W(POWER STEERING)
NO.2
22433BSPRING(FOR ADAPTER SCREW)
NO.2
NO.1
NO.2
W(POWER STEERING),NO.2
22433CBUSH(FOR ADAPTER SCREW)
22440FLYWEIGHT SUB-ASSY
22461PLUG, SCREW
HOUSING SIDE
W(HAC OR POWER STEERING),HOUSING SIDE
LEVER SIDE
W(HAC OR POWER STEERING),LEVER SIDE
22467NUT, ROUND
22468COVER, PLATE
NO.1
NO.2
W(POWER STEERING),NO.1
NO.1
22468AO, RING
NO.1
W(POWER STEERING),NO.1
NO.1
NO.2
22480COVER SUB-ASSY, GOVERNOR
22480EGASKET, GOVERNOR COVER
W(HAC) OR W(HAC) & W(POWER STEERING)
22481GASKET
22481ASEAT, SPRING, INNER
22551SEAT, SPRING(FOR FLYWEIGHT)
22555BRACKET, STOPPER
22557CAM, FULL STOP
22557APIN, CONNECTING(FOR FULL STOP CAM)
22557BWASHER, PLATE(FOR CONNECTING PIN)
T=0.05,T=0.05
T=0.10,T=0.10
T=0.20,T=0.20
22558SHAFT, SLIDING BLOCK
22558ASPRING(FOR SLIDING BLOCK SHAFT)
W(HAC) OR W(HAC) & W(POWER STEERING)
W(POWER STEERING)
22579ACTUATOR, FUEL CUT
22702LEVER ASSY, FLOATING
22702GKEY, WOODRUFF(FOR FROATING LEVER)
22723DAMPER, FLYWEIGHT HOLDER
22726ASPRING, SPEED CONTROL
22728AGUIDE, SPRING
22729NUT, ADJUSTING(FOR FLYWEIGHT)
22730BUSHING ASSY, CAMSHAFT
22738BUSHING, GUIDE(FOR FLYWEIGHT)
22776BNUT, CAP(FOR SCREW STOPPER)
22776CSCREW, STOPPER
HOUSING SIDE,HIGH ALTITUDE SPEC
GOVER COVER SIDE
GOVERNOR COVER SIDE
W(POWER STEERING),HOUSING SIDE
HOUSING SIDE
22795PLUG, SCREW
22795AWASHER, SCREW PLUG
22801HOLDER SUB-ASSY, FLYWEIGHT
2218873600
main22188-73600
2236548010RING, E(FOR INJECTION PUMP LEVER)
main22365-48010
2237876010WASHER, DRAIN SCREW
main22378-76010
2273678030BOLT, BELLCRANK
main22736-78030
2273777121
main22737-77121
2277577121NUT, LOCK(FOR INJECTION PUMP)
main22775-77121
8889122050PACKING (FOR COOLER)
main88891-22050
9003101132
main90031-01132
9003204022
main90032-04022
9009120608
main90091-20608
9009120614
main90091-20614
9009210601
main90092-10601
9009220604
main90092-20604
9009220607
main90092-20607
9009300808
main90093-00808
9009330611
main90093-30611
9009400602
main90094-00602
9009400801
main90094-00801
9009502005
main90095-02005
9009904319
main90099-04319
9009904320
main90099-04320
9009904997
main90099-04997
9009905177
main90099-05177
9161160614
main91611-60614
74 parts on this diagram · 2 diagrams in section
