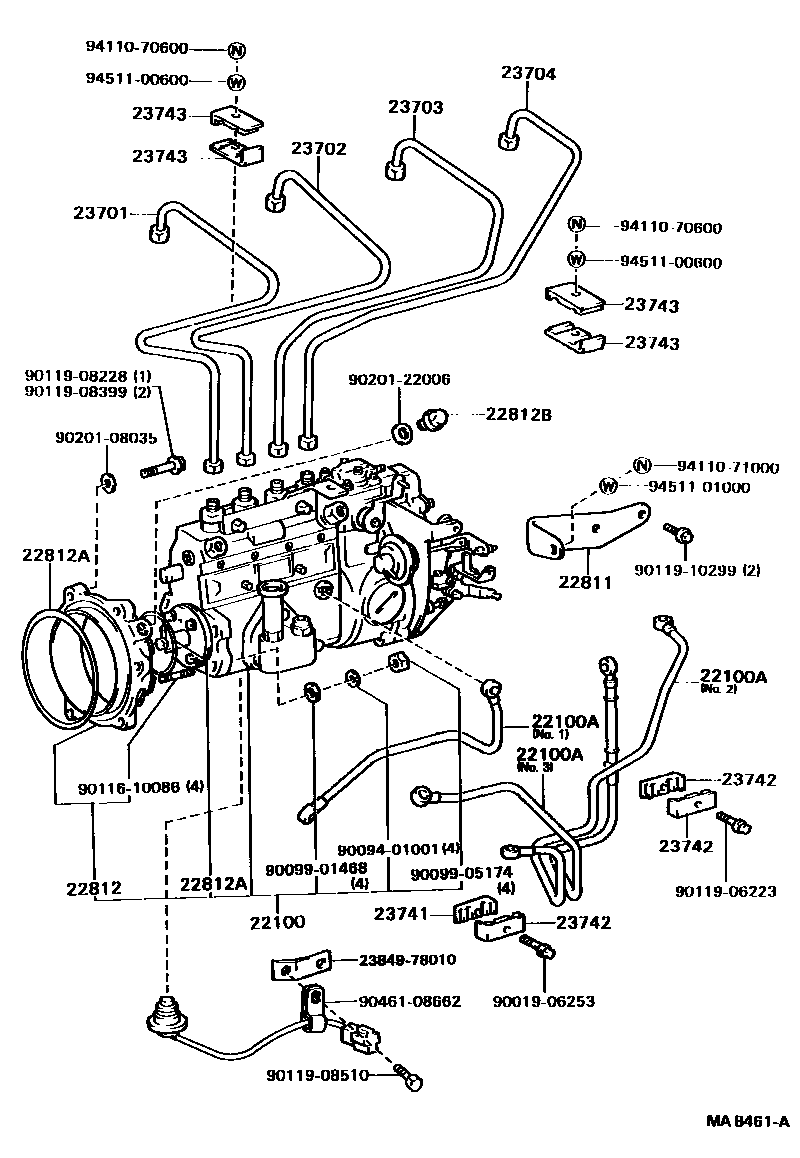

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
W(HAC)
W(POWER STEERING)
W(HAC) & W(POWER STEERING)
W(POWER STEERING)
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
NO.2
NO.2
NO.1
22811STAY, INJECTION PUMP, NO.1
22812RETAINER, INJECTION PUMP
22812ARING, O
INJECTION PUMP SIDE,W(HAC OR POWER STEERING)
INJECTION PUMP SIDE
W(HAC OR POWER STEERING),CASE SIDE
CASE SIDE
22812BPLUG, W/HEAD STRAIGHT SCREW(FOR INJECTION PUMP RETAINER)
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23742CLAMP, INJECTION PIPE, NO.2
23743CLAMP, INJECTION PIPE, NO.3
2384978010SUPPORT, FUEL
main23849-78010
9001906253
main90019-06253
9009401001
main90094-01001
9009901468
main90099-01468
9009905174
main90099-05174
9011610086
main90116-10086
9011906223
main90119-06223
9011908228
main90119-08228
9011908399
main90119-08399
9011908510
main90119-08510
9011910299
main90119-10299
9020108035
main90201-08035
9020122006
main90201-22006
9046108662
main90461-08662
9411070600
main94110-70600
9411071000
main94110-71000
9451100600
main94511-00600
9451101000
main94511-01000
31 parts on this diagram · 1 diagram in section
