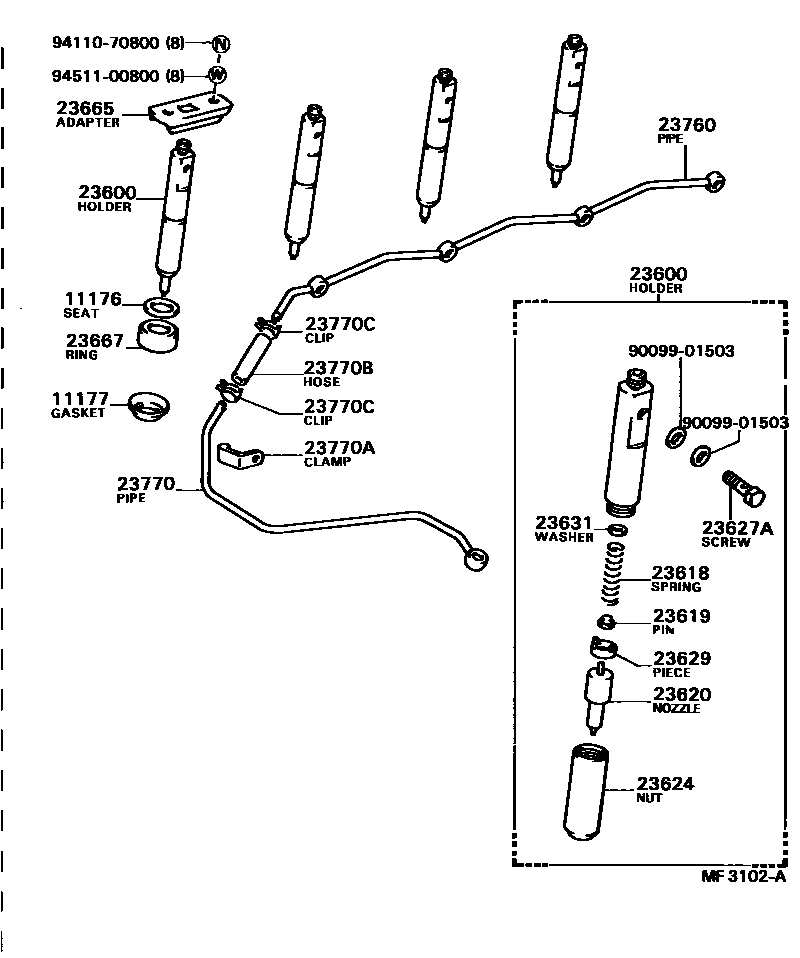

INJECTION NOZZLE
11176SEAT, INJECTION NOZZLE
subSZ910-11017
11177GASKET, INJECTION NOZZLE SEAT
subS2366-11140
23600HOLDER & NOZZLE SET, NOZZLE
23618SPRING, NOZZLE HOLDER PRESSURE
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
23624NUT, NOZZLE RETAINING
23627ASCREW, FOLLOW(FOR NOZZLE)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=0.700
T=0.750
T=0.800
T=0.850
T=0.900
T=0.950
T=1.000
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=0.725
T=0.775
T=0.825
T=0.875
T=0.925
T=0.975
T=1.025
T=1.075
T=1.125
T=1.175
T=1.225
T=1.275
T=1.325
T=1.375
T=1.425
T=1.475
23665ADAPTER, NOZZLE HOLDER
subS2366-51110
23667RING, PACKING, NO.2(FOR NOZZLE)
subS2366-71070
23760PIPE ASSY, NOZZLE LEAKAGE
sub23708-E0090
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)
subS7990-41950
23770BHOSE, FUEL
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
sub96132-51000
3009901503
main30099-01503
9009901503
main90099-01503
9411070800
main94110-70800
9451100800
main94511-00800
21 parts on this diagram · 1 diagram in section
