CARBURETOR ASSEMBLY

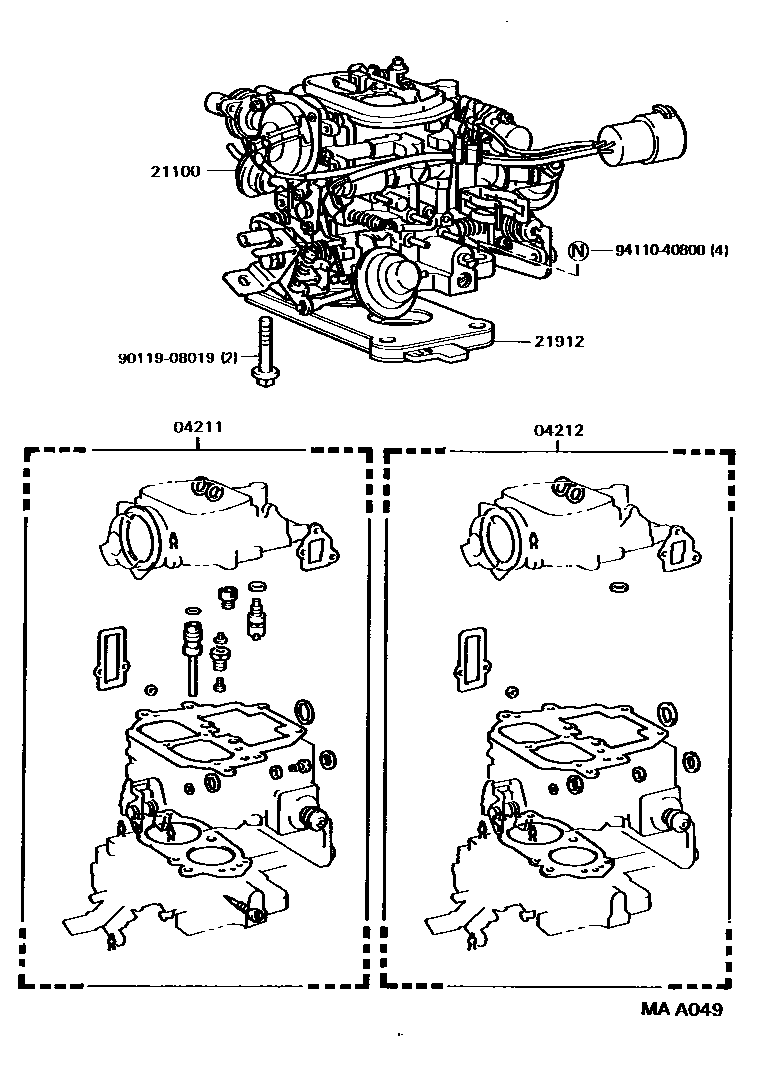

Parts diagram

04211CARBURETOR KIT

main04211-35050i198708-198808

main04211-73171i198708-198808

04212GASKET KIT, CARBURETOR

main04212-37060i198708-198808

main04212-73051i198708-198808

21100CARBURETOR ASSY

main21100-35340i198708-198808

main21100-73260i198708-198808

21912INSULATOR, CARBURETOR HEAT

main21912-37030i198708-198808

main21912-73010i198708-198808

9011908019

main90119-08019

9411040800

main94110-40800

6 parts on this diagram · 2 diagrams in section
