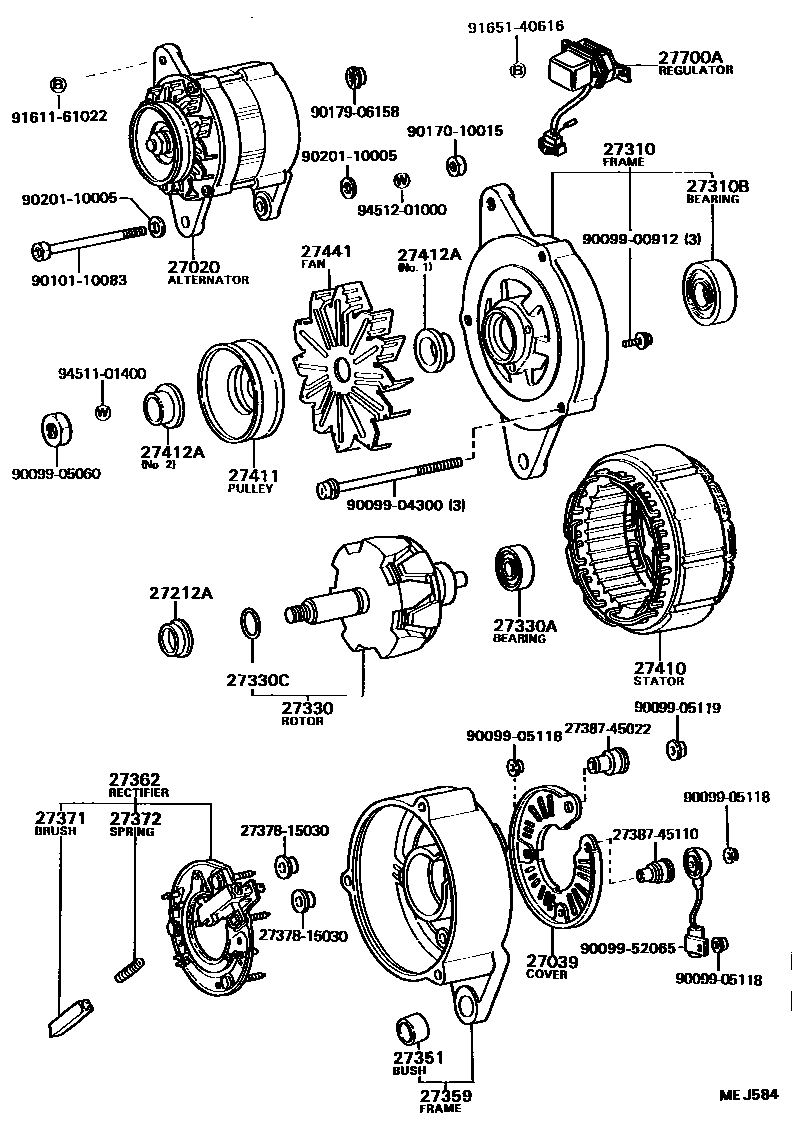

ALTERNATOR

0001 112V 45A 0002 112V 45A 0003 112V 40A 0004 124V 30A

27020ALTERNATOR ASSY

main27020-38120i22R..RU85198708-198808

12V 45A

main27020-72050i4Y..YU6#,71,81198708-198808

12V 45A

main27040-78020i1W..WU90..LHD198708-198808

24V 30A,CHINA SPEC

main27040-78030i1W..WU9#198708-198808

12V 40A

27039COVER, ALTERNATOR REAR END

main27039-18011i22R..RU85198708-198808

27212ARING, SPACE

main27212-39050i22R,4Y..RU85,YU6#,71,81198708-198808

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-18010i22R..RU85198708-198808

main27310-72030i4Y..YU6#,71,81198708-198808

main27310-78010×2i1W..WU9#198708-198808

main27310-78020i1W..WU90..LHD198708-198808

CHINA SPEC

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i1W..WU9#198708-198808

main90099-10142i4Y..YU6#,71,81198708-198808

27330ROTOR ASSY, ALTERNATOR

main27330-45020i22R..RU85198708-198808

main27330-78010i1W..WU9#198708-198808

main27330-78030i1W..WU90..LHD198708-198808

CHINA SPEC

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i22R,4Y..RU85,YU6#,71,81198708-198808

27330CRING, SNAP

main90099-07048i22R..RU85198708-198808

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i22R,4Y..RU85,YU6#,71,81198708-198808

main27351-56013×2i1W..WU9#198708-198808

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i22R..RU85198708-198808

main27359-72030i4Y..YU6#,71,81198708-198808

27362RECTIFIER ASSY, W/BRUSH

main27362-18011i22R,4Y..RU85,YU6#,71,81198708-198808

27371BRUSH, ALTERNATOR

main27371-31011×2i22R,4Y..RU85,YU6#,71,81198708-198808

main27371-56070×4i1W..WU9#198708-198808

main27373-78010×2i1W..WU90..LHD198708-198808

CHINA SPEC

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i22R,4Y..RU85,YU6#,71,81198708-198808

main27372-56070×2i1W..WU9#198708-198808

main27372-78010×2i1W..WU90..LHD198708-198808

CHINA SPEC

27410STATOR ASSY, ALTERNATOR

main27410-38120i22R,4Y..RU85,YU6#,71,81198708-198808

main27410-78010i1W..WU9#198708-198808

main27410-78030i1W..WU90..LHD198708-198808

CHINA SPEC

27411PULLEY, ALTERNATOR

main27411-31042i22R..RU85198708-198808

main27411-72040i4Y..YU6#,71,81198708-198808

main27430-78010i1W..WU9#198708-198808

main27430-78020i1W..WU90..LHD198708-198808

CHINA SPEC

27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i4Y..YU6#,71,81198708-198808

main27412-31040i22R..RU85198708-198808

NO.1

main27412-44030i22R..RU85198708-198808

NO.2

main27412-57060×2i1W..WU9#198708-198808

main27412-78010×2i1W..WU90..LHD198708-198808

CHINA SPEC

27441FAN, ALTERNATOR

main27441-34030i22R,4Y..RU85,YU6#,71,81198708-198808

main27441-56090i1W..WU9#198708-198808

main27441-78010i1W..WU90..LHD198708-198808

CHINA SPEC

27700AREGULATOR ASSY, GENERATOR

main27700-56060i22R,4Y..RU85,YU6#,71,81198708-198808

main27700-57060i1W..WU9#198708-198808

main27700-78010i1W..WU90..LHD198708-198808

CHINA SPEC

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9009952065

main90099-52065

9010110083

main90101-10083

9017010015

main90170-10015

9017906158

main90179-06158

9020110005

main90201-10005

9161161022

main91611-61022

9165140616

main91651-40616

9451101400

main94511-01400

9451201000

main94512-01000

35 parts on this diagram · 4 diagrams in section
