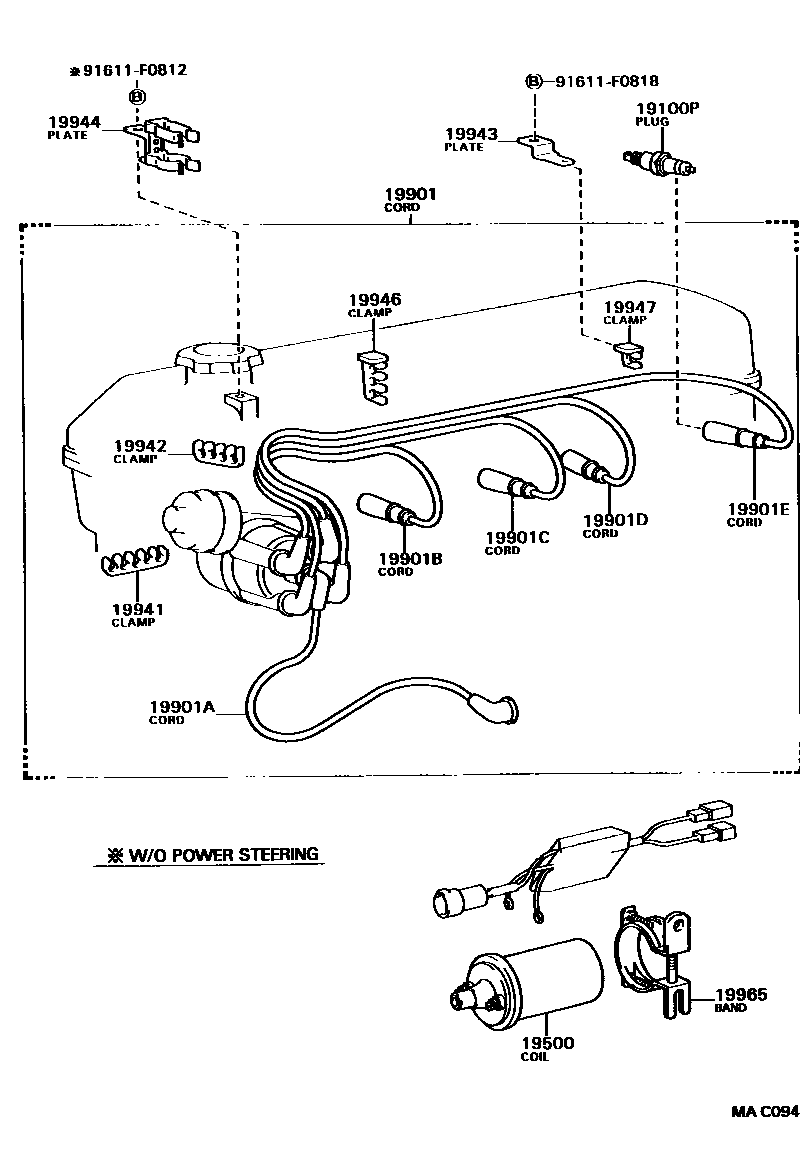

Toyota 751340 — IGNITION COIL & SPARK PLUG / GLOW PLUG
19100PPLUG, SPARK
19901CORD SET, COIL & SPARK, W/RESISTIVE
19901ACORD, COIL RESISTIVE
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19901ECORD, SPARK PLUG RESISTIVE, NO.4
19941CLAMP, RESISTIVE CORD, NO.1
19942CLAMP, RESISTIVE CORD, NO.2
19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19944PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19946CLAMP, RESISTIVE CORD, NO.3
19947CLAMP, RESISTIVE CORD, NO.4
19965BAND, IGNITION COIL, NO.1
91611F0812
91611F0818
17 parts on this diagram · 3 diagrams in section
IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota 751340
This section contains 26 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota 751340. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, PLUG ASSY, GLOW, GROMMET, SCREW(FOR GLOW PLUG), CONNECTOR, GLOW PLUG NO.1.
