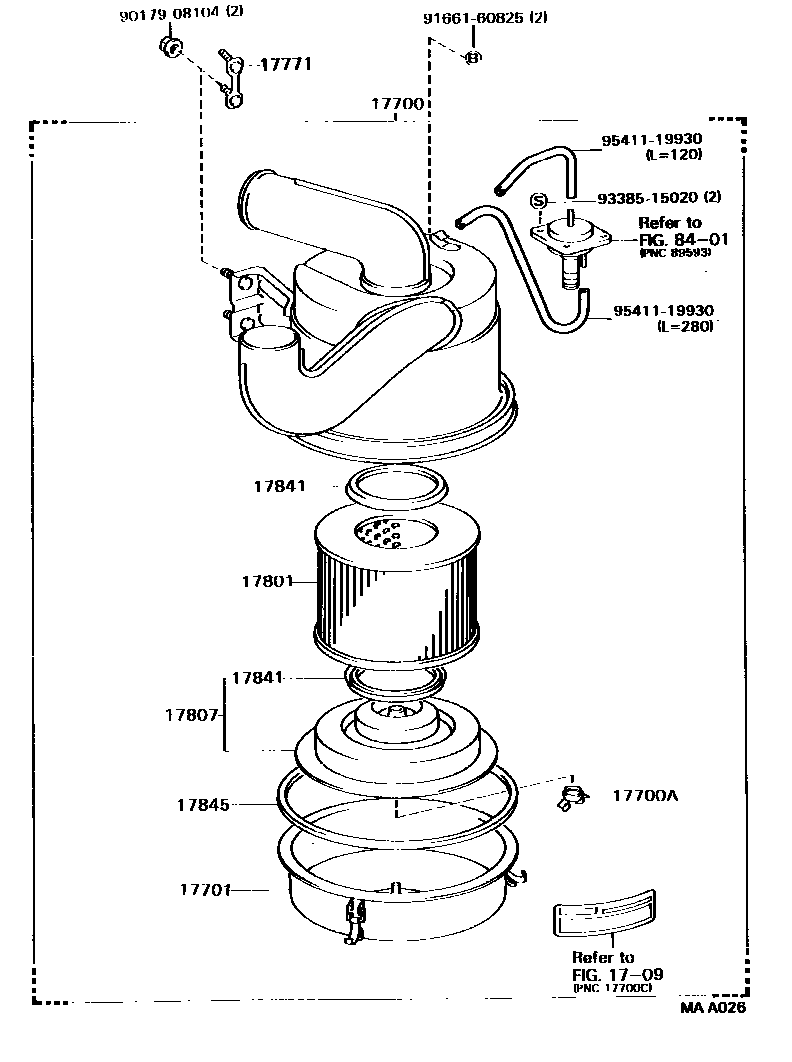

AIR CLEANER

0001 1YU63=SCHNORKEL TYPE & W(PRECL0002 1SCHNORKEL TYPE & OIL BATH 0003 1(8708- )22R..RU85 0004 1 0007 1 0008 1 0009 1SWITZERLAND SPEC 0010 1(8708- )4Y..YU81..RHD 0011 1 0014 1 0015 1

1709

17700CLEANER ASSY, AIR

main17700-56331i4Y..YU81..RHD198708-198808

main17700-56341i4Y..YU62,71,81..LHD198708-198808

main17700-56350i4Y..YU62..ARL198708-198808

SCHNORKEL TYPE & W(PRECLEANER)

main17700-56370i4Y..YU63198708-198808

main17700-56400i4Y..YU62,81..T3..GEN198708-198808

SCHNORKEL TYPE & OIL BATH

sub17700-56360

main17700-56410i4Y..YU63198708-198808

SCHNORKEL TYPE & OIL BATH

sub17700-56380

main17700-58120i1W..WU9#..GEN,SA198708-198808

main17700-58230i22R..RU85198708-198808

main17700-58250i1W..WU90..ARL198708-198808

TAIWAN SPEC

main17700-58260i1W..WU9#..GEN198708-198808

SCHNORKEL TYPE & OIL BATH

main17700-73090i4Y..YU81..LHD..IV3198708-198808

SWITZERLAND SPEC

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i4Y..YU62,71,81..GEN,SA198708-198808

main90175-08008i22R..RU85198708-198808

SCHNORKEL TYPE & W(PRECLEANER)

main94271-00800i1W..WU9#..GEN198708-198808

SCHNORKEL TYPE & OIL BATH

17701CASE SUB-ASSY, AIR CLEANER

main17701-56130i4Y..YU81..RHD198708-198808

main17701-56150i22R..RU85198708-198808

SWITZERLAND SPEC OR SCHNORKEL TYPE & W(PRECLEANER)

main17701-56160i4Y..YU62,71,81..LHD198708-198808

main17701-58040i1W..WU9#198708-198808

main17702-58020i1W..WU9#..GEN198708-198808

SCHNORKEL TYPE & OIL BATH

17771BRACKET, AIR CLEANER INLET DUCT

main17771-56020i4Y..YU62,71,81..GEN,SA198708-198808

main17771-58020i4Y..YU63198708-198808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56020i22R..RU85198708-198808

SWITZERLAND SPEC OR SCHNORKEL TYPE & W(PRECLEANER)

main17801-56031i4Y..YU62,71,81..GEN,SA198708-198808

main17801-56040i1W..WU9#..GEN198708-198808

SCHNORKEL TYPE & OIL BATH

main17801-68020i1W..WU9#198708-198808

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56011i4Y..YU81..LHD..IV3198708-198808

SWITZERLAND SPEC OR SCHNORKEL TYPE & W(PRECLEANER)

main17807-58010i22R..RU85198708-198808

main17807-68010i1W..WU9#198708-198808

17841GASKET, FILTER ELEMENT

main17841-44030×2i22R..RU85198708-198808

SWITZERLAND SPEC OR SCHNORKEL TYPE & W(PRECLEANER)

main17841-56020i1W..WU9#..GEN198708-198808

SCHNORKEL TYPE & OIL BATH

main17841-56031i4Y..YU62,71,81..GEN,SA198708-198808

main17841-68010×2i1W..WU9#198708-198808

17845GASKET, AIR CLEANER CAP

main17845-56020i22R..RU85198708-198808

SCHNORKEL TYPE & OIL BATH

main17845-56050i4Y..YU62,71,81..GEN,SA198708-198808

main17845-68020i1W..WU9#198708-198808

sub17845-17010

8401

9017908104

main90179-08104

9166160825

main91661-60825

9338515020

main93385-15020

9541119930

main95411-19930

14 parts on this diagram · 11 diagrams in section
