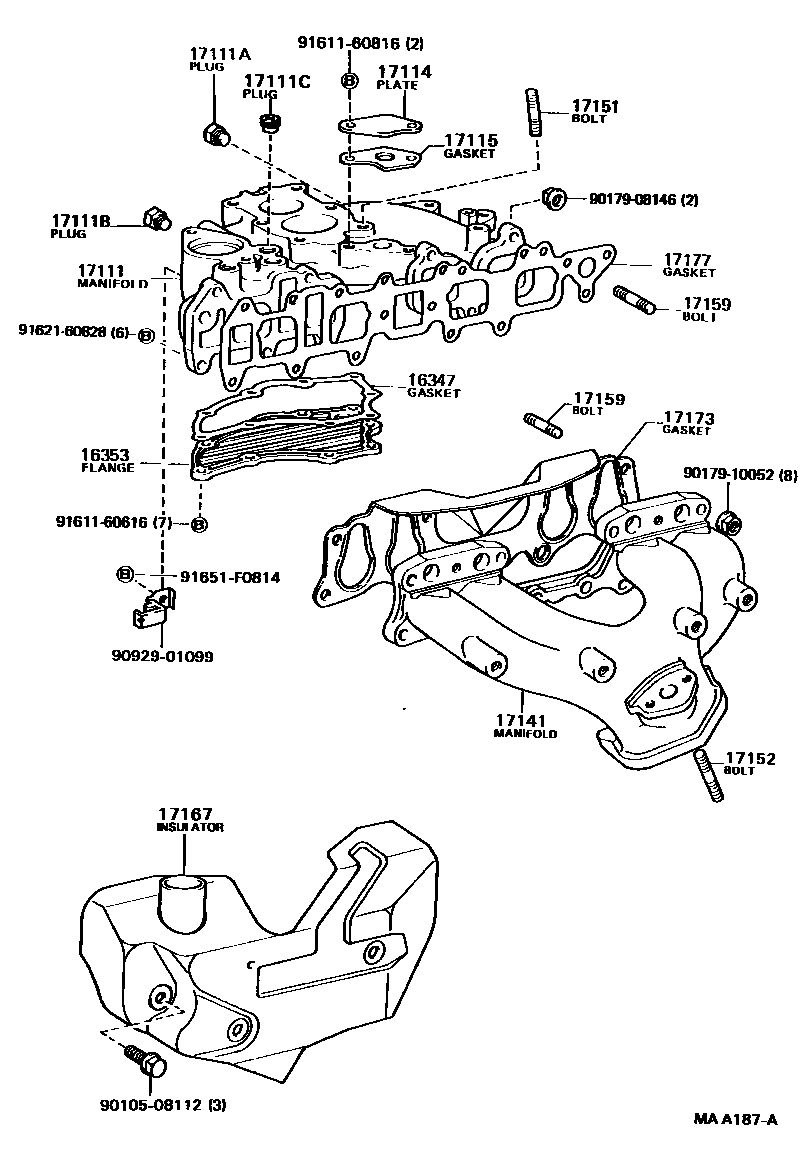

MANIFOLD
16347GASKET, WATER BY-PASS
16353FLANGE, WATER BY-PASS
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17111BPLUG, NO.2
17111CPLUG, NO.3
17114PLATE, INTAKE MANIFOLD HOLE COVER
17115GASKET, INTAKE MANIFOLD HOLE COVER
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
EXHAUST MANIFOLD,LWR
EXHAUST MANIFOLD,UPR
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9010508112
main90105-08112
9017908146
main90179-08146
9017910052
main90179-10052
9092901099
main90929-01099
9161160616
main91611-60616
9161160816
main91611-60816
9162160828
main91621-60828
91651F0814
main91651-F0814
23 parts on this diagram · 3 diagrams in section
