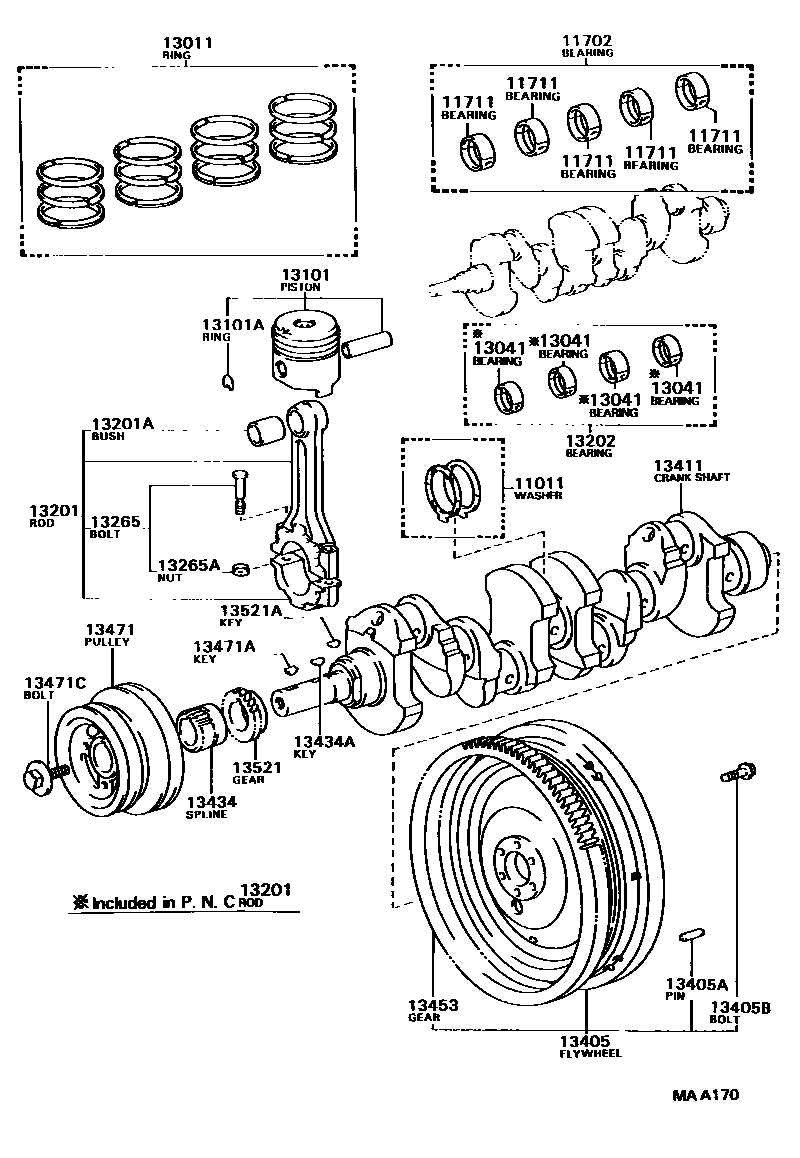

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD
O/S 0.125
O/S 0.250
O/S 0.250
11702BEARING SET, CRANKSHAFT
STD
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.75
U/S 1.00
11711BEARING, CRANKSHAFT
MARK 3
MARK 4
MARK 5
MARK 1
MARK 2
MARK 3
13011RING SET, PISTON
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 1.00
13041BEARING, CONNECTING ROD
MARK A
MARK B
MARK C
MARK 6
MARK 7
MARK 8
13101PISTON SUB-ASSY, W/PIN
STD,MARK1
STD,MARK2
STD,MARK3
STD,MARK 1
STD,MARK 2
STD,MARK 3
STD,CHINA SPEC,MARK 1
STD,CHINA SPEC,MARK 2
STD,CHINA SPEC,MARK 3
STD
O/S 0.50,O/S 0.50
O/S 0.50
main13103-73041×4i4Y..YU62..TW1; 4Y..YU62..TW1;4Y..YU71,81..LHD;4Y..YU6#..(L2,T3)..WT..GEN; 4Y..YU62..WT198708-198808
O/S 0.50,CHINA SPEC
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.75
U/S 1.00
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=24,OD=10
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13434SPLINE, OIL PUMP DRIVE
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
24 parts on this diagram · 3 diagrams in section
