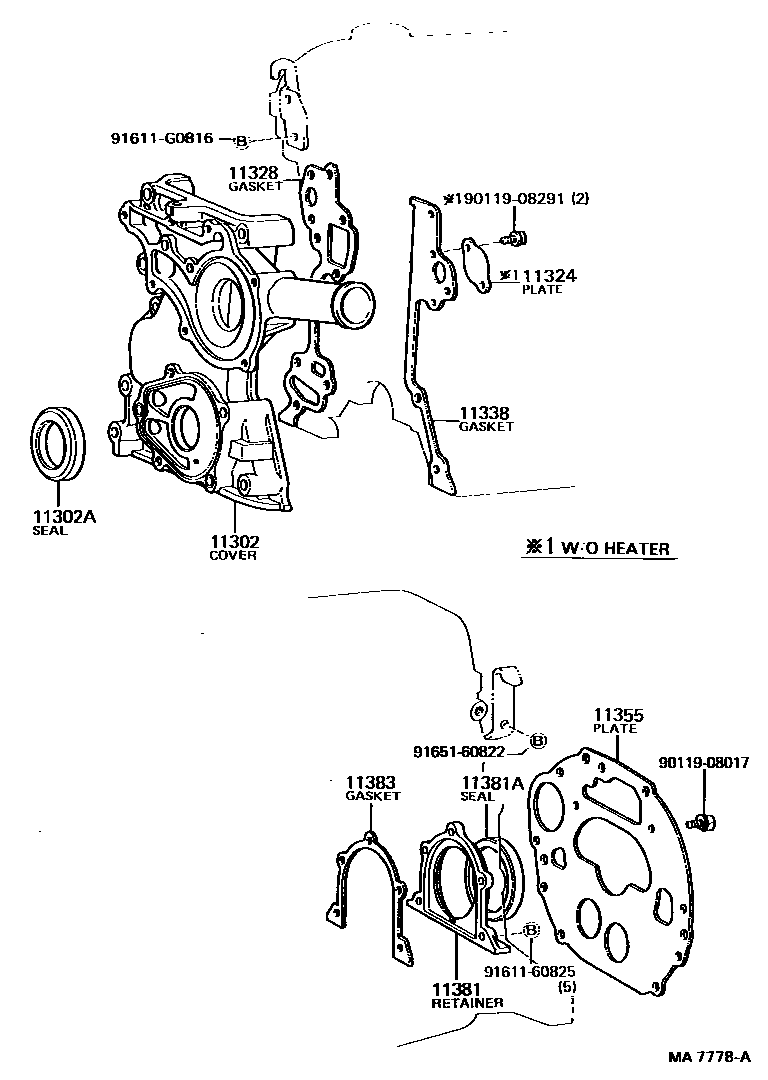

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-35010i22R..RU85198708-198808

main11321-71010i4Y..YU6#,71,81198708-198808

main11321-78010i1W..WU9#..GEN,SA198708-198808

NO.2

main11321-78020i1W..WU9#..GEN,SA; 1W..WU90..ARL198708-198808

NO.1

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-42019i4Y..YU6#,71,81198708-198808

main90311-45006i22R..RU85198708-198808

main90311-58005i1W..WU9#198708-198808

11324PLATE, TIMING CHAIN COVER

main11324-38020i22R..RU85..GEN198708-198808

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-35020i22R..RU85198708-198808

main11328-71010i4Y..YU6#,71,81198708-198712

main11328-71011i4Y..YU6#,71,81198712-198808

11338GASKET, TIMING CHAIN COVER, NO.2

main11329-35020i22R..RU85198708-198808

11355PLATE, REAR END

main11355-35010i22R..RU85198708-198808

main11355-71010i4Y..YU6#,71,81198708-198808

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i22R..RU85198708-198808

main11381-71010i4Y..YU6#,71,81198708-198808

11381ASEAL, ENGINE REAR OIL

main90311-80003i4Y..YU6#,71,81198708-198808

main90311-80004i22R..RU85198708-198808

main90311-99002i1W..WU9#198708-198808

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i4Y..YU6#,71,81198708-198808

main11383-35010i22R..RU85198708-198808

9011908017

main90119-08017

9011908291

main90119-08291

9161160825

main91611-60825

91611G0816

main91611-G0816

9165160822

main91651-60822

14 parts on this diagram · 4 diagrams in section
