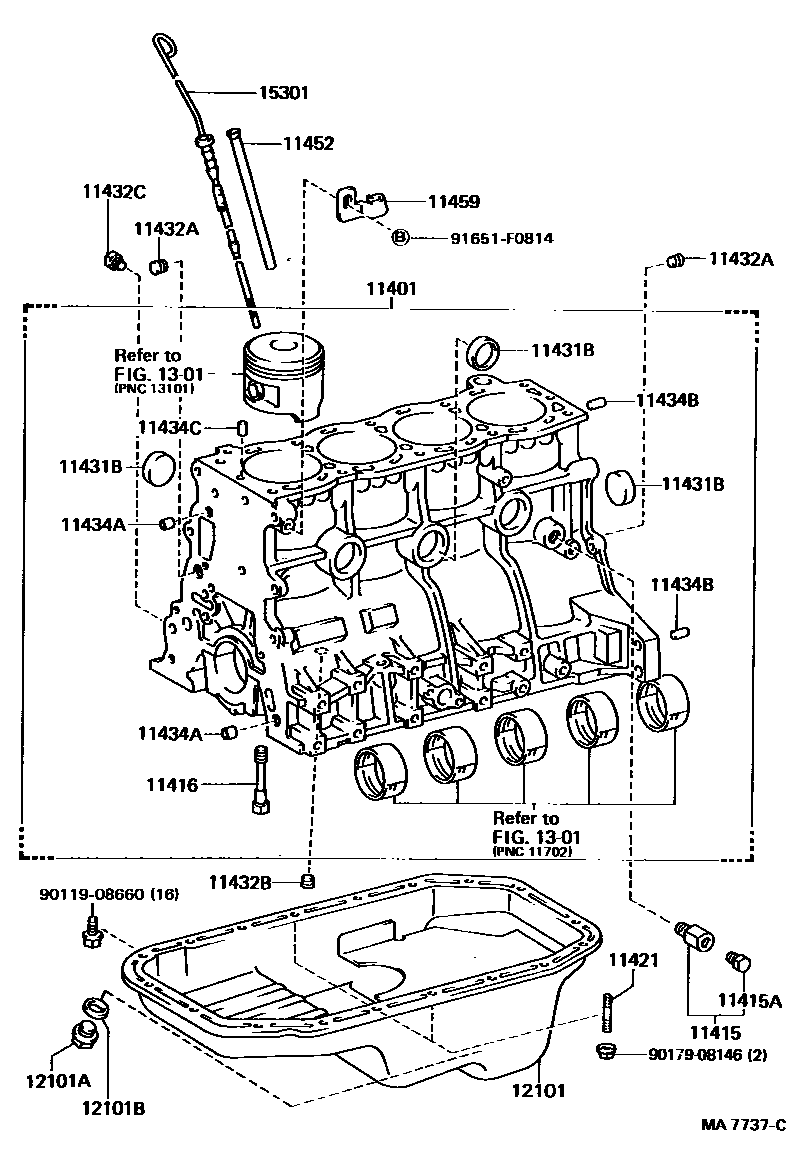

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-39447i22R..RU85198801-198808

main11401-79335i4Y..YU62..TW1;4Y..YU71,81..LHD;4Y..YU62..WT..GEN198708-198808

CHINA SPEC

main11410-78010i1W..WU9#198708-198808

sub11410-78011

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96431-53828i22R..RU85198708-198808

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96432-23814i22R..RU85198708-198808

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-14024i1W..WU9#198708-198808

sub90031-09070

main90910-02032i4Y..YU6#,71,81198708-198808

main90910-02042i22R..RU85198708-198808

11421BOLT, STUD(FOR OIL PAN)

main92122-40814i22R..RU85198708-198808

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-40003i1W..WU9#198708-198808

sub90033-31035

main96411-43500i4Y..YU6#,71,81198708-198808

main96411-44000i22R..RU85198708-198808

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008i22R..RU85198708-198808

FR

main90344-53011i22R..RU85198708-198808

RR

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90344-52003i22R..RU85198708-198808

main90344-53011i4Y..YU6#,71,81198708-198808

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-51006i22R..RU85198708-198808

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08015i1W..WU9#198708-198808

L=24,OD=8

main90250-08120i4Y..YU6#,71,81198708-198808

L=18,OD=8

main90253-11021i22R..RU85198708-198808

L=8,OD=11

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-08120i4Y..YU6#,71,81198708-198808

L=18,OD=8

main90250-10113i4Y..YU6#,71,81198708-198808

L=22,OD=10

main90250-12003i1W..WU9#198708-198808

OD=12

sub90032-50060

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08016i1W..WU9#198708-198808

L=16,OD=8

main90250-08120i22R..RU85198708-198808

L=18,OD=8

11452GUIDE, OIL LEVEL GAGE

main11452-35010i22R..RU85198708-198808

main11452-71020i4Y..YU6#,71,81198708-198808

main11452-78010i1W..WU9#198708-198808

subS1210-21912

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-35010i22R..RU85198708-198808

main11459-71011i4Y..YU6#,71,81198708-198808

12101PAN SUB-ASSY, OIL

main12101-35020i22R..RU85198708-198808

main12101-71021i4Y..YU6#,71,81198708-198808

main12111-78010i1W..WU9#198708-198808

subS1211-12730

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i22R..RU85198708-198808

main90341-18089i1W..WU9#198708-198808

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90202-18001i1W..WU9#198708-198808

sub90202-18002

main90430-12011i22R..RU85198708-198803

sub90430-12019

main90430-12019i4Y..YU6#,71,81198803-198808

sub90430-12028

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-35020i22R..RU85198708-198808

main15301-61020i1W..WU9#..GEN198708-198808

SCHNORKEL TYPE & OIL BATH

main15301-71020i4Y..YU6#,71,81198708-198808

main15301-78010i1W..WU9#198708-198808

subS1530-13262

9011908660

main90119-08660

9017908146

main90179-08146

91651F0814

main91651-F0814

22 parts on this diagram · 3 diagrams in section
