CYLINDER HEAD

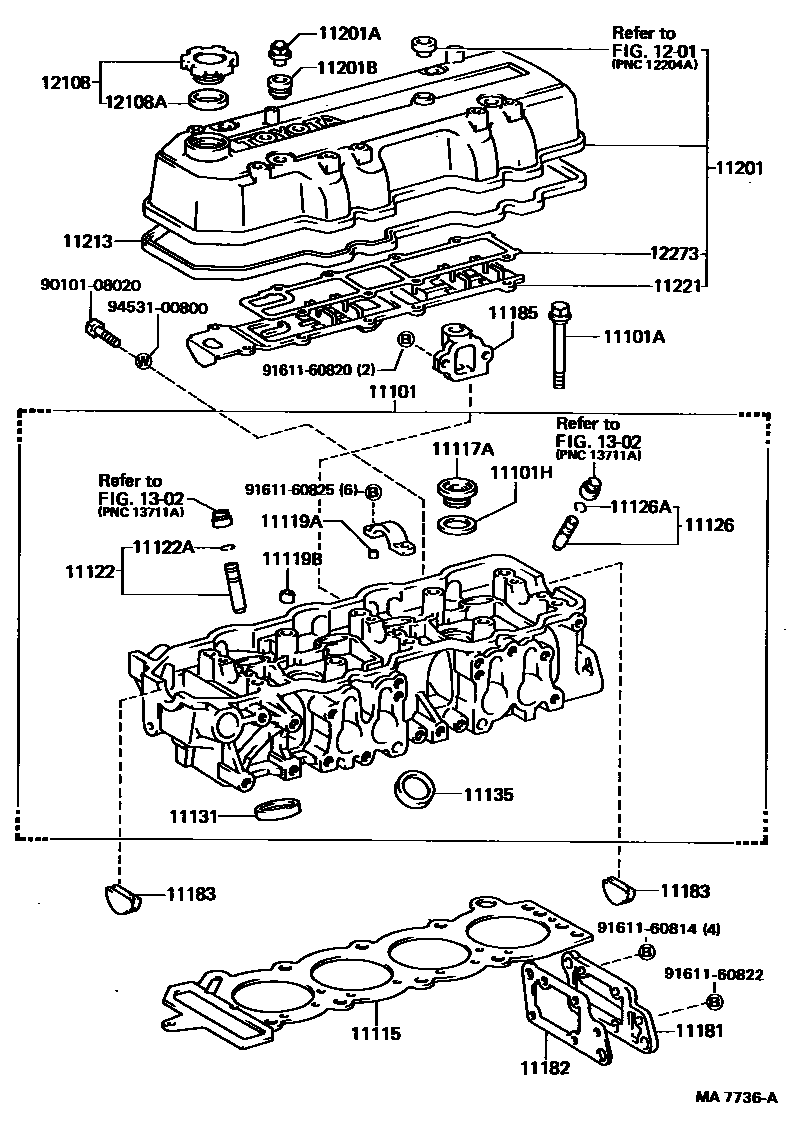

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-35060i198708-198808
sub11101-35080
main11101-73020i198708-198808
main11110-78010i198708-198808
CHINA SPEC
sub11110-78030
main11110-78020i198708-198808
sub11110-78040
11101ABOLT(FOR CYLINDER HEAD SET)
main90105-12056i198708-198808
main90105-12073i198708-198808
sub90031-01199
main90105-12092i198708-198808
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90430-33133i198708-198808
11115GASKET, CYLINDER HEAD
main11115-35020i198708-198808
sub11115-35021
main11115-73010i198708-198808
sub11115-73030
main11115-78011i198708-198808
sub11115-78012
11117APLUG, W/HEAD TAPER SCREW, NO.1
main90341-32070i198708-198808
main90344-53011i198708-198808
11119APIN, STRAIGHT, NO.1
main90253-11021i198708-198808
L=8,OD=11
11119BPIN, STRAIGHT, NO.2
main90253-16020i198708-198808
L=16,OD=15.5
11122BUSH, INTAKE VALVE GUIDE
main11122-35020i198708-198808
STD
main11122-71020i198708-198808
STD
main11122-78010i198708-198808
STD
sub11122-89102
main11123-35020i198708-198808
O/S 0.05
main11123-71020i198708-198808
O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
main90520-12049i198708-198808
11126BUSH, EXHAUST VALVE GUIDE
main11122-38021i198708-198808
STD
main11122-78010i198708-198808
STD
sub11122-89102
main11123-38021i198708-198808
O/S 0.05
main11126-71020i198708-198808
STD
main11127-71020i198708-198808
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
main90520-12049i198708-198808
11131SEAT, INTAKE VALVE
main11131-35010i198708-198808
STD
sub11131-35011
main11131-63010i198708-198808
STD
main11131-78010i198708-198808
STD
sub11131-78050
main11132-35010i198708-198808
O/S 0.03
sub11132-35011
main11132-63010i198708-198808
O/S 0.03
11135SEAT, EXHAUST VALVE
main11135-35010i198708-198808
STD
sub11135-35020
main11135-71010i198708-198808
STD
main11135-78010i198708-198808
STD
sub11135-78020
main11136-35010i198708-198808
O/S 0.03
sub11136-35020
main11136-71010i198708-198808
O/S 0.03
11181PLATE, CYLINDER HEAD, REAR
main11181-35040i198708-198808
main11181-73080i198708-198808
11182GASKET, CYLINDER HEAD REAR PLATE
main11182-35031i198708
sub11182-35050
main11182-71010i198708-198808
sub11182-71011
11183PLUG, SEMICIRCULAR
main11183-38010i198708-198808
11185COVER, CYLINDER HEAD SIDE
main11184-35020i198708-198808
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-35031i198804-198808
sub11201-35032
main11201-79035i198708-198808
sub11201-71011
sub11213-71020
sub90210-09001
main11211-78010i198708-198808
sub11211-E0240
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
main90176-08007i198708-198808
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
main90210-08026i198708-198808
main90210-09001i198708-198808
sub90210-09019
11213GASKET, CYLINDER HEAD COVER
main11213-35010i198708-198808
main11213-71020i198708-198808
main11213-78010i198708-198808
subS1121-31550
11221SEPARATOR, CYLINDER HEAD COVER, NO.1
main11221-35020i198708-198808
sub11221-35021
1201
12108CAP SUB-ASSY, OIL FILLER
main12108-78010i198805-198808
sub12180-78010
main12180-13030i198708-198808
sub12180-55010
main12180-61010i198708-198808
sub12180-70020
12108AGASKET(FOR OIL FILLER CAP)
main12195-71020i198708-198808
main90430-37140i198708-198808
12273GASKET, OIL SEPARATOR
main12273-35020i198708-198808
sub12273-35021
1302
9010108020
main90101-08020
9161160814
main91611-60814
9161160820
main91611-60820
9161160822
main91611-60822
9161160825
main91611-60825
9453100800
main94531-00800

33 parts on this diagram · 3 diagrams in section
