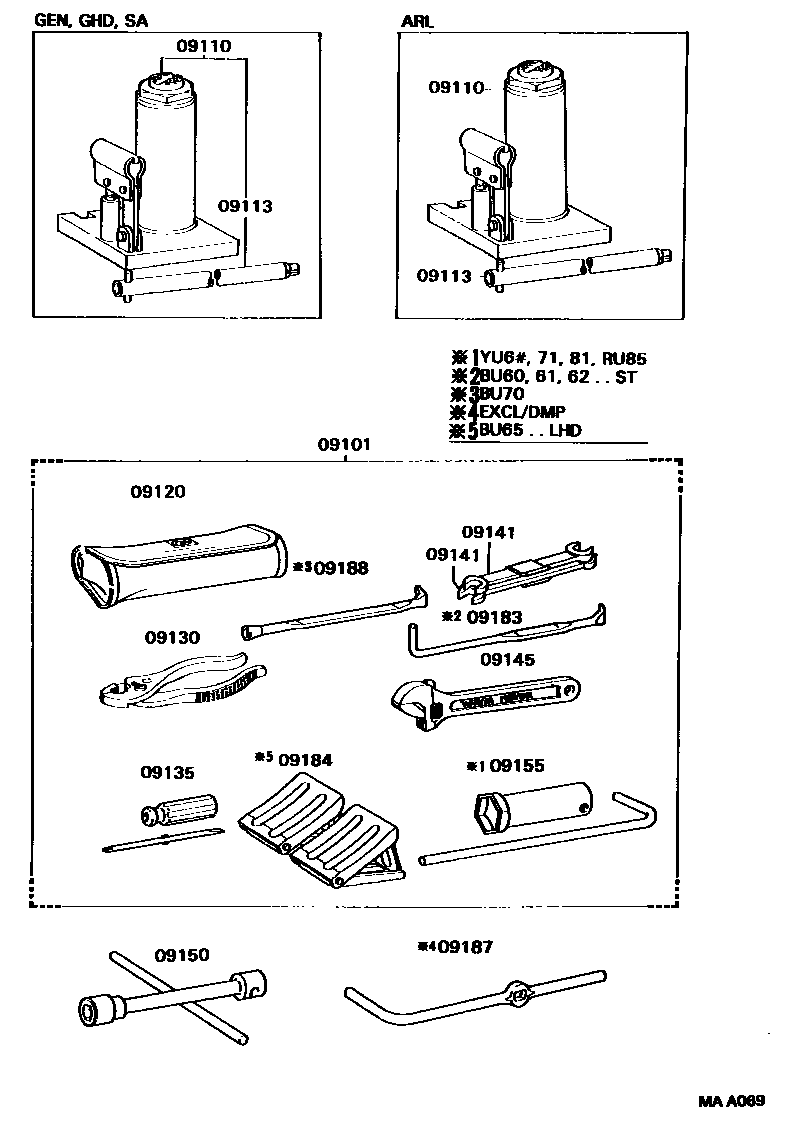

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-36271iRU85198708-198808

main09102-36350iWU9#198708-198808

09110JACK ASSY

main09110-36041iYU62..WT..GEN198708-198808

main09110-36090iRU85,YU63,81198708-198808

main09110-36131iWU9#..GEN,SA198708-198808

main09110-36160iYU62,71..ST198708-198808

main09110-36191iYU62..ARL198708-198808

main09110-36220iWU90..ARL198708-198808

09113HANDLE, JACK

main09113-36060iYU62,71198708-198808

main09113-36100iRU85,YU63,81198708-198808

main09113-36130iWU9#198708-198808

09120BAG, TOOL

main09120-26021iYU6#,71,81198708-198808

main09120-36070iRU85,WU9#198708-198808

09130PLIERS

main99913-11500iRU85,WU9#,YU6#,71,81198708-198808

09135DRIVER, SCREW

main99915-10700iRU85,WU9#,YU6#,71,81198708-198808

09141SPANNER

main99914-11012iRU85,WU9#,YU6#,71,81198708-198808

10 X 12

main99914-11417iRU85,WU9#,YU6#,71,81198708-198808

14 X 17

09145WRENCH, MONKEY

main99911-11200iRU85,WU9#,YU6#,71,81198708-198808

09150WRENCH, HUB NUT BOX

main09150-25020iYU62,71..ST198708-198808

main09150-36030iYU6#,81..WT198708-198808

main09150-55010iWU9#198708-198808

main09150-55020iRU85198708-198808

09155WRENCH, SPARK PLUG

main09155-26010iRU85198708-198808

main09155-41010iYU6#,71,81198708-198808

09183WRENCH, WHEEL CAP

09184STOPPER, WHEEL

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070iRU85,WU9#,YU62,71,81198708-198808

09188WRENCH, VALVE CAP

14 parts on this diagram · 1 diagram in section
