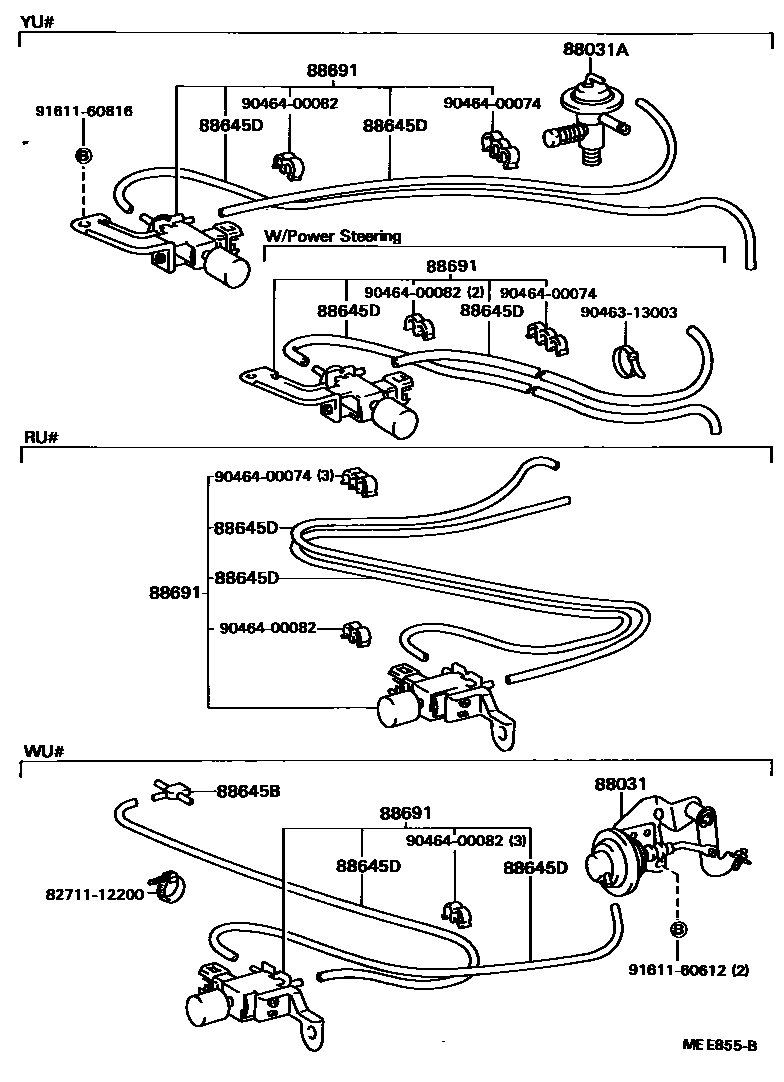

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main88031-36050iWU9#..ARL,GEN198409-198608

main88031-36060iWU9#..ARL,GEN198608-198708

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main21099-71030iYU6#,70,80..ARL,GEN,SA198409-198608

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iWU9#..ARL,GEN198409-198708

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10060iWU9#..ARL,GEN; YU6#,7#,8#..LHD..GEN; YU60,62,8#..RHD198409-198708

*H,L=470,MARK=#0; *H,L=510,MARK=#0; *H,L=560,MARK=#0

main95411-10095iRU75,85198409-198708

L=840,MARK=#0

main95411-19960iYU6#,7#,8#..LHD..GEN; YU60,62,8#..RHD198409-198708

*H,L=350,MARK=#*; *H,L=440,MARK=#*

main95411-19995iRU75,85; WU9#..ARL,GEN198409-198708

*H,L=750,MARK=#*; *H,L=800,MARK=#*

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95406iYU60,62,8#..RHD198409-198708

main88690-95407iYU6#,7#,8#..LHD..GEN198409-198708

main88690-95416iWU9#..ARL,GEN198409-198708

main88690-95418iRU75,85198409-198708

main88690-95427iWU90..LHD198411-198708

CHINA SPEC(24V)

main88690-95430iYU6#,7#,8#..LHD..GEN198508-198708

W/PS

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9046313003

main90463-13003

9046400074

main90464-00074

9046400082

main90464-00082

9161160612

main91611-60612

9161160816

main91611-60816

11 parts on this diagram · 2 diagrams in section
