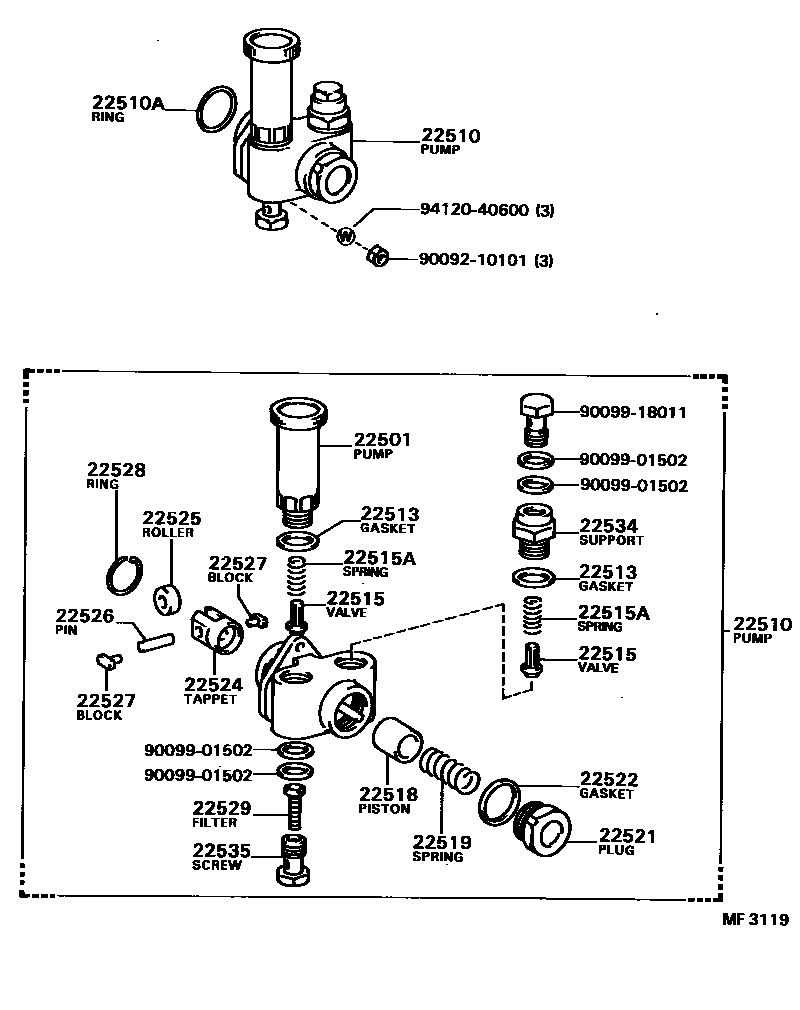

FUEL FEED PUMP

22501PUMP SUB-ASSY, PRIMING

main22501-78030i1W..WU9#198409-198708

22510PUMP ASSY, FUEL FEED

main22510-78030i1W..WU9#198409-198708

22510ARING, O(FOR FUEL FEED PUMP)

main90099-14050i1W..WU9#198409-198708

22513GASKET, CHECK VALVE CHAMBER PLUG

main22513-77020×2i1W..WU9#198409-198708

22515VALVE, FEED PUMP CHECK

main22515-77021×2i1W..WU9#198409-198708

22515ASPRING, FEED PUMP CHECK VALVE

main22514-77020×2i1W..WU9#198409-198708

22518PISTON, FEED PUMP

main22518-56010i1W..WU9#198409-198708

RED,RED

main22518-56011i1W..WU9#198409-198708

YELLOW,YELLOW

main22518-56012i1W..WU9#198409-198708

GREEN,GREEN

main22518-56013i1W..WU9#198409-198708

WHITE,WHITE

main22518-77020i1W..WU9#198409-198708

BLUE,BLUE

22519SPRING, FEED PUMP PISTON

main22519-78030i1W..WU9#198409-198708

22521PLUG, FEED PUMP PISTON CHAMBER

main22521-77021i1W..WU9#198409-198708

22522GASKET, FEED PUMP PISTON PLUG

main90099-01432i1W..WU9#198409-198708

22524TAPPET, FEED PUMP

main22524-77021i1W..WU9#198409-198708

22525ROLLER, FEED PUMP TAPPET

main22525-77020i1W..WU9#198409-198708

22526PIN, FEED PUMP TAPPET ROLLER

main22526-77020i1W..WU9#198409-198708

22527BLOCK, FEED PUMP TAPPET SLIDING

main22527-56010×2i1W..WU9#198409-198708

22528RING, FEED PUMP TAPPET SNAP

main90099-01501i1W..WU9#198409-198708

22529FILTER, FUEL PUMP

main22529-67010i1W..WU9#198409-198708

22534SUPPORT, VALVE

main22534-77121i1W..WU9#198409-198708

22535SCREW, FUEL PIPE FOLLOW

main22535-46010i1W..WU9#198409-198708

9009210101

main90092-10101

9009901502

main90099-01502

9009918011

main90099-18011

9412040600

main94120-40600

22 parts on this diagram · 1 diagram in section
