ALTERNATOR

0001 1 0002 1 0003 1 0004 1

27020ALTERNATOR ASSY

main27020-38120i22R..RU75,85198409-198708

12V 45A,12V 45A

main27020-72050i3Y,4Y..YU6#,7#,8#198409-198708

12V 45A,12V 45A

main27040-78010i1W..WU9#..LHD198409-198412

24V 20A,W/VACUUM PUMP

main27040-78020i1W..WU9#..LHD198412-198708

24V 30A,24V 30A,W/VACUUM PUMP

main27040-78030i1W..WU9#198409-198708

12V 40A,12V 40A,W/VACUUM PUMP

27039COVER, ALTERNATOR REAR END

main27039-18011i22R..RU75,85198409-198708

12V 45A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

main27333-57060i1W..WU9#198409-198708

12V 40A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-18010i22R..RU75,85198409-198708

12V 45A

main27310-72030i3Y,4Y..YU6#,7#,8#198409-198708

12V 45A

main27310-78010i1W..WU9#198409-198708

12V 40A

main27310-78020i1W..WU9#..LHD198409-198412

24V 20A

main27310-78020i1W..WU9#..LHD198412-198708

24V 30A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i3Y,4Y..YU6#,7#,8#198409-198708

12V 45A

main27412-31040i22R..RU75,85198409-198708

12V 45A

main27412-57060i1W..WU9#198409-198708

12V 40A

main27412-78010i1W..WU9#..LHD198409-198412

24V 20A

subS2741-21130

main27412-78010i1W..WU9#..LHD198412-198708

24V 30A

subS2741-21130

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10126i22R..RU75,85198409-198708

12V 45A

sub90099-10125

main90099-10142i3Y,4Y..YU6#,7#,8#198409-198708

12V 45A

sub90099-10223

27330ROTOR ASSY, ALTERNATOR

main27330-45020i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

main27330-78010i1W..WU9#198409-198708

12V 40A

main27330-78020i1W..WU9#..LHD198409-198412

24V 20A

main27330-78030i1W..WU9#..LHD198412-198708

24V 30A

subS2733-01470

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198705

12V 45A

sub90099-10116

main90099-10116i22R,4Y..RU75,85,YU6#,71,81198705-198708

12V 45A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

main90099-07103i1W..WU9#198409-198708

12V 40A

27350FRAME ASSY, RECTIFIER END

main27350-56140i1W..WU9#198409-198708

12V 40A

main27350-78010i1W..WU9#..LHD198412-198708

24V 30A

main27350-78010i1W..WU9#..LHD198409-198412

24V 20A

27350BCONDENSER, ALTERNATOR

main27355-78010i1W..WU9#..LHD198409-198412

24V 20A

main27355-78010i1W..WU9#..LHD198412-198708

24V 30A

main90099-52065i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

sub90099-52034

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

main27351-56013i1W..WU9#198409-198708

12V 40A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i22R..RU75,85198409-198708

12V 45A

main27359-72030i3Y,4Y..YU6#,7#,8#198409-198708

12V 45A

27362RECTIFIER ASSY, W/BRUSH

main27362-18011i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

27371BRUSH, ALTERNATOR

main27371-31011i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

main27371-56070i1W..WU9#198409-198708

12V 40A

sub27371-54412

main27373-78010i1W..WU9#..LHD198409-198412

24V 20A

subS2737-11150

main27373-78010i1W..WU9#..LHD198412-198708

24V 30A

subS2737-11150

27372SPRING, ALTERNATOR BRUSH

main27372-31011i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

main27372-56070i1W..WU9#198409-198708

12V 40A

main27372-78010i1W..WU9#..LHD198409-198412

24V 20A

main27372-78010i1W..WU9#..LHD198412-198708

24V 30A

27410STATOR ASSY, ALTERNATOR

main27410-38120i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

main27410-78010i1W..WU9#198409-198708

12V 40A

main27410-78020i1W..WU9#..LHD198409-198412

24V 20A

main27410-78030i1W..WU9#..LHD198412-198708

24V 30A

subS2741-01580

27411PULLEY, ALTERNATOR

main27411-31042i22R..RU75,85198409-198708

12V 45A

main27411-72040i3Y,4Y..YU6#,7#,8#198409-198708

12V 45A

main27430-78010i1W..WU9#198409-198708

12V 40A

main27430-78020i1W..WU9#..LHD198409-198412

24V 20A

subS2743-11350

main27430-78020i1W..WU9#..LHD198412-198708

24V 30A

subS2743-11350

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i22R..RU75,85198409-198708

12V 45A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

main27441-56090i1W..WU9#198409-198708

12V 40A

main27441-78010i1W..WU9#..LHD198412-198708

24V 30A

subS2744-11140

main27441-78010i1W..WU9#..LHD198409-198412

24V 20A

subS2744-11140

27700AREGULATOR ASSY, GENERATOR

main27700-56060i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 45A

sub27700-72010

main27700-57060i1W..WU9#198409-198708

12V 40A

sub27700-64030

sub90099-05118

main27700-78010i1W..WU9#..LHD198409-198412

24V 20A

subS2770-01370

main27700-78010i1W..WU9#..LHD198412-198708

24V 30A

subS2770-01370

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110083

main90101-10083

9017010015

main90170-10015

9017906158

main90179-06158

9020110005

main90201-10005

9161161022

main91611-61022

9165140616

main91651-40616

9451101400

main94511-01400

9451201000

main94512-01000

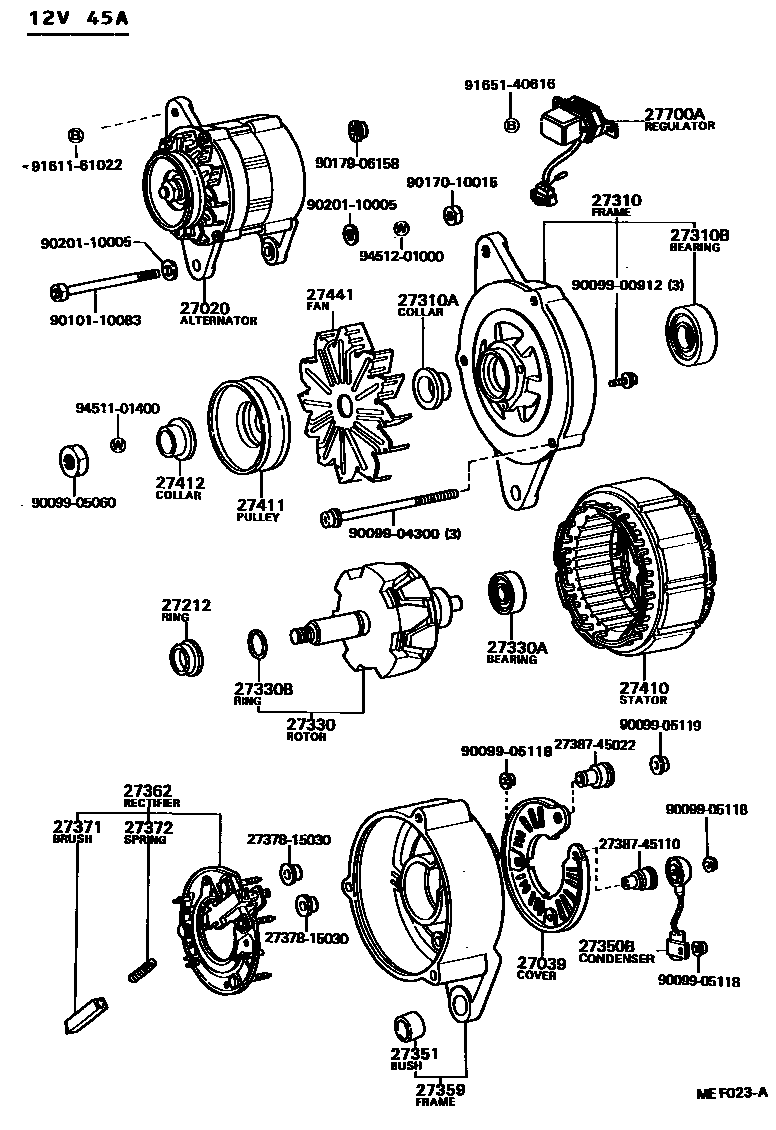

37 parts on this diagram · 4 diagrams in section
