ENGINE OVERHAUL GASKET KIT

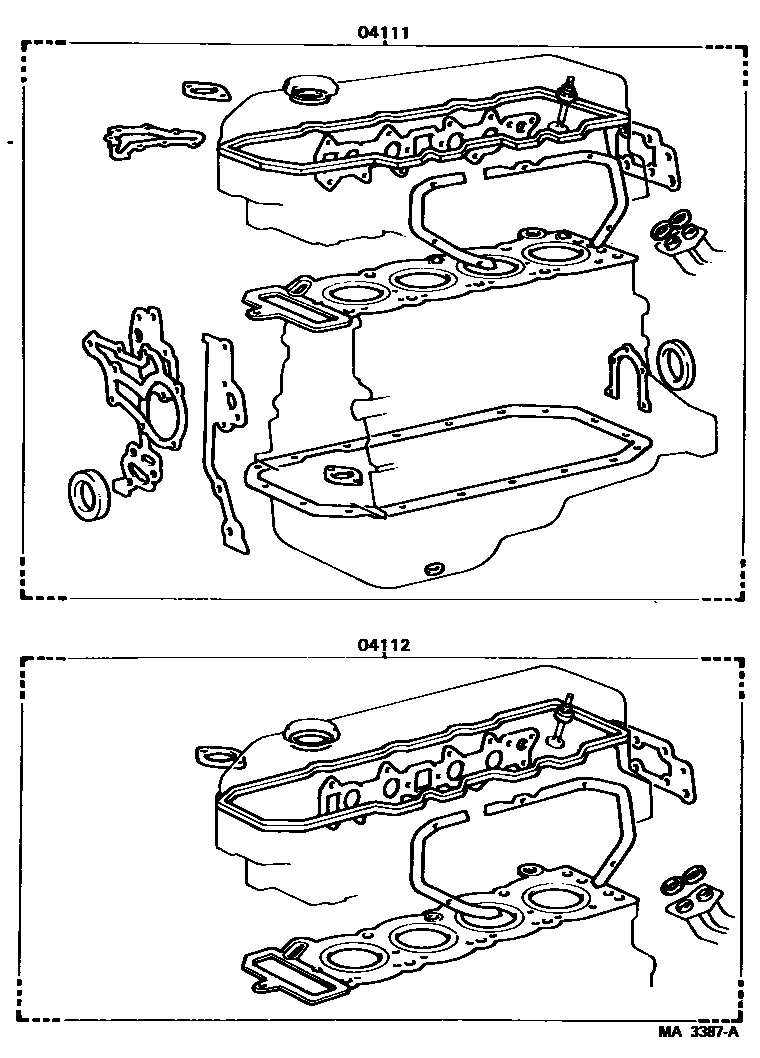

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-35040i198409-198606

main04111-35041i198606-198708

main04111-72010i198409-198508

main04111-72011i198508-198608

main04111-73040i198608-198704

main04111-73041i198704-198707

main04111-73042i198707-198708

main04111-78010i198409-198607

main04111-78011i198607-198708

04112GASKET KIT, ENGINE VALVE GRIND

main04112-35030i198409-198606

main04112-35031i198606-198708

main04112-72010i198409-198508

main04112-72011i198508-198608

main04112-73040i198608-198704

main04112-73041i198704-198708

main04112-78010i198409-198607

main04112-78011i198607-198708

2 parts on this diagram · 3 diagrams in section
