HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

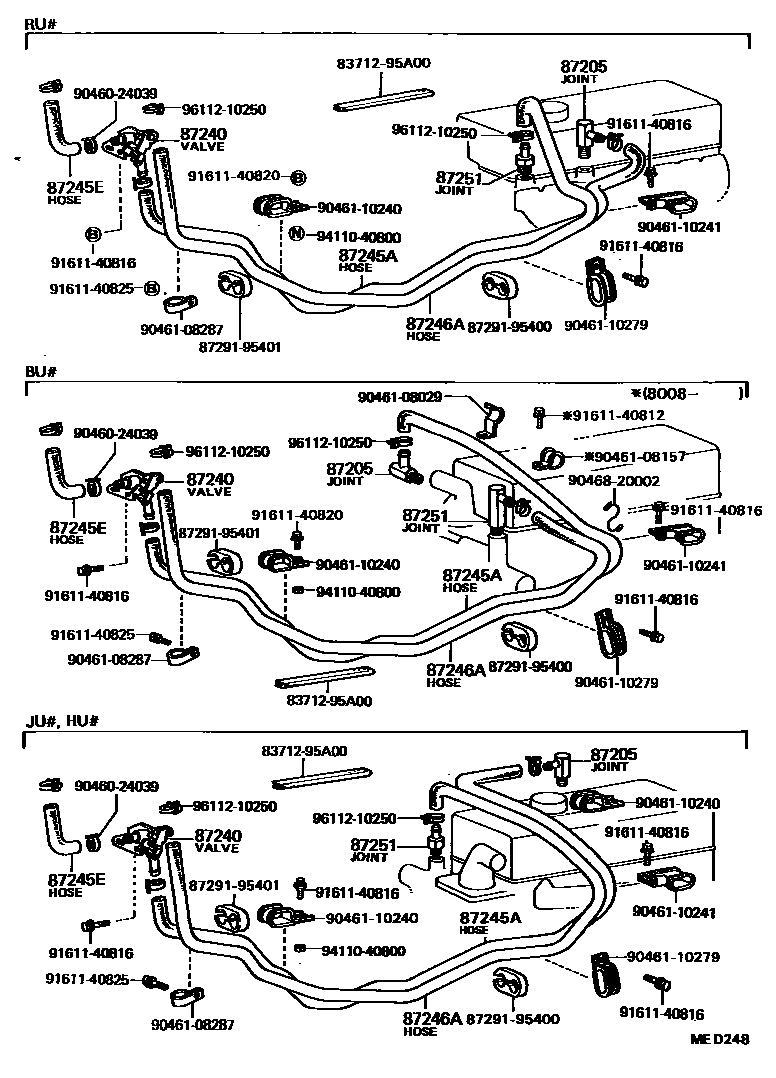

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30190iBU2#,3#,40,WU40,50197801-198411

main87251-36020iBU20,30197708-197801

main87251-36030iHU30,JU20197708-198104

main87251-60010iHU40,50198204-198408

main87251-95400iRU2#,30197708-198408

87240VALVE ASSY, HEATER WATER

main87240-95400iBU20,30,32,HU30,RU2#,30..RHD197708-198411

main87240-95401iBU2#,30,31,32,HU30,JU20,RU2#,30..LHD197708-198408

main87240-95403iBU36,40,HU40,50,WU40..RHD198204-198408

main87240-95404iBU36,40,WU40,50..LHD198302-198408

87245AHOSE, HEATER WATER, INLET A

main87245-95400iBU20,30,HU30..RHD197708-198008

main87245-95401iBU2#,30,31,32,HU30,JU20..LHD197708-198408

main87245-95402iRU2#,30..RHD197708-198408

main87245-95403iRU2#,30..LHD197708-198408

main87245-95415iBU36,40..RHD198204-198408

main87245-95420iBU20,30,32..RHD198008-198411

main87245-95426iHU40,50198204-198408

main87245-95428iBU36,40,WU40,50..LHD198302-198408

main87245-95432iWU40..RHD198304-198408

87245EHOSE, HEATER WATER, INLET E

main87245-95405iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

87246AHOSE, HEATER WATER, OUTLET A

main87245-95406iBU20,30..RHD197708-198008

main87245-95407iRU2#,30..RHD197708-198408

main87245-95408iHU30..RHD197708-198104

main87245-95409iBU2#,30,31,32..LHD197708-198408

main87245-95410iRU2#,30..LHD197708-198408

main87245-95411iHU30,JU20..LHD197708-198104

main87245-95414iBU36,40,HU40,50,WU40..RHD198204-198408

main87245-95419iBU20,30,32..RHD198008-198411

main87245-95430iBU36,40..LHD198302-198408

main87245-95434iWU40,50..LHD198304-198408

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-20070iHU30,JU20197801-198007

main87251-30190iWU40,50198304-198408

main87251-30200iRU2#,30197801-198007

main87251-95400iBU2#,30197708-198008

main87251-95401iBU2#,3#,40198008-198411

8371295A00

main83712-95A00

8729195400STAY, HEATER

main87291-95400

8729195401STAY, HEATER

main87291-95401

9046024039

main90460-24039

9046108029

main90461-08029

9046108157

main90461-08157

9046108287

main90461-08287

9046110240

main90461-10240

9046110241

main90461-10241

9046110279

main90461-10279

9046820002

main90468-20002

9161140812

main91611-40812

9161140816

main91611-40816

9161140820

main91611-40820

9161140825

main91611-40825

9411040800

main94110-40800

9611210250

main96112-10250

23 parts on this diagram · 5 diagrams in section
