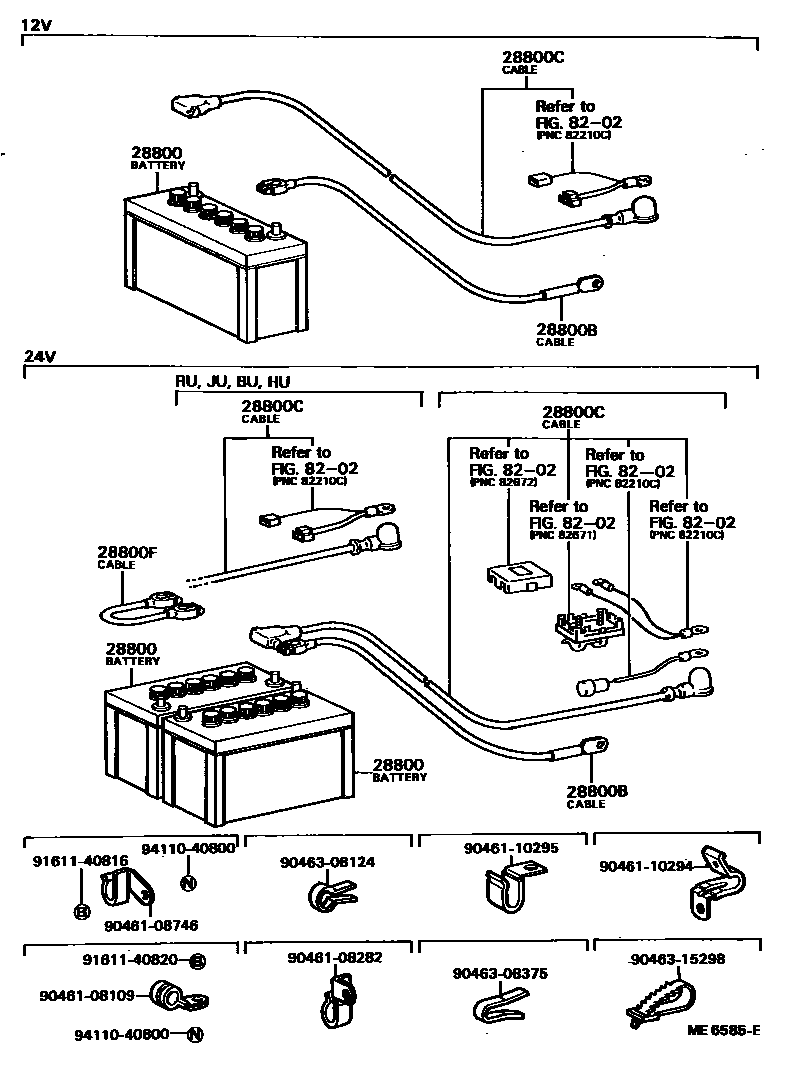

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26040i5R..RU2#,30..GEN197708-198408

34B19L,NS40ZAL

main28800-33111×2iB..BU20,25,30..LHD..5H..WT..(GEN,GHI)198104-198408

55D26R,N50Z

main28800-42010×2iB..BU20,30..T3..EUR197803-197810

75D31L,N70ZL,GS

main28800-46011×2iB,2J..BU2#,30,JU20197708-197904

75D31R,N70Z,GS

main28800-46012×2iB..BU20,25,30..LHD..5H..WT198204-198408

75D31R,N70Z

main28800-46020iB,2B,3B,2H,1W..BU20,25,3#,40,HU40,50,WU40,50..(DMP,TR)..(ARL,GEN,GHI)198204-198411

105E41R,N100Z

28800BCABLE, BATTERY TO GROUND

main90982-02033i5R..RU20,30..TR..GEN197708-198408

12V L=240,NS40ZAL

main90982-02065iB..BU25197803-198408

12V,L=470

main90982-02139iB,3B..BU23,30,32; B..BU20..TS198302-198411

12V,L=350

main90982-02140iB,2J..BU20,JU20..V..EUR197708-198008

24V,L=580

main90982-02141i5R..RU25..GEN197708-198408

12V,L=350,NS40ZAL

main90982-02147iB..BU20..TB198302-198408

main90982-02154i3B..BU36198302-198408

12V,L=750

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-95400i3B..BU36,40198204-198408

12V,L=990

main82021-95401i2H..HU40,50198204-198408

main82021-95411i1W..WU40,50198304-198408

12V

main82021-95412i1W..WU40..LHD198304-198408

24V

main90982-01226i5R..RU20,30..TR; 5R..RU20..HRF,SRF197708-198408

12V,L=1600,N50Z

main90982-01229iB..BU20..LHD..V197708-197811

12V,24V,L=1800

main90982-01231i5R..RU25197803-198408

12V,L=1700,N50Z

main90982-01234i2J..JU20..TS197708-197904

24V,L=1950

main90982-01235iB..BU20,30..TR..(ARL,GEN)197708-198008

12V,L=980

main90982-01236iH..HU30197708-198104

12V,L=650

main90982-01237i5R..RU20..LHD..(HRF,SRF); 5R..RU25..GEN197708-198408

12V,L=1550,NS40ZAL

main90982-01238i5R..RU20,30..TR..GEN; 5R..RU20..RHD..SRF197708-198408

12V,L=1350,NS40ZAL

main90982-01256i2J..JU20..HRF; B..BU20..RHD..SRF197708-197811

12V,L=850; 24V,L=850,N70Z

main90982-01265iB..BU20,30..T3..EUR197803-198008

24V,L=940

main90982-01266iB..BU20..V..EUR197811-198008

24V,L=1800

main90982-01310i2J..JU20..HRF197811-197904

24V,L=850,N70Z

main90982-01356i3B..BU40..LHD198302-198408

24V,L=950

main90982-01357iB..BU20,30..EUR198008-198104

24V,L=940

main90982-01358iB,2B,3B..BU3#..GEN,GHI;B..BU20..TS..(ARL,GEN)198008-198204

12V,L=980

main90982-01359iB..BU30..LHD..5H..(GEN,GHI)198104-198408

24V,W/SNORKEL AIR CLEANER

main90982-01360iB..BU20..LHD..(HRF,SRF); B..BU25;3B..BU32..ARL198008-198408

12V,L=1800

main90982-01361iB..BU25198104-198408

24V,L=1800

main90982-01366i2B..BU31198204-198408

main90982-01374iB..BU20..RHD..SRF198008-198408

12V,L=850

28800FCABLE, BATTERY TO BATTERY

main90982-03006iB,2J..BU20,30,JU20..T3..EUR197810-198104

L=140

main90982-03010iB,2J..BU20,JU20..V..EUR197708-198008

L=370

main90982-03011iB..BU20,30..T3..EUR197803-197810

L=150

8202WIRING & CLAMP

→ Go to FIG 82-02

9046108109

main90461-08109

9046108282

main90461-08282

9046108746

main90461-08746

9046110294

main90461-10294

9046110295

main90461-10295

9046308124

main90463-08124

9046308375

main90463-08375

9046315298

main90463-15298

9161140816

main91611-40816

9161140820

main91611-40820

9411040800

main94110-40800

16 parts on this diagram · 1 diagram in section
