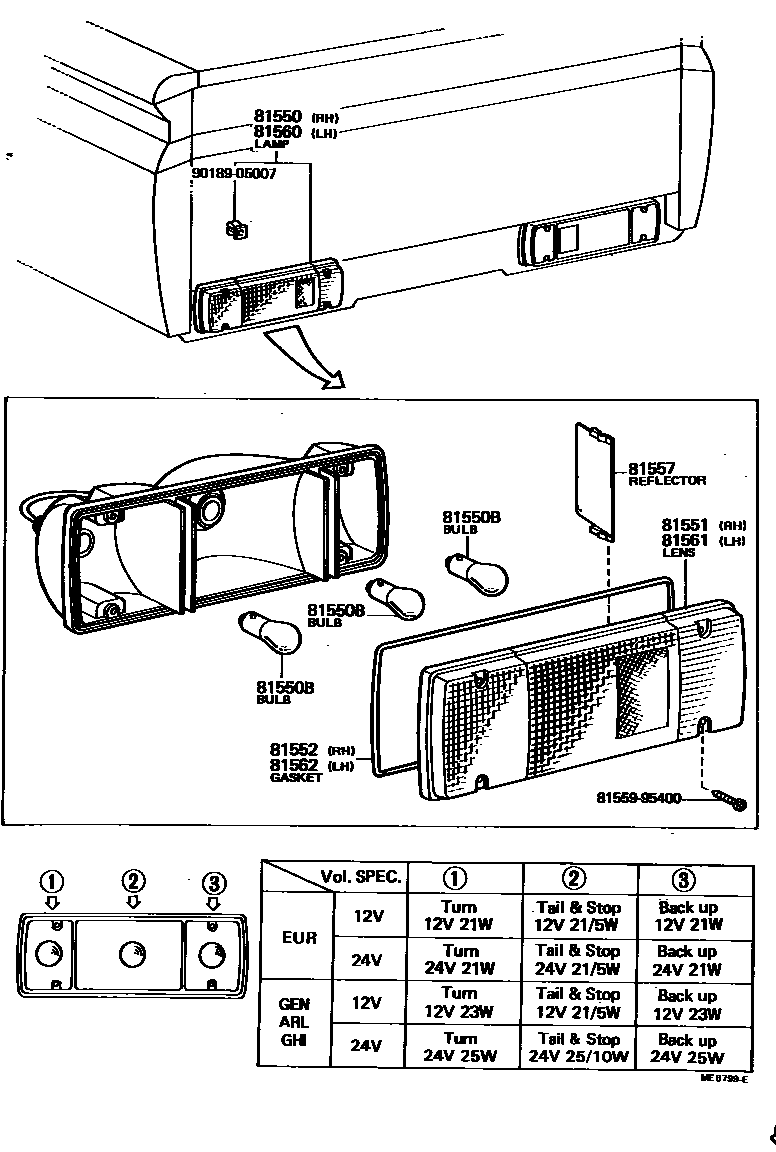

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39455iBU20,25,30..LHD..5H..WT..(GEN,GHI)198104-198408

24V

main81550-39465iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)197708-198411

12V

main81550-39475iRU20,30..EUR197904-198408

12V

main81550-39485iBU20,30,JU20..T3..EUR197708-198408

24V

main81550-92607iBU20,RU20..(HRF,SRF)..GEN197708-198408

12V

main81550-92629iBU20,JU20..V..EUR197708-198008

24V

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014×4iBU20,30,JU20..EUR197708-198408

24V 21W,24V 21W

main90981-16015×2iBU20,30,JU20..EUR197708-198408

24V 21/5W,24V 21/5W

main90981-16021×2iBU20,25,30..LHD..5H..WT..(GEN,GHI)198104-198408

24V 25/10W,24V 25/10W

main99132-11210×4iRU20,30..EUR197708-198408

12V 21W,12V 21W

main99132-11230×4iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI197708-198411

12V 23W,12V 23W

main99132-21210×2iRU20,30..ARL197904-198408

12V 21/5W,12V 21/5W

main99134-11250×4iBU20,25,30..LHD..5H..WT..(GEN,GHI)198104-198408

24V 25W,24V 25W

81551LENS, REAR COMBINATION LAMP, RH

main81551-92605iBU20,RU20..(HRF,SRF)..GEN197708-198408

AMBER-RED-CLEAR

main81551-92629iBU20,JU20..V..EUR197708-198008

AMBER-RED-CLEAR

main81551-95400iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)197708-198411

AMBER-RED-CLEAR

main81551-95403iBU20,30,JU20,RU20,30..TR..EUR197708-198408

AMBER-RED-CLEAR

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

81557REFLECTOR, REAR COMBINATION LAMP REFLEX

main81557-95403×2iBU20,30,JU20,RU20,30..EUR197708-198008

81560LAMP ASSY, REAR COMBINATION, LH

main81550-92607iBU20,RU20..(HRF,SRF)..GEN197708-198408

12V

main81550-92629iBU20,JU20..V..EUR197708-198008

24V

main81560-39425iBU20,25,30..LHD..5H..WT..(GEN,GHI)198104-198408

24V

main81560-39435iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)197708-198411

12V

main81560-39445iRU20,30..EUR197904-198408

12V

main81560-39455iBU20,30,JU20..T3..EUR197708-198408

24V

81561LENS, REAR COMBINATION LAMP, LH

main81551-92605iBU20,RU20..(HRF,SRF)..GEN197708-198408

AMBER-RED-CLEAR

main81551-92629iBU20,JU20..V..EUR197708-198008

AMBER-RED-CLEAR

main81561-95400iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..(DMP,TR)..(ARL,GEN,GHI)197708-198411

AMBER-RED-CLEAR

main81561-95403iBU20,30,JU20,RU20,30..TR..EUR197708-198408

AMBER-RED-CLEAR

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

8159995400

main81599-95400

9018905007

main90189-05007

10 parts on this diagram · 2 diagrams in section
